Trim Height Specifications
WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

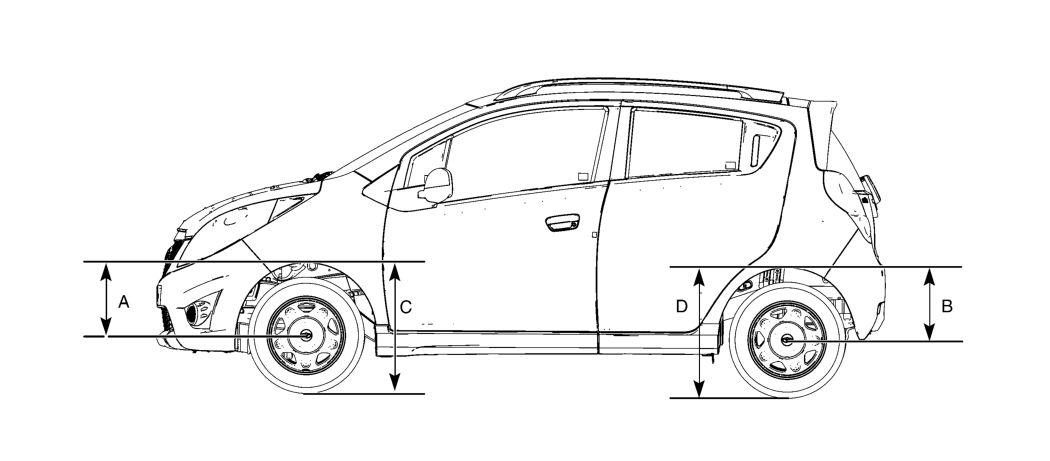

| Transmission | Suspension Height mm (in) | Trim Height mm (in) (155/70 R14) | ||
|---|---|---|---|---|
| Front Suspension Height 'A' |
Rear Suspension Height 'B' |
Front Trim Height 'C' |
Rear Trim Height 'D' |
|
| Manual T/M | 358.1 mm (14.10 in) | 357.2 mm (14.06 in) | 625.4 mm (24.62 in) | 631.9 mm (24.88 in) |
| Automatic T/M | 358.1 mm (14.10 in) | 357.2 mm (14.06 in) | 625.0 mm (24.60 in) | 631.8 mm (24.87 in) |
| All measurements are for reference only and intended to be a guide. (Nominal curb weight) | ||||
