Installation Procedure

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

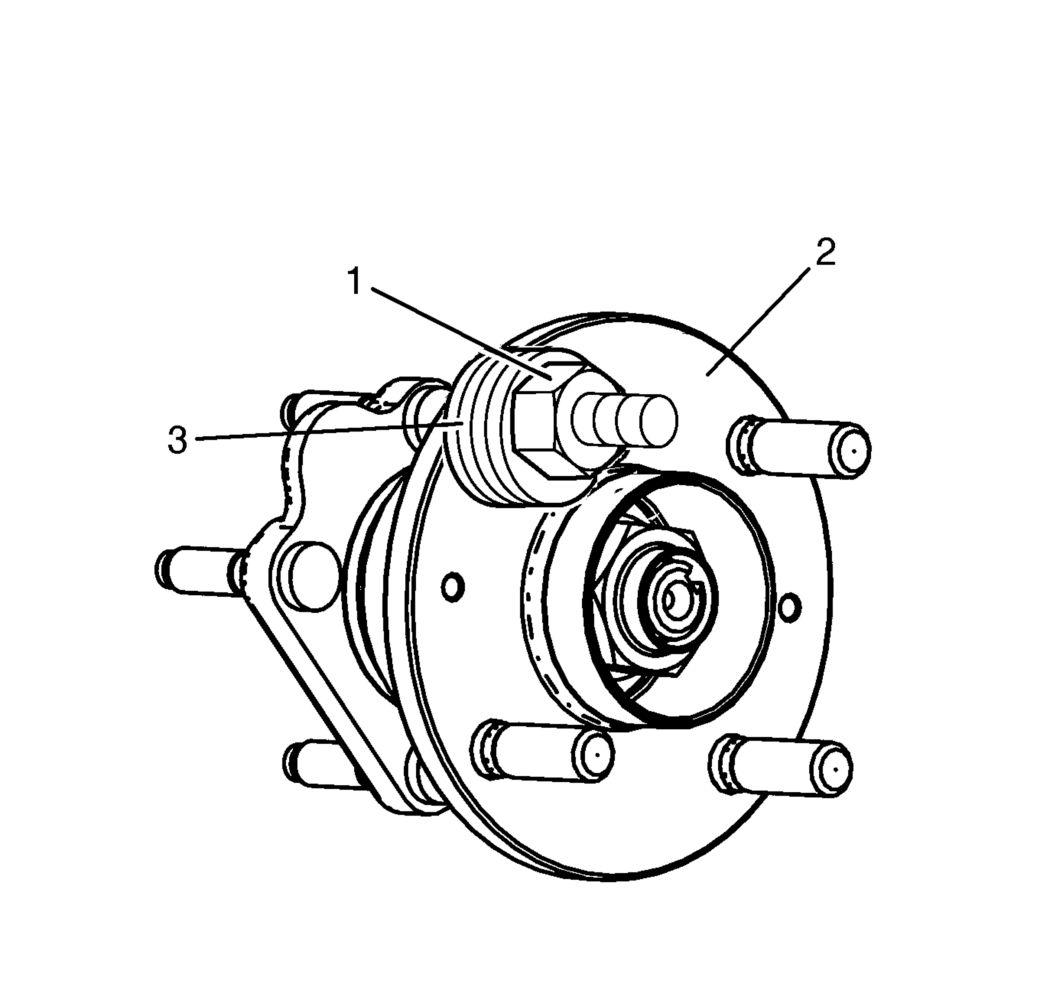

    Fig 1: Washers And Wheel Nut
    GM2327423Courtesy of GENERAL MOTORS COMPANY
  1. Install the NEW wheel stud into the wheel bearing/hub (2).
  2. Add enough washers (3) in order to draw the stud into the hub.
  3. Install and tighten the wheel nut (1) until the head of the wheel stud is fully seated against the back of the bearing hub flange (2).
  4. Install the wheel nut (1) and the washers (3).
  5. Install the wheel bearing/hub. Refer to Rear Wheel Bearing and Hub Replacement .
  6. Install the brake drum. Refer to Brake Drum Replacement .
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Lower the vehicle.
