Installation Procedure
WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

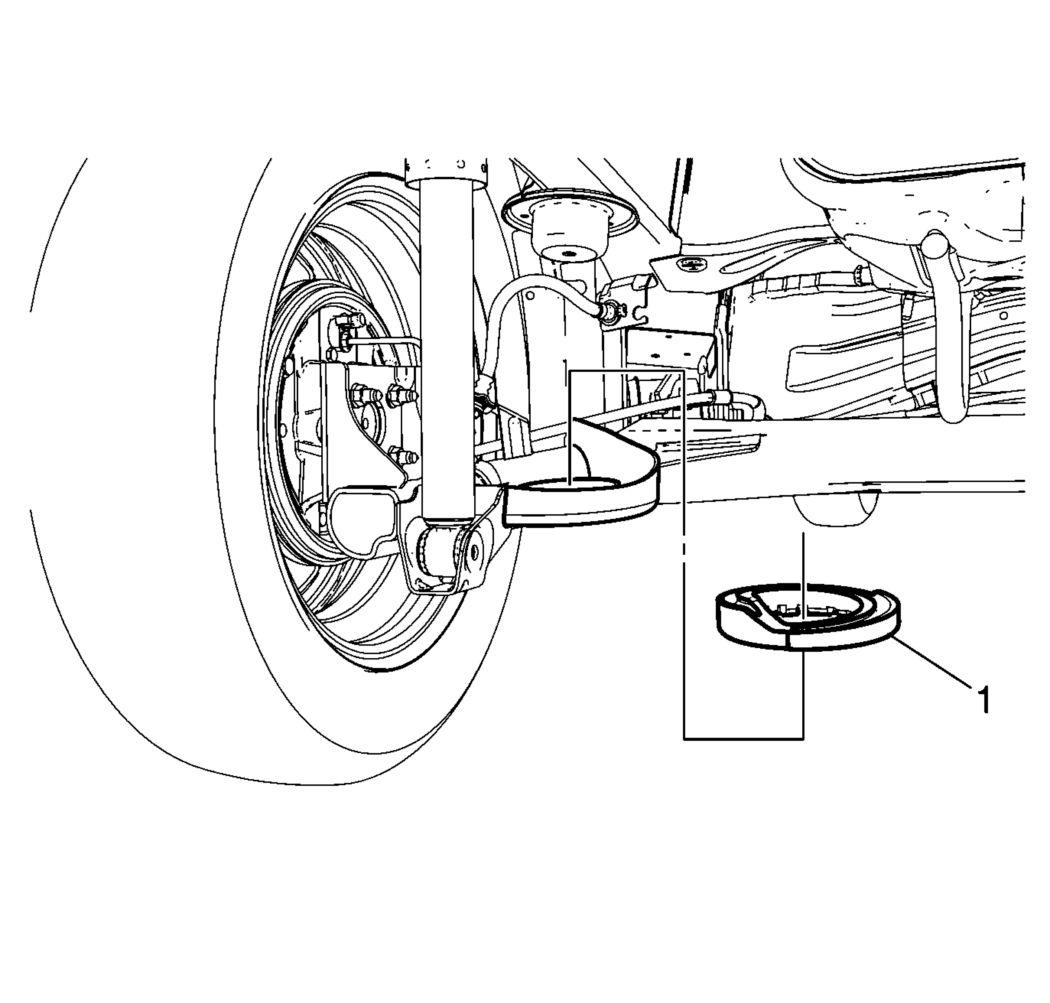

- Install the spring lower insulator (1) to the lower spring seat on the rear axle.

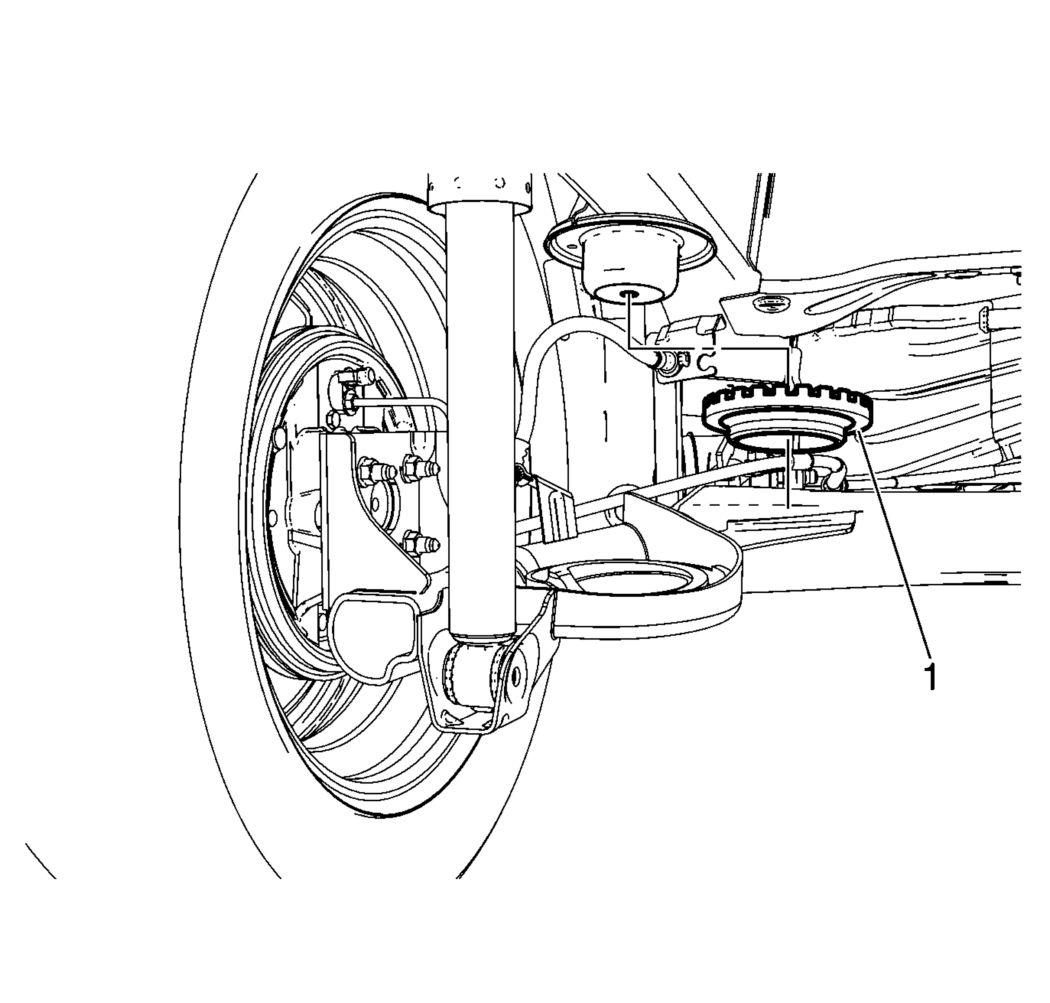

- Install the spring upper insulator (1) to the upper spring seat on the underbody rear side rail.

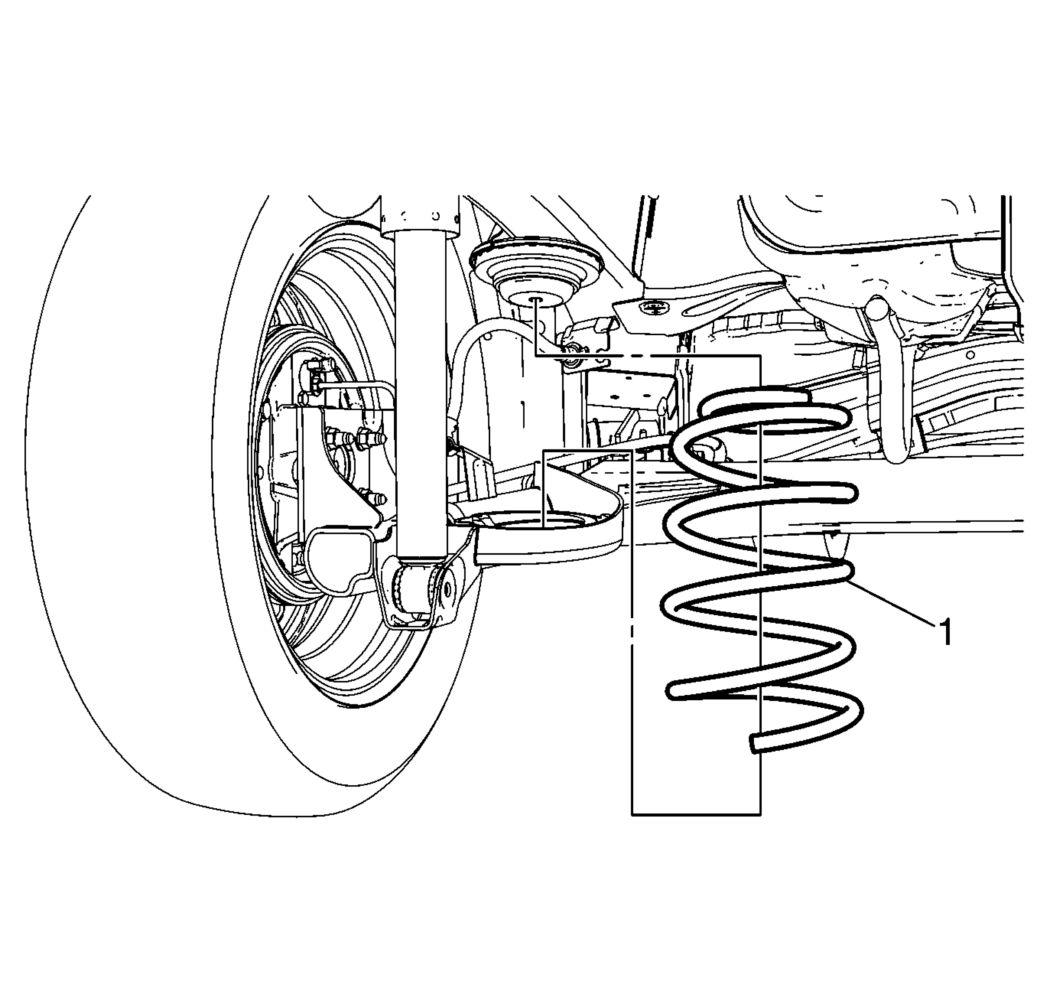

- Install the spring (1) to the vehicle, making sure the lower coil is seated into the lower spring seat.
- Raise the hydraulic jack stand in order to compress the rear spring.
- Install the shock absorber strut to rear axle retaining bolt. Refer to Shock Absorber Replacement .
- Raise the hydraulic jack stand in order to compress the opposite rear spring.
- Install the opposite shock absorber strut to rear axle retaining bolt. Refer to Shock Absorber Replacement .
- Remove the hydraulic jack stand.
- Lower the vehicle.
