Brake Fluid Level Indicator Switch Replacement
WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

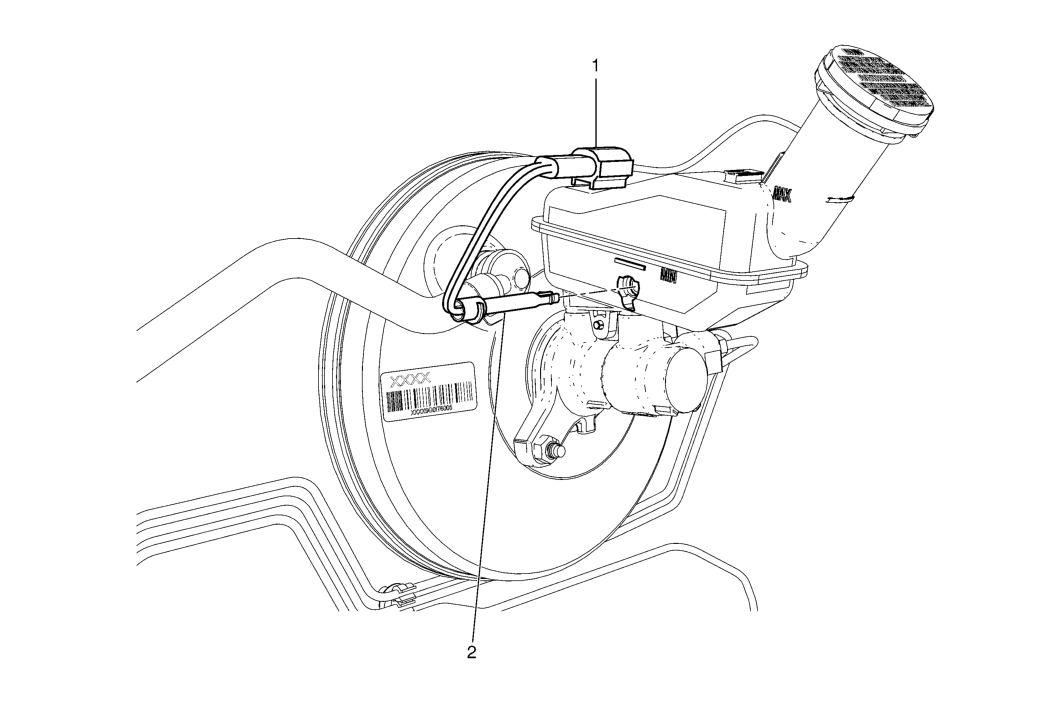

Courtesy of GENERAL MOTORS COMPANY Brake Fluid Level Indicator Switch Replacement
| Callout |
Component Name |
| 1 |
Brake Fluid Indicator Switch Connector |
| 2 |
Brake Fluid Level Indicator Switch
TIP:
Using needle nose pliers, carefully depress the retaining tab on the indicator switch and remove indicator switch from the reservoir. |
