Radiator Surge Tank Replacement
WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Surge Tank Replacement

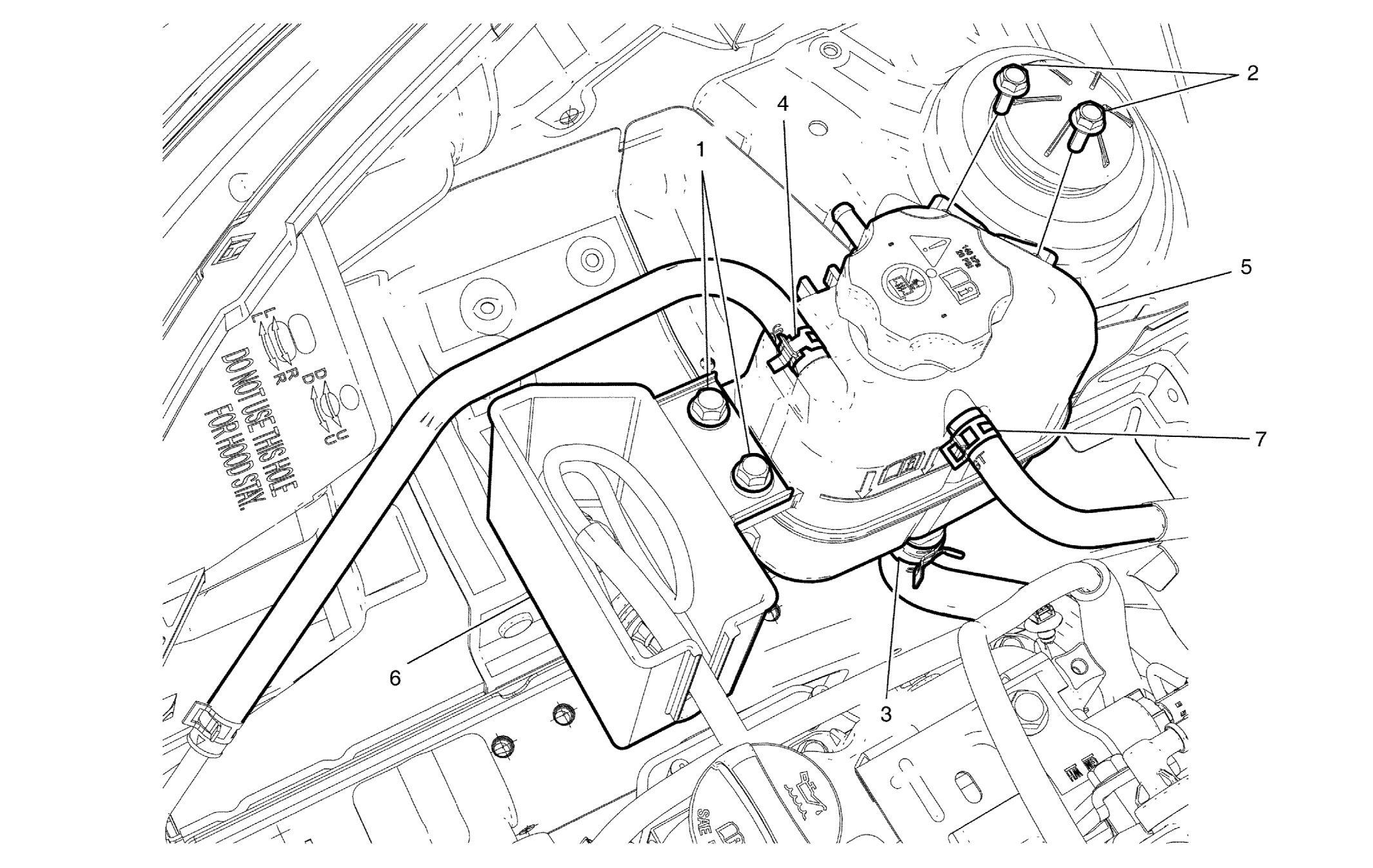

| Callout | Component Name |
|---|---|
| Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling . |
|
| 1 | Block Heater Connecting Plug Holder Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 8 (71 lb in) |
| 2 | Radiator Surge Tank Mounting Bolt (Qty: 2) Tighten 8 (71 lb in) |
| 3 | Radiator Surge Tank Outlet Hose & Clamp |
| 4 | Radiator Surge Tank Inlet Hose & Clamp |
| 5 | Radiator Surge Tank |
| 6 | Block Heater Connecting Plug Holder |
| 7 | Coolant Hose & Clamp |
