Radiator Inlet Hose Replacement

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

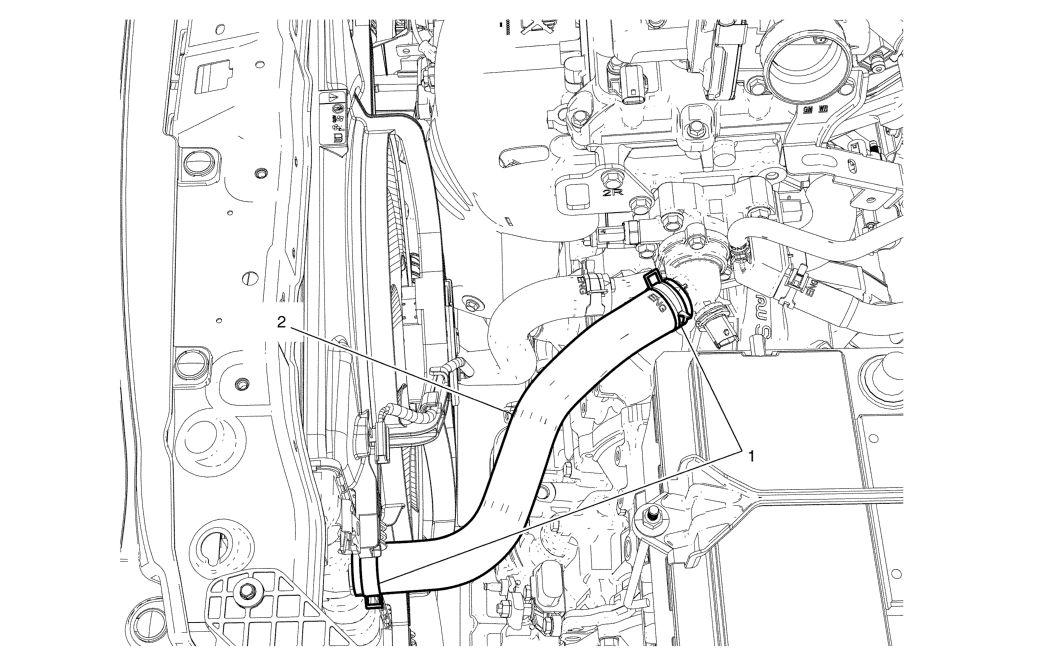

Fig 1: Radiator Inlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Drain the cooling system. Refer to Cooling System Draining and Filling .
1	Radiator Inlet Hose Clamp (Qty: 2) Procedure Loosen the radiator inlet hose clamp (1).
2	Radiator Inlet Hose

Callout

Component Name

Preliminary Procedures

Open the hood.
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Drain the cooling system. Refer to Cooling System Draining and Filling .

Radiator Inlet Hose Clamp (Qty: 2)
Procedure
Loosen the radiator inlet hose clamp (1).

Radiator Inlet Hose
