Installation Procedure

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

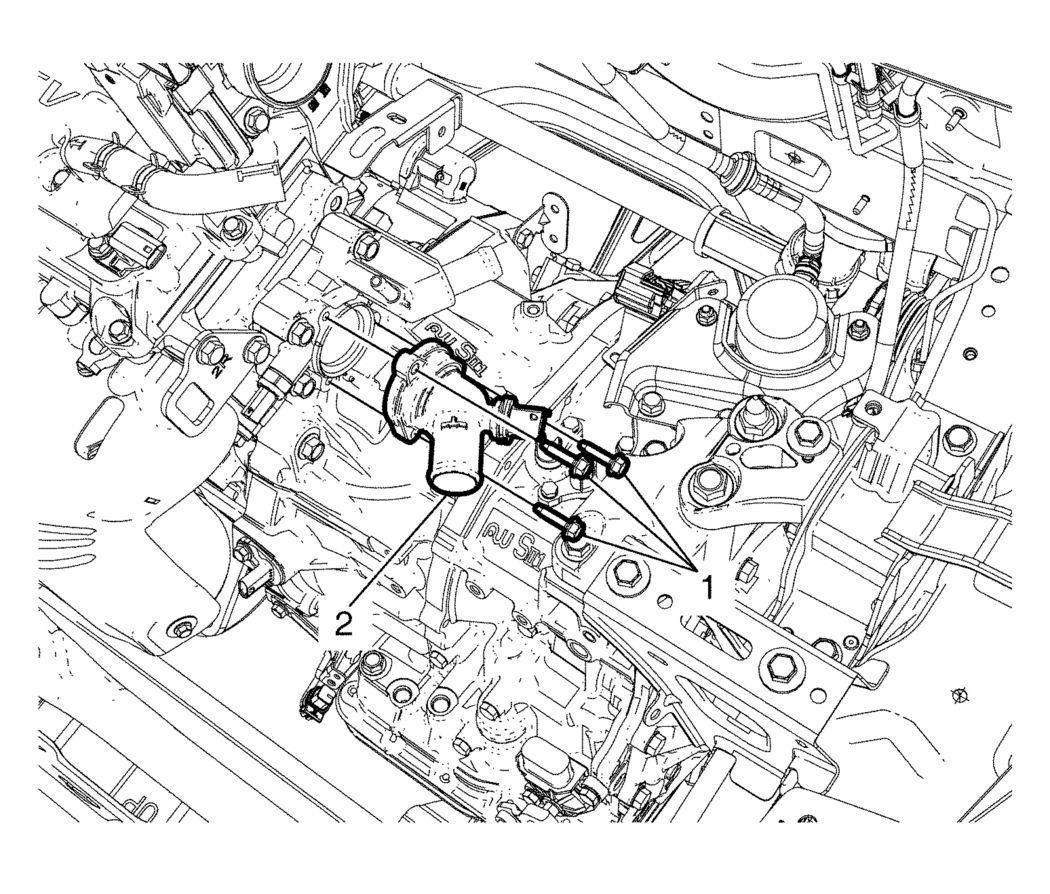

    Fig 1: Engine Coolant Thermostat Bolts
    GM2845096Courtesy of GENERAL MOTORS COMPANY
  1. Install the engine coolant thermostat assembly (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 3 engine coolant thermostat bolts (1) and tighten to 10 (89 lb in).

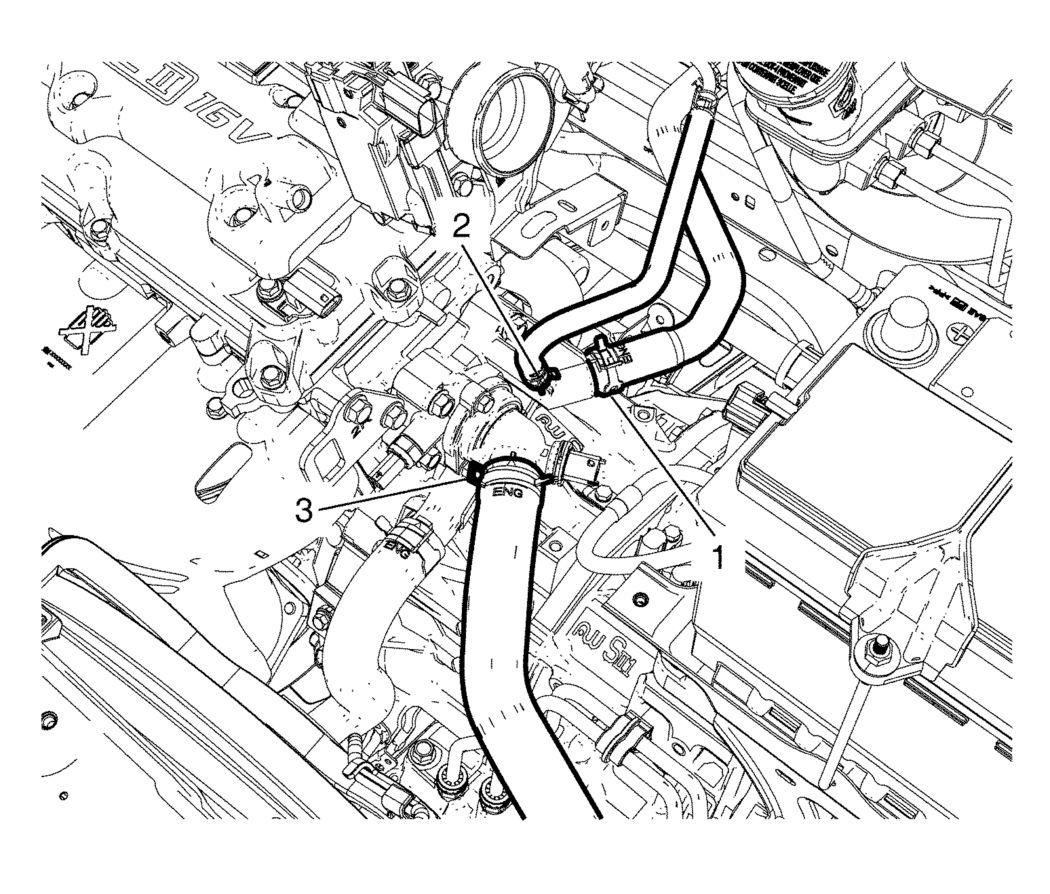

    3. Fig 2: Radiator Inlet Hose And Clamp
    GM2753067Courtesy of GENERAL MOTORS COMPANY
  3. Connect the electrical connector to the engine coolant thermostat heater connector.
  4. Connect the radiator inlet hose and clamp (3).
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  6. Fill the cooling system. Refer to Cooling System Draining and Filling .
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  8. Start the engine and check for coolant leaks.
  9. Close the hood.
