Engine Coolant Outlet Pipe Replacement

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

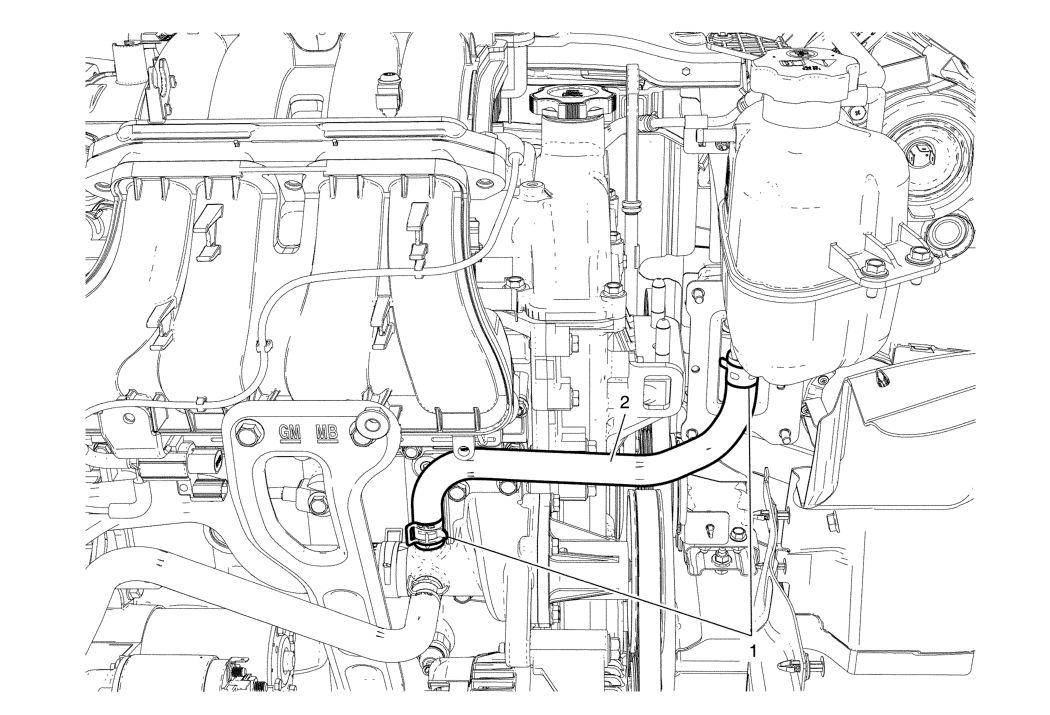

Fig 1: Engine Coolant Outlet Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the coolant from the cooling system, and add new coolant. Refer to Cooling System Draining and Filling .
1	Coolant Outlet Hose Clamp (Qty: 2) Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Coolant Outlet Hose
