Engine Coolant Fan Replacement

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

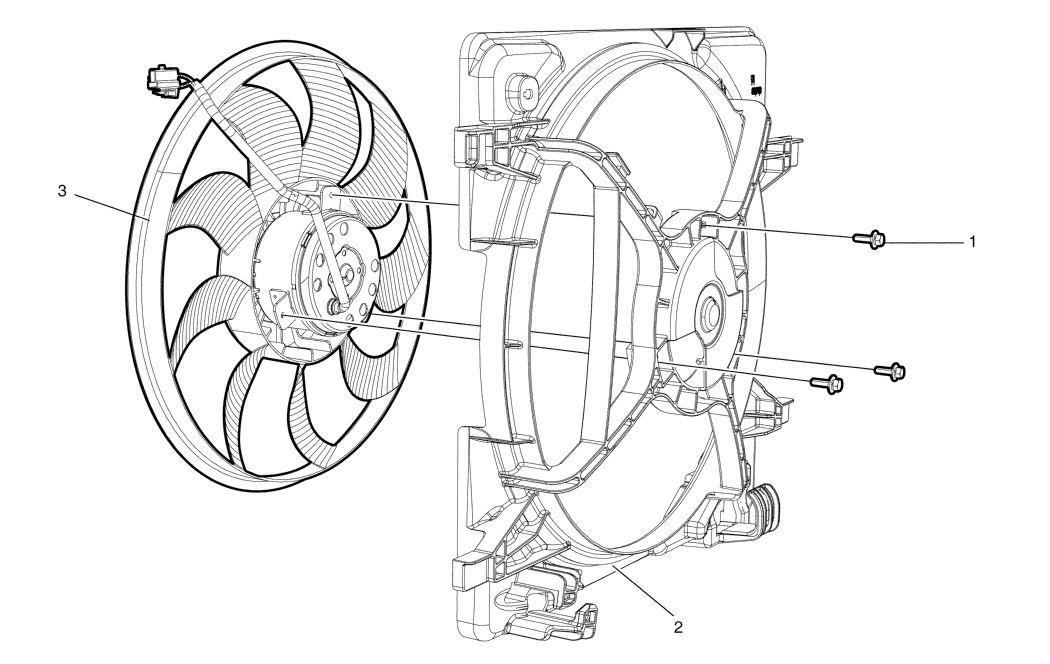

Fig 1: Engine Coolant Fan

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement . Disconnect the wiring harness plug of the engine cooling fan.
1	Engine Coolant Fan Bolt (Qty: 3) Procedure Remove the engine coolant fan bolts. Tighten 3 (27 lb in)
2	Engine Coolant Fan Shroud
3	Engine Coolant Fan
