Installation Procedure

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

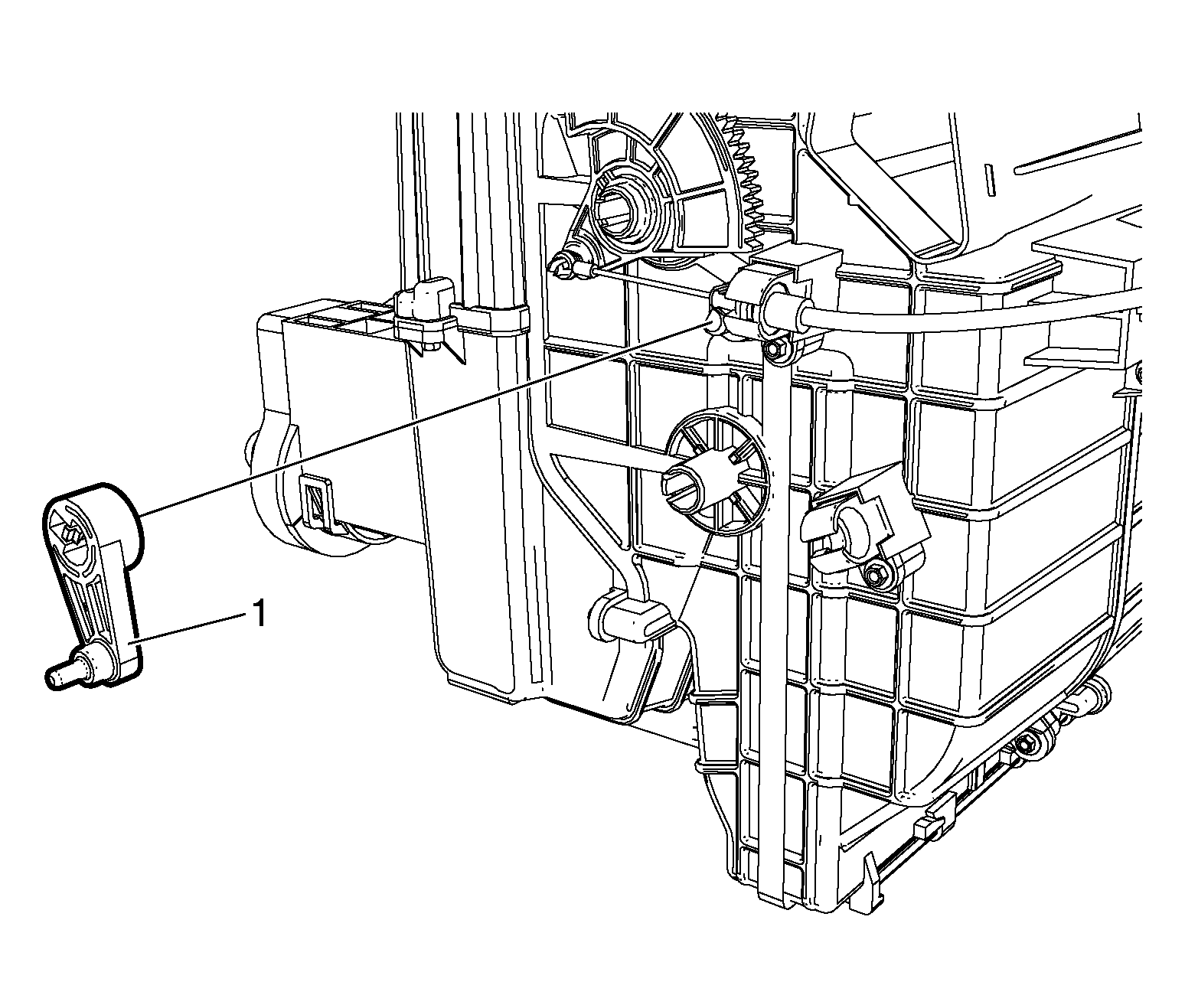

    Fig 1: Temperature Valve Link
    GM2754806Courtesy of GENERAL MOTORS COMPANY
  1. Install the temperature valve link.

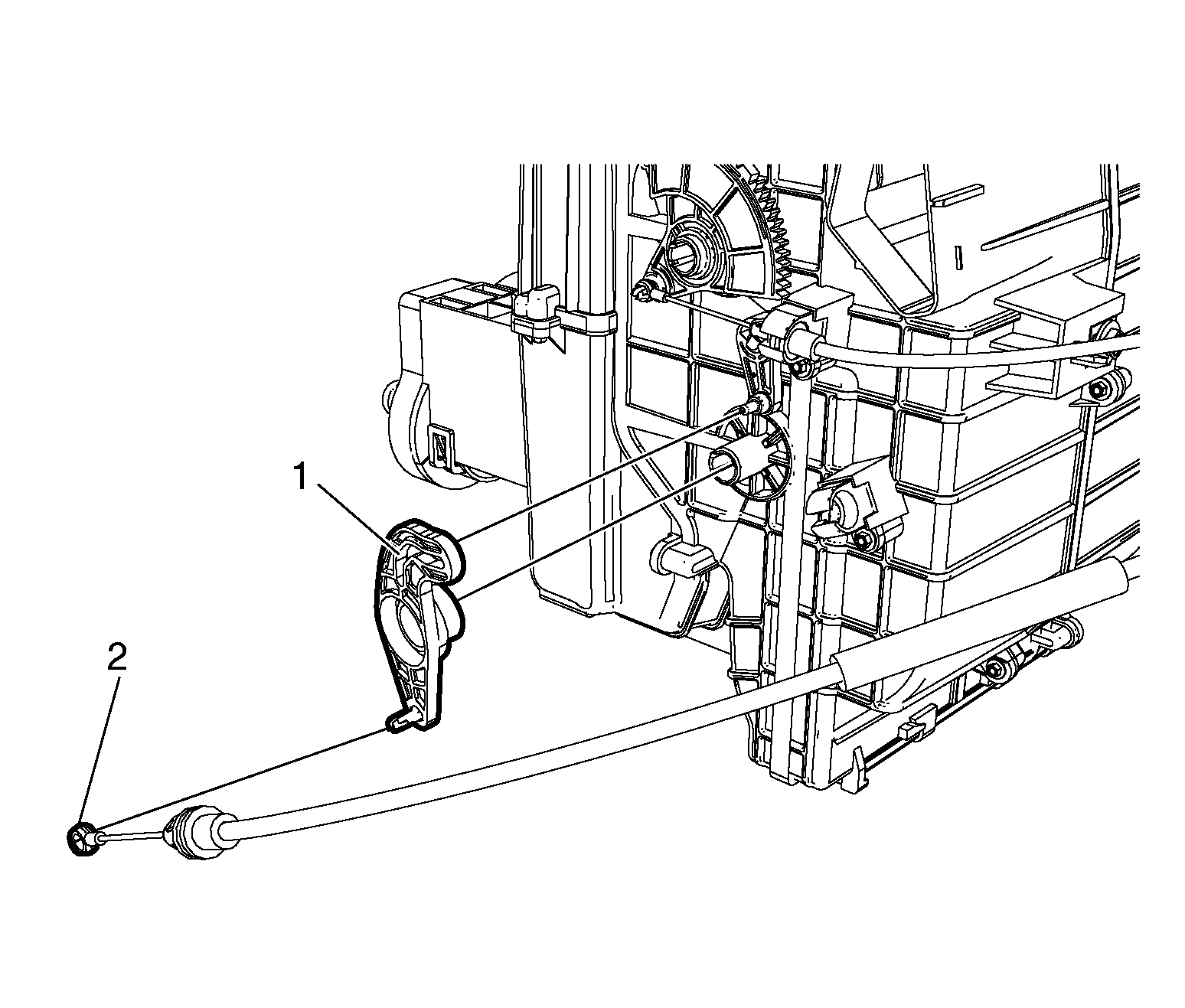

    2. Fig 2: Temperature Cable Link
    GM2754807Courtesy of GENERAL MOTORS COMPANY
  2. Install the temperature cable link (1).
  3. Connect the temperature control cable (2) to the A/C evaporator and blower module assembly.
  4. Install the left floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side (Left Hand Drive) .
