Temperature Control Cable Replacement

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

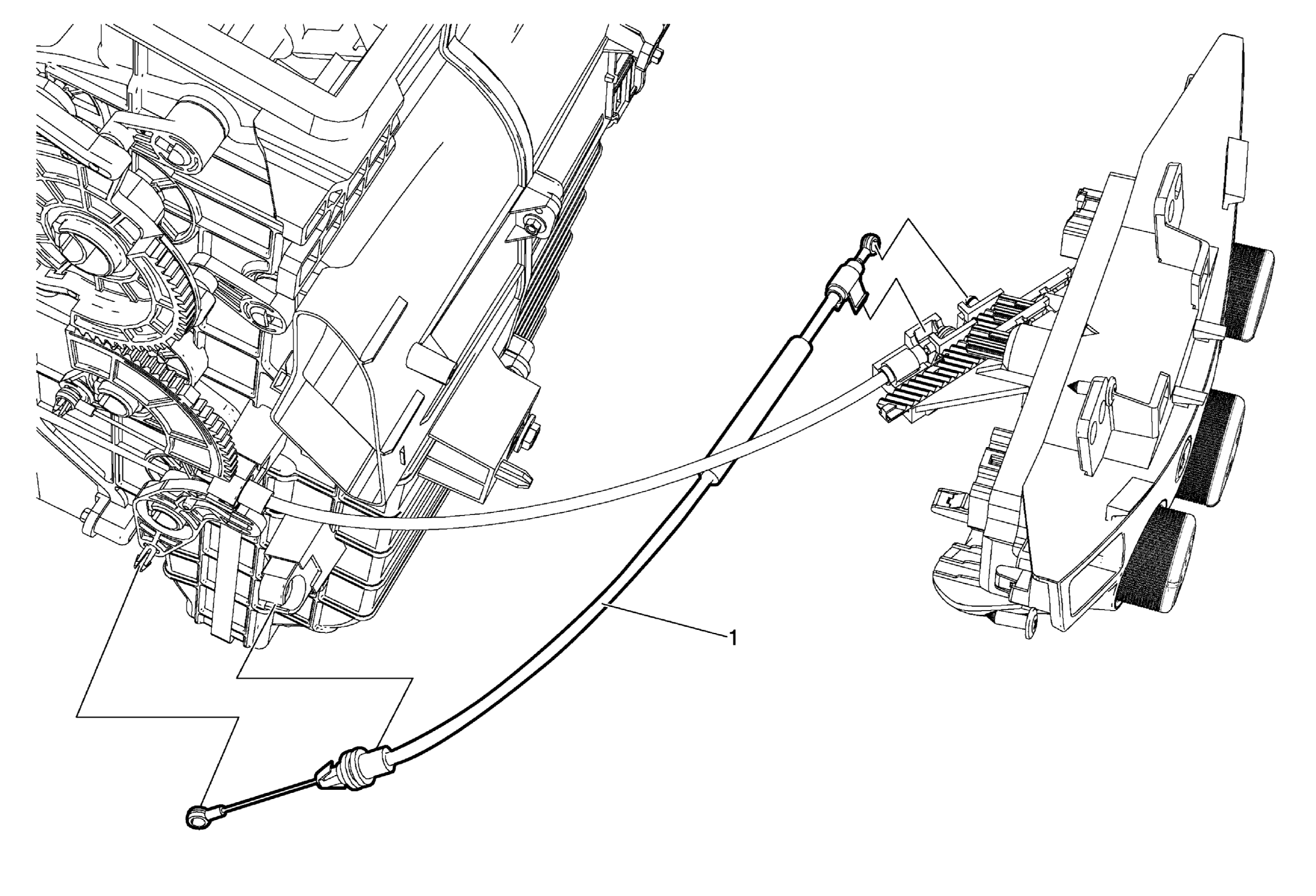

Fig 1: Temperature Control Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the temperature control cable from the heater and air conditioning (A/C) control. Refer to Heater and Air Conditioning Control Replacement (Left Hand Drive) , Heater and Air Conditioning Control Replacement (Right Hand Drive) .
1	Temperature Control Cable Procedure Disconnect the cable eyelet from the temperature valve link. Disconnect the temperature control cable from the temperature control cable retainer.

Callout

Component Name

Preliminary Procedure
Disconnect the temperature control cable from the heater and air conditioning (A/C) control. Refer to Heater and Air Conditioning Control Replacement (Left Hand Drive) , Heater and Air Conditioning Control Replacement (Right Hand Drive) .

Temperature Control Cable

Procedure

Disconnect the cable eyelet from the temperature valve link.
Disconnect the temperature control cable from the temperature control cable retainer.
