Removal Procedure

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side (Left Hand Drive) .
  2. Disconnect the stop lamp switch connector.

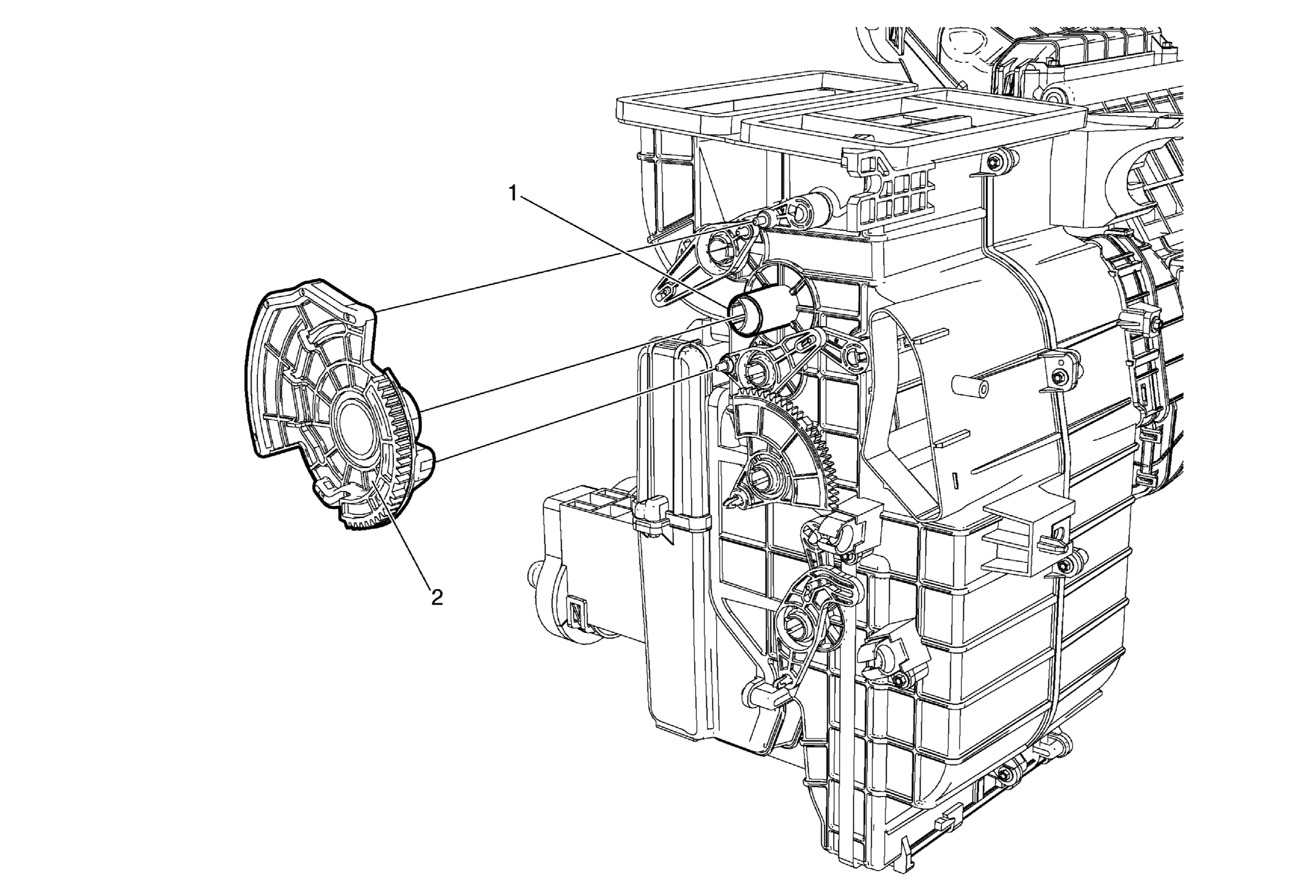

    3. Fig 1: Mode Valve Link And Locking Tap
    GM2754795Courtesy of GENERAL MOTORS COMPANY
  3. Remove the mode valve link (2) pressing the locking tap (1) of module.
