Inside Air Recirculating Control Cable Replacement (Right Hand Drive)

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

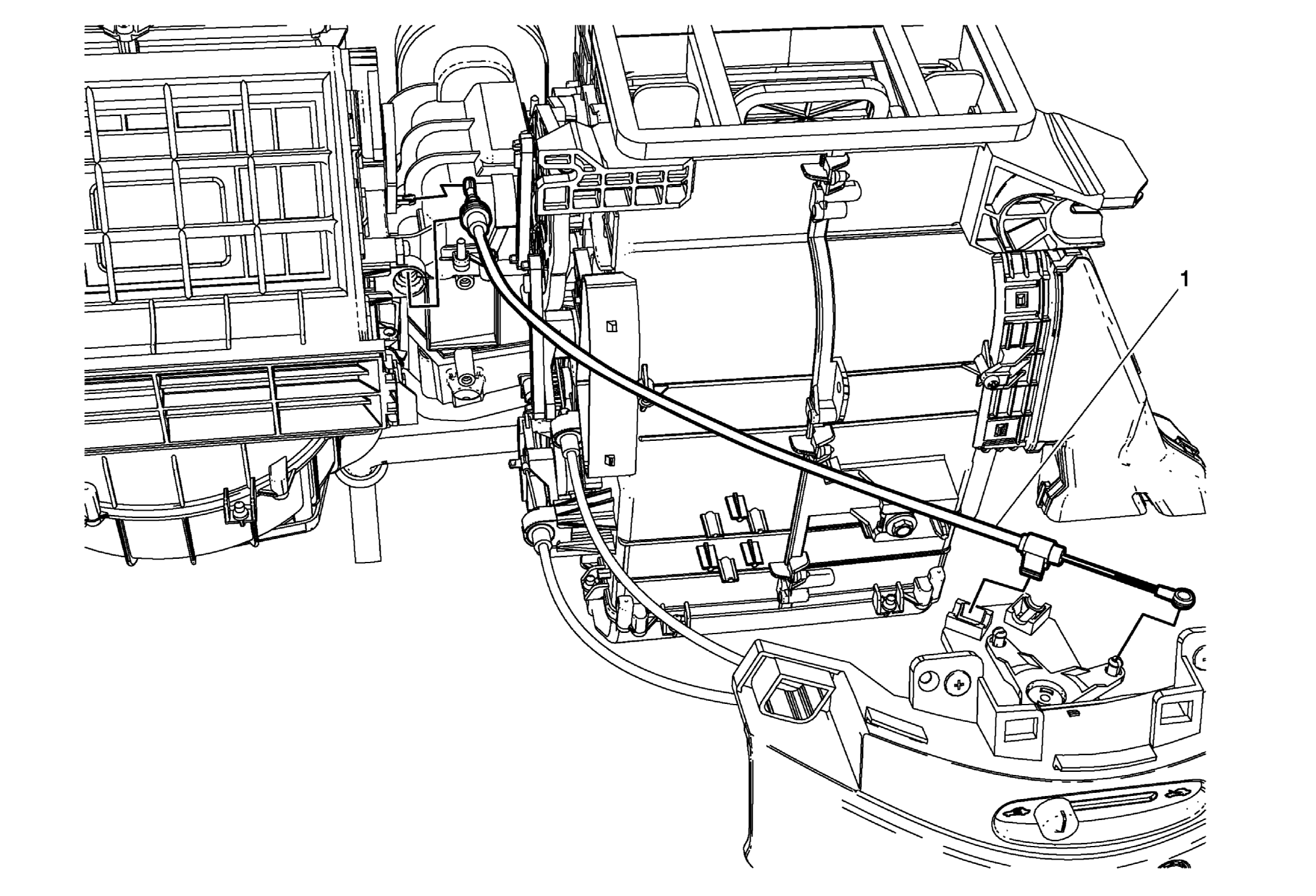

Fig 1: Inside Air Recirculating Control Cable (Right Hand Drive)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left side floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side (Left Hand Drive) . Disconnect the air inlet control cable from the heater and air conditioning (A/C) control. Refer to Heater and Air Conditioning Control Replacement (Left Hand Drive) , Heater and Air Conditioning Control Replacement (Right Hand Drive) .
1	Air Inlet Control Cable Procedure Disconnect the cable eyelet from the air inlet valve link. Disconnect the air inlet control cable from the air inlet control cable retainer.

Callout

Component Name

Preliminary Procedures

Remove the left side floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side (Left Hand Drive) .
Disconnect the air inlet control cable from the heater and air conditioning (A/C) control. Refer to Heater and Air Conditioning Control Replacement (Left Hand Drive) , Heater and Air Conditioning Control Replacement (Right Hand Drive) .

Air Inlet Control Cable

Procedure

Disconnect the cable eyelet from the air inlet valve link.
Disconnect the air inlet control cable from the air inlet control cable retainer.
