Inside Air Recirculating Control Cable Replacement (Left Hand Drive)

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

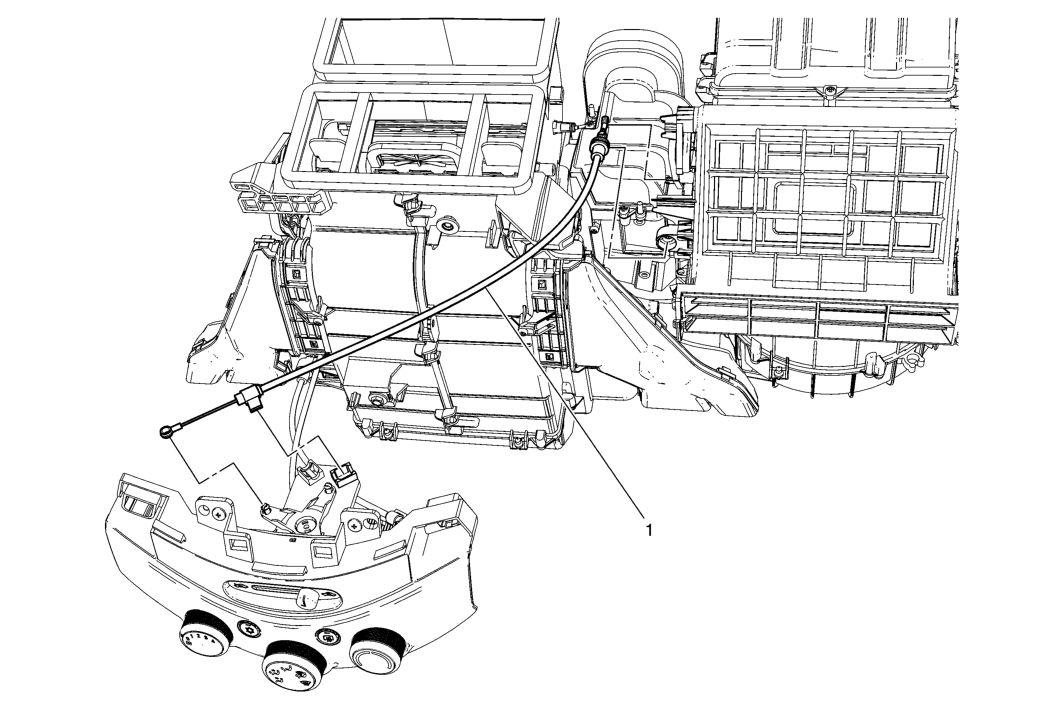

Fig 1: Inside Air Recirculating Control Cable (Left Hand Drive)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right side floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side . Disconnect the air inlet control cable from the heater and air conditioning (A/C) control. Refer to Mode Control Cable Replacement .
1	Air Inlet Control Cable Procedure Disconnect the cable eyelet from the air inlet valve link. Disconnect the air inlet control cable from the air inlet control cable retainer.

Callout

Component Name

Preliminary Procedure

Remove the right side floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side .
Disconnect the air inlet control cable from the heater and air conditioning (A/C) control. Refer to Mode Control Cable Replacement .

Air Inlet Control Cable

Procedure

Disconnect the cable eyelet from the air inlet valve link.
Disconnect the air inlet control cable from the air inlet control cable retainer.
