Ambient Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

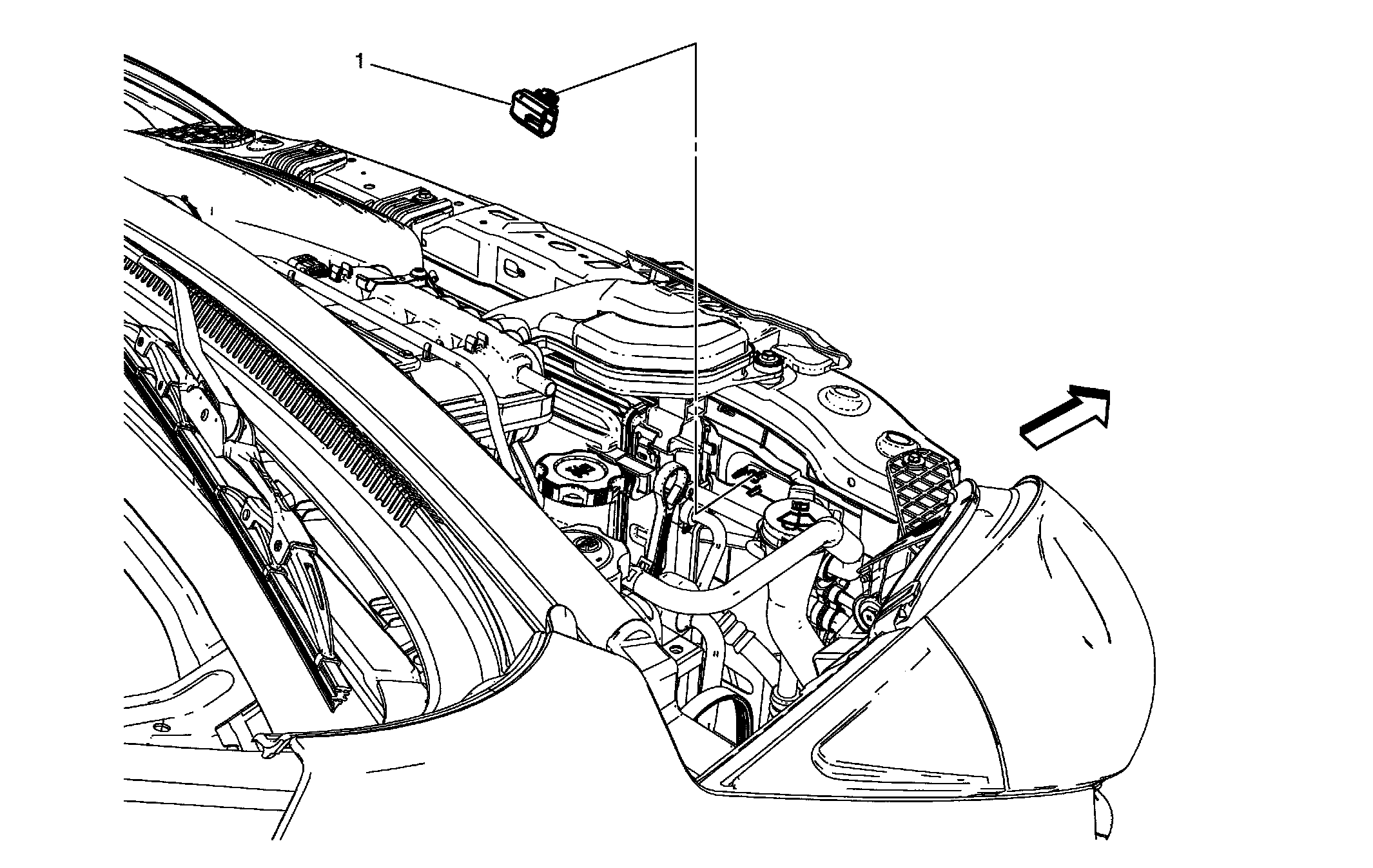

Fig 1: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Ambient Air Temperature Sensor Procedures Unsnap the ambient air temperature sensor and move it forward. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

Ambient Air Temperature Sensor

Procedures

Unsnap the ambient air temperature sensor and move it forward.
Disconnect the electrical connector.
