Assist Handle Replacement
WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Assist Handle Replacement

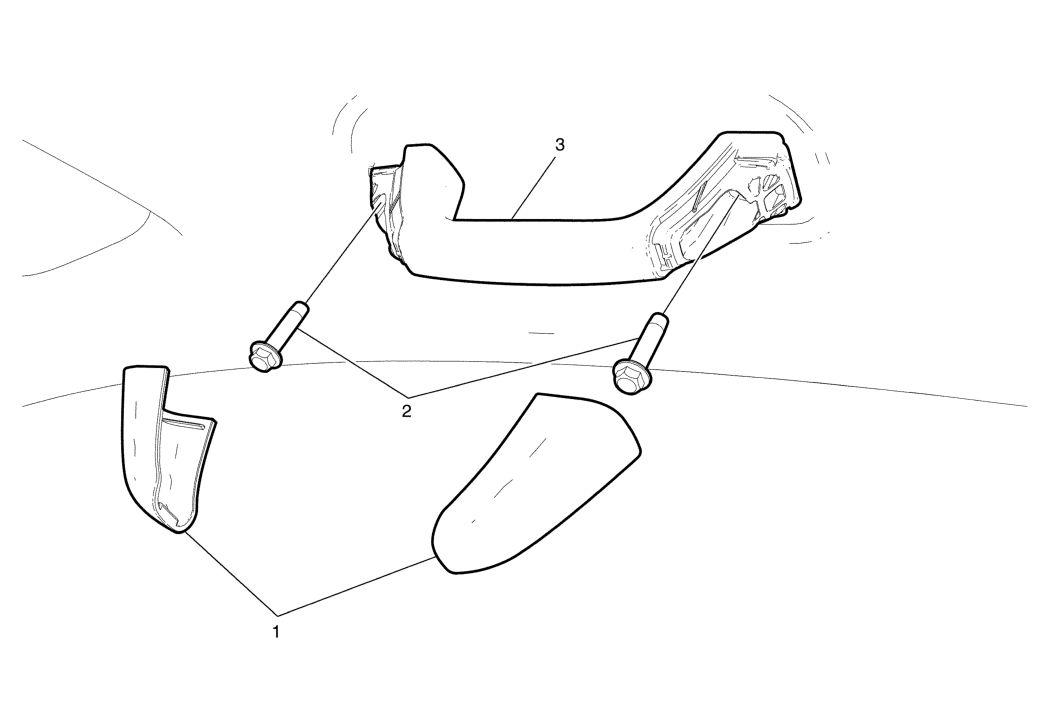

| Callout | Component Name |
|---|---|
| 1 | Assist Handle Bolt Cover |
| 2 | Assist Handle Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 3 | Assist Handle Assembly |
