Front Floor Console Replacement
WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Front Floor Console Replacement

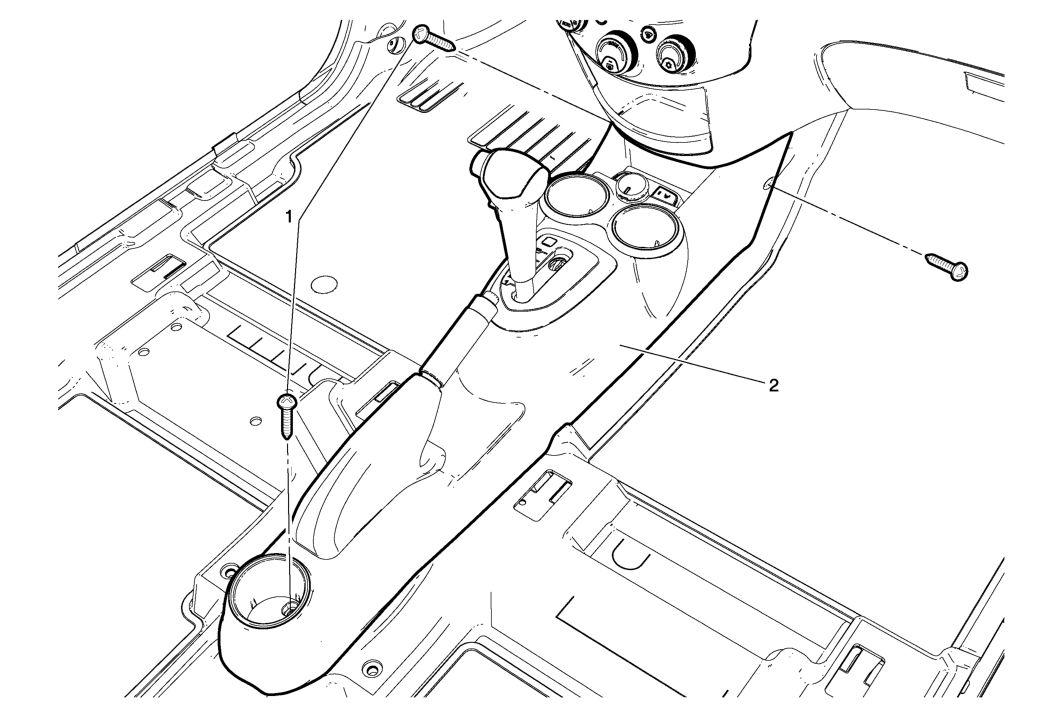

| Callout | Component Name |
|---|---|
| 1 | Floor Console Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (23 lb in) |
| 2 | Floor Console Assembly Procedure Disconnect the electrical connections. |
