High Speed GMLAN Bus 2 Wiring Schematics

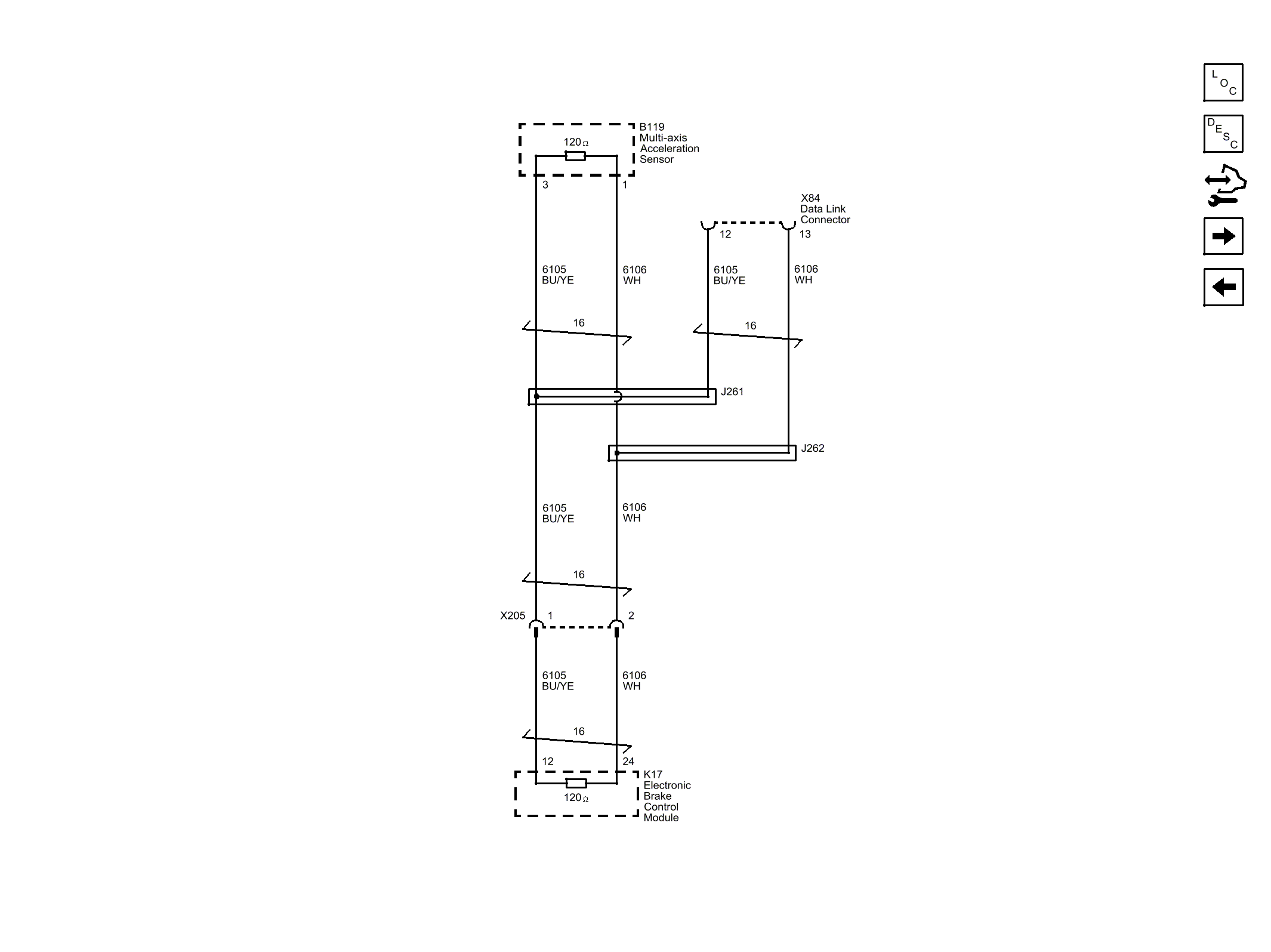

Fig 1: High Speed GMLAN Bus 2 Wiring Schematic

GM3273771

Courtesy of GENERAL MOTORS COMPANY
