Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
  3. Remove the high voltage disconnect circuit connector cover. Refer to High Voltage Disconnect Circuit Connector Cover Replacement .
  4. Remove the plenum front panel. Refer to Plenum Front Panel Replacement .
    5. Fig 1: Protective Cover
    GM2917974Courtesy of GENERAL MOTORS COMPANY
  5. Remove the protective cover (1) from the battery positive cable.
  6. Remove the battery positive cable clamp fastener (2) and detach the battery positive cable (3), from the battery post.
  7. Disconnect the connectors (4) from the battery positive cable.

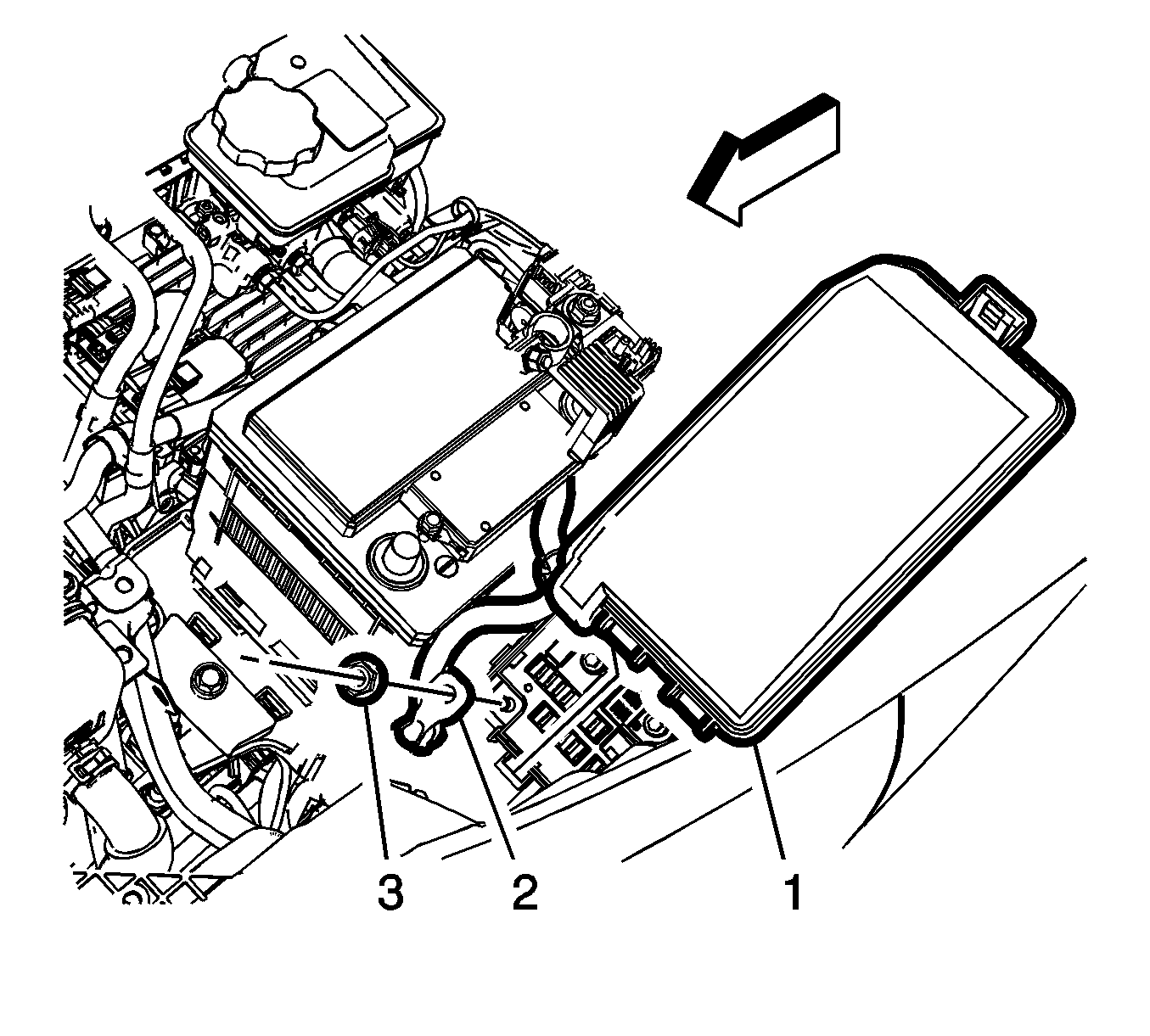

    8. Fig 2: Battery Positive Cable Fastener
    GM3213084Courtesy of GENERAL MOTORS COMPANY
  8. Remove the underhood fuse block cover (1) and set aside.
  9. Remove the battery positive cable fastener (3) and remove the battery positive cable (2) from the underhood fuse block stud.
    10. Fig 3: Battery Hold Down Retainer Fastener
    GM3213054Courtesy of GENERAL MOTORS COMPANY
  10. Remove the battery hold down retainer fastener (1) and remove the battery hold down retainer (2).
    11. Fig 4: Battery
    GM3213057Courtesy of GENERAL MOTORS COMPANY
  11. Remove the battery (1) from the engine compartment.

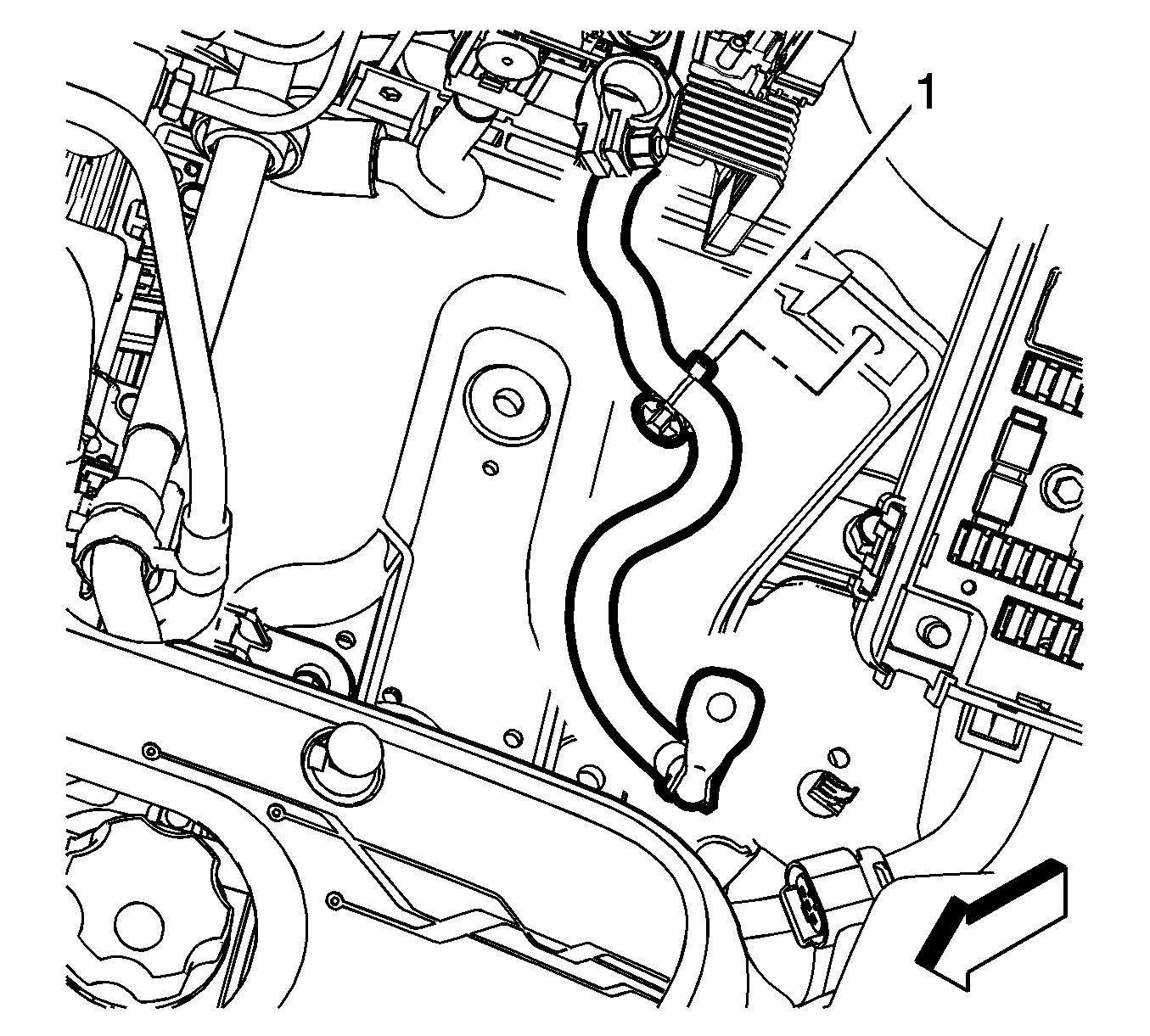

    12. Fig 5: Battery Positive Cable Retainer
    GM3213086Courtesy of GENERAL MOTORS COMPANY
  12. Detach the battery positive cable retainer (1) from the battery tray.
    13. Fig 6: ECM Module Bracket Fastener And Release Retaining Tab
    GM3232225Courtesy of GENERAL MOTORS COMPANY
  13. Remove the ECM module bracket fastener (1) and release the retaining tab (2). Refer to Engine Control Module Bracket Replacement .

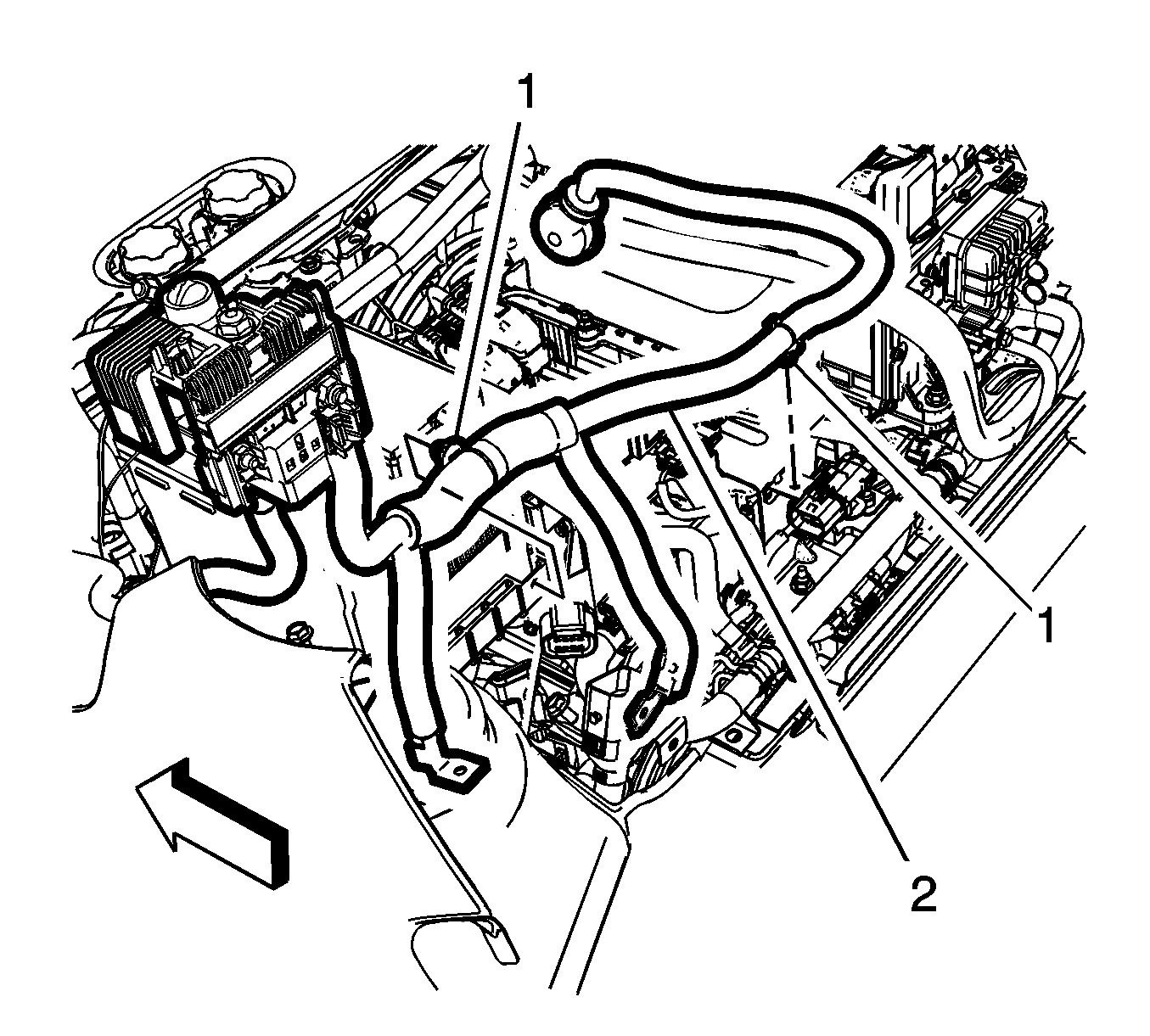

    14. Fig 7: Battery Positive Cable Retainers
    GM2917965Courtesy of GENERAL MOTORS COMPANY
  14. Detach the battery positive cable retainers (1) from the battery tray and bracket.
  15. Remove the battery tray. Refer to Battery Tray Replacement .
    16. Fig 8: Chassis Frame Ground Fastener

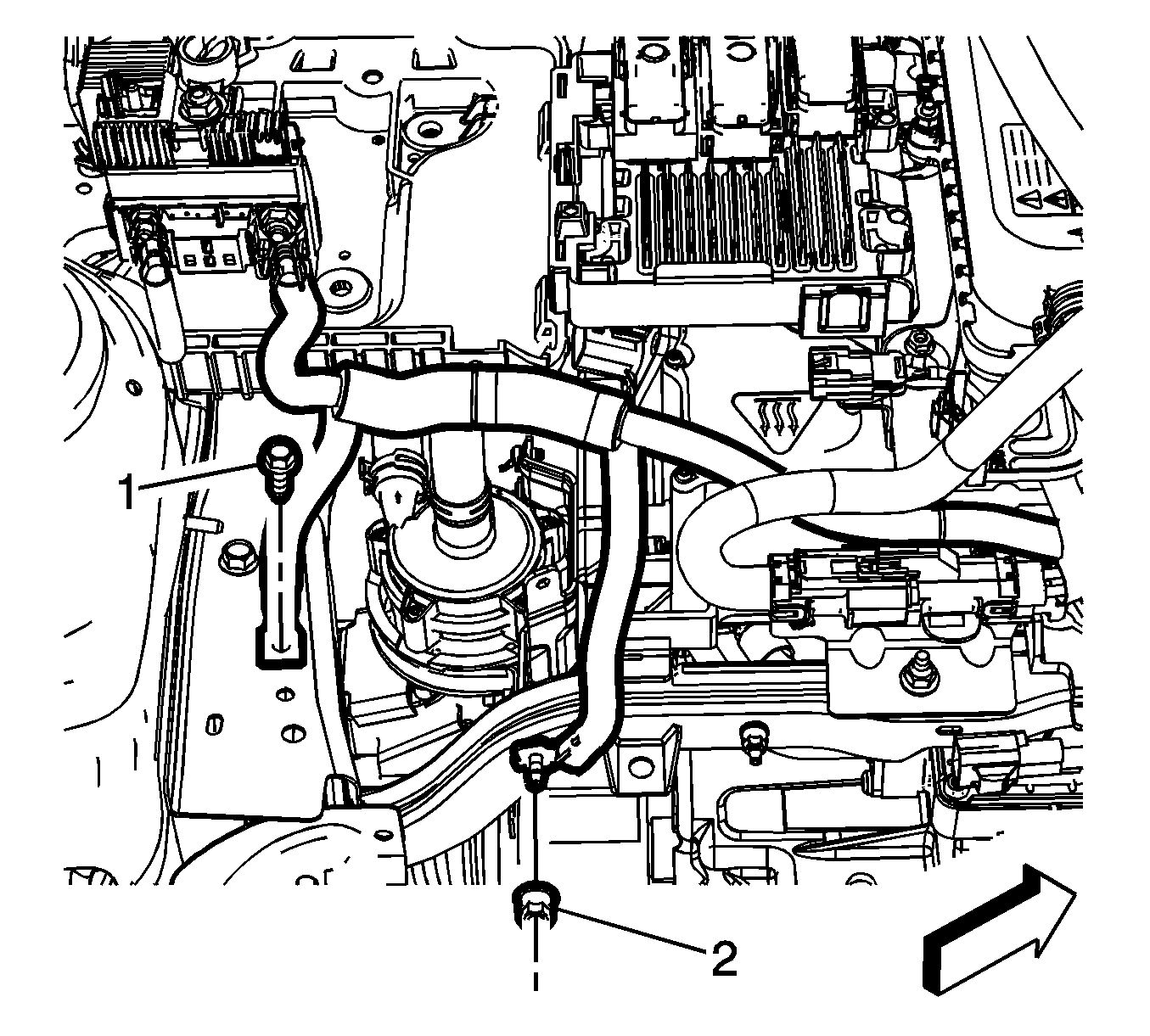

    GM3344953Courtesy of GENERAL MOTORS COMPANY
  16. Remove the chassis frame ground fastener (1) and the drivetrain and front suspension frame ground fastener (2).
  17. Remove the 4 heater coolant heater bracket fasteners and reposition the heater coolant heater and bracket assembly. Refer to Heater Coolant Heater Bracket Replacement .
    18. Fig 9: Removing Protective Boot On Battery Positive Cable
    GM2917960Courtesy of GENERAL MOTORS COMPANY
  18. Remove the protective boot (1) on the battery positive cable (3).
  19. Remove the battery positive cable fastener (2) and the battery positive cable (3), from the accessory DC power control module (4).
    20. Fig 10: Battery Positive Cable Retainers
    GM2917965Courtesy of GENERAL MOTORS COMPANY
  20. Remove the battery positive cable (2) from the vehicle.
