Battery Negative Cable Disconnection and Connection

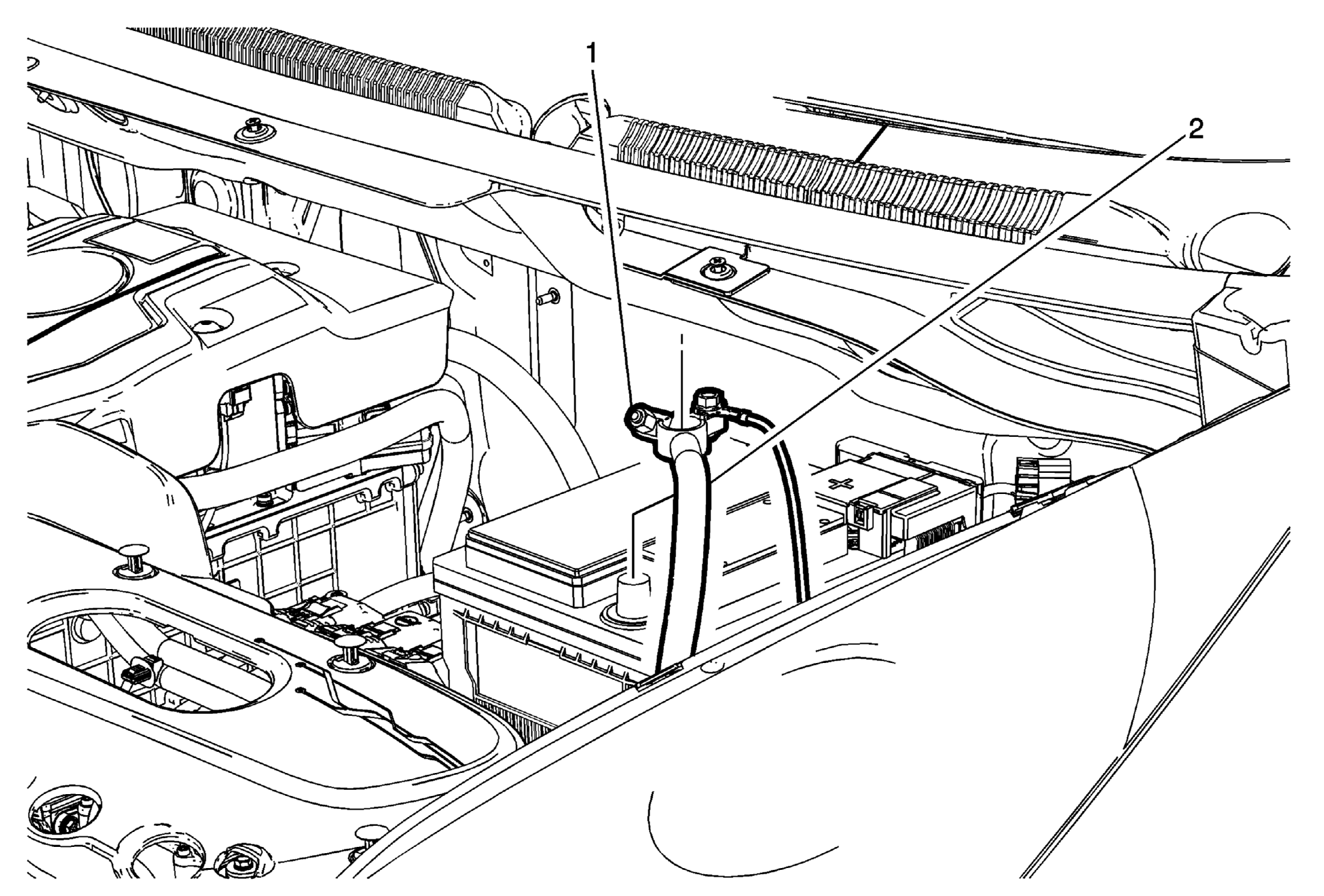

Fig 1: Battery Negative Cable Disconnection and Connection

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Turn the ignition OFF. Record radio and engine oil life resets.
1	Battery Negative Cable Fastener WARNING: Refer to Battery Disconnect Warning . CAUTION: Refer to Fastener Caution . Tighten 5 (44 lb in)
2	Battery Negative Cable

Callout

Component Name

Preliminary Procedures

Battery Negative Cable Fastener

WARNING:

CAUTION:

Tighten
5 (44 lb in)

Battery Negative Cable
