Inside Rearview Mirror Replacement

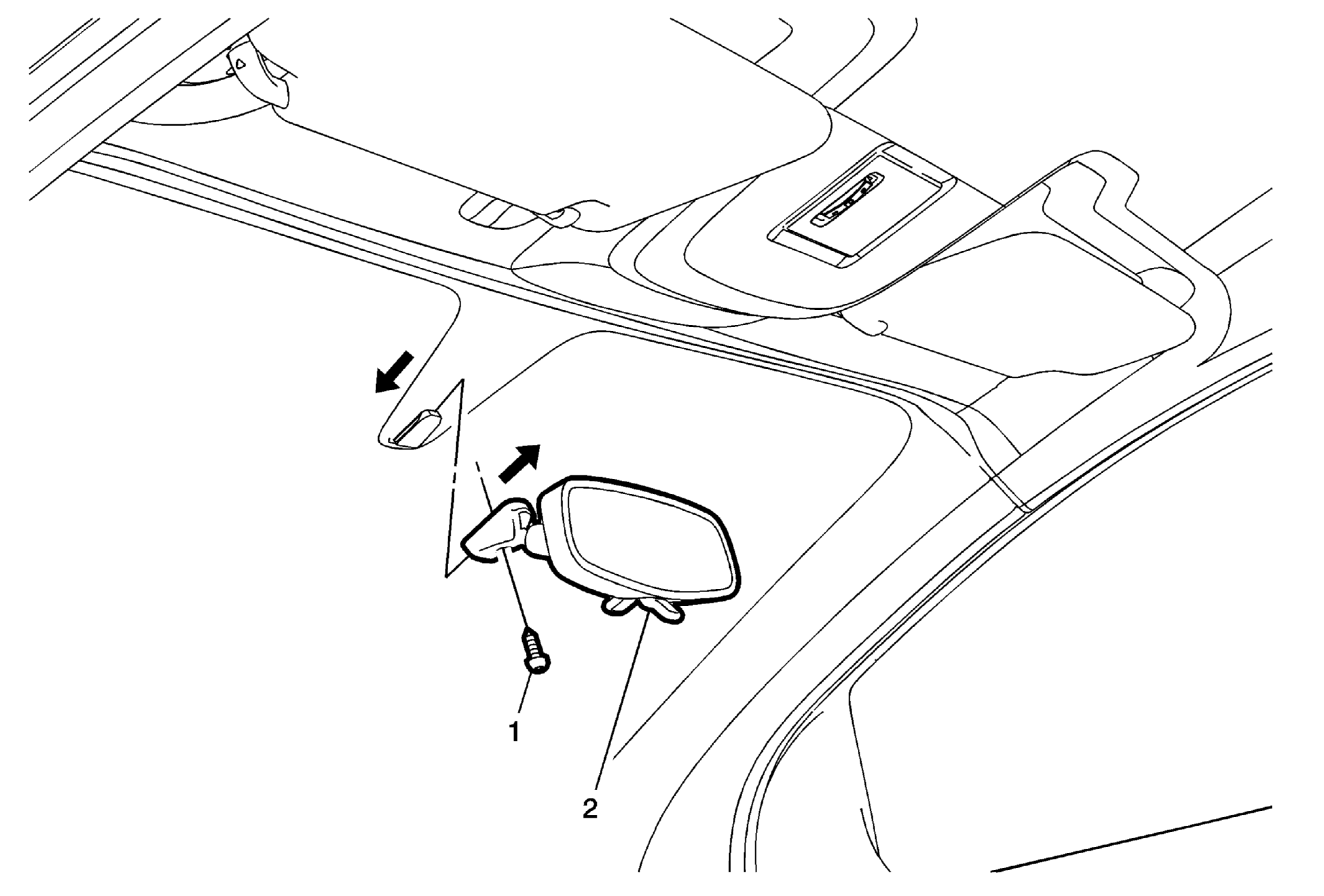

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inside rearview mirror base cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement .
1	Inside Rearview Mirror Screw CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Adjust the mirror to the full upward position, loosen the screw at the base in order to remove the mirror from the button. Slide the mirror in an upward motion in order to remove. Tighten 2 N.m (18 lb in)
2	Inside Rearview Mirror

Callout

Component Name

Preliminary Procedure
Remove the inside rearview mirror base cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement .

Inside Rearview Mirror Screw

CAUTION:

Procedure

Disconnect the electrical connector.
Adjust the mirror to the full upward position, loosen the screw at the base in order to remove the mirror from the button.
Slide the mirror in an upward motion in order to remove.

Tighten
2 N.m (18 lb in)

Inside Rearview Mirror
