Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

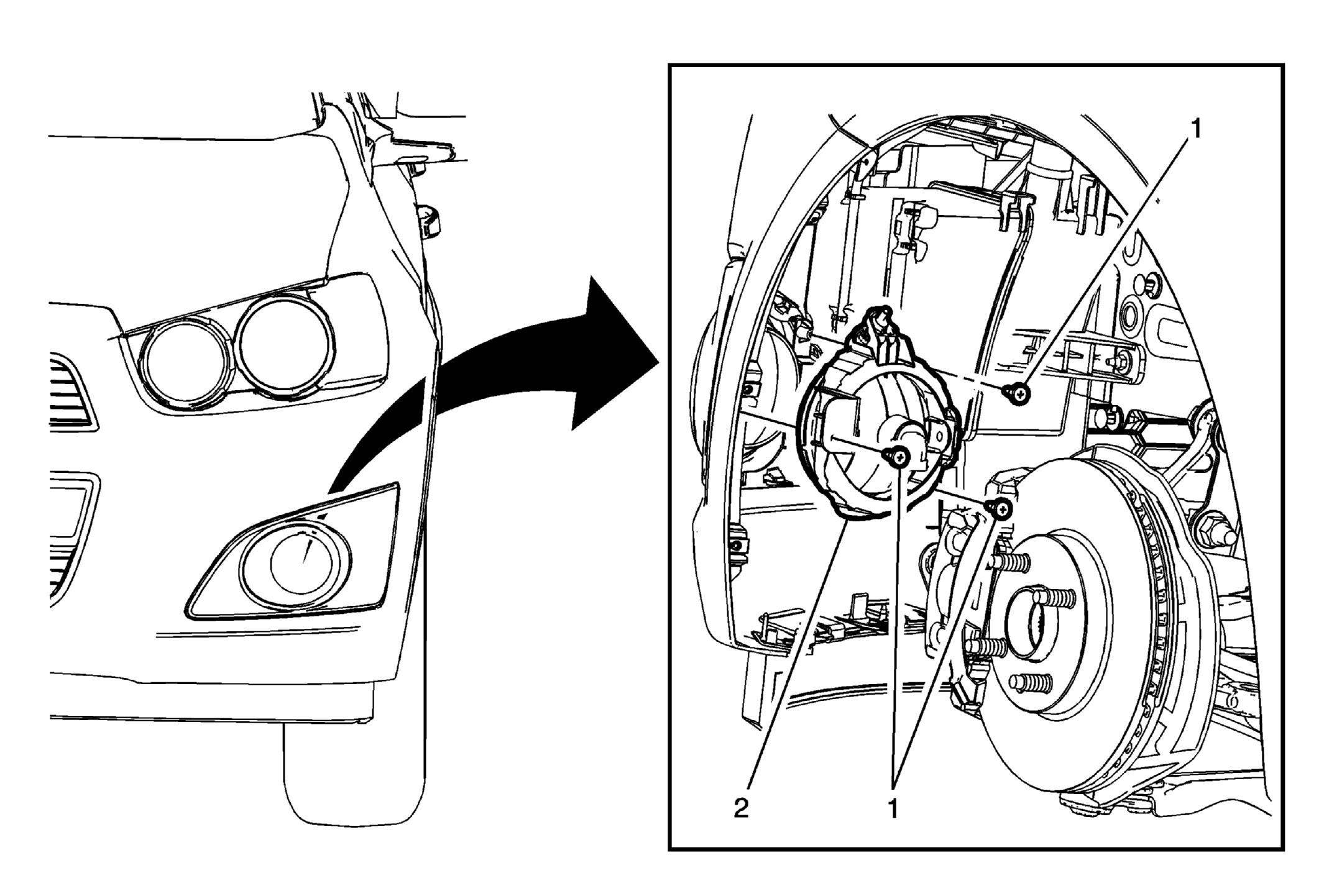

Fig 1: Front Fog Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove either the right front or left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Rear) , Front Wheelhouse Liner Replacement (Front) . Disconnect the electrical connector from the fog lamp bulb socket.
1	Front Fog Lamp Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Remove the three fog lamp mounting screws from the front bumper fascia.
2	Front Fog Lamp Procedure Aim the front fog lamps after replacement. Refer to Fog Lamp Aiming .

Callout

Component Name

Preliminary Procedure

Remove either the right front or left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Rear) , Front Wheelhouse Liner Replacement (Front) .
Disconnect the electrical connector from the fog lamp bulb socket.

Front Fog Lamp Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Remove the three fog lamp mounting screws from the front bumper fascia.

Front Fog Lamp
Procedure
Aim the front fog lamps after replacement. Refer to Fog Lamp Aiming .
