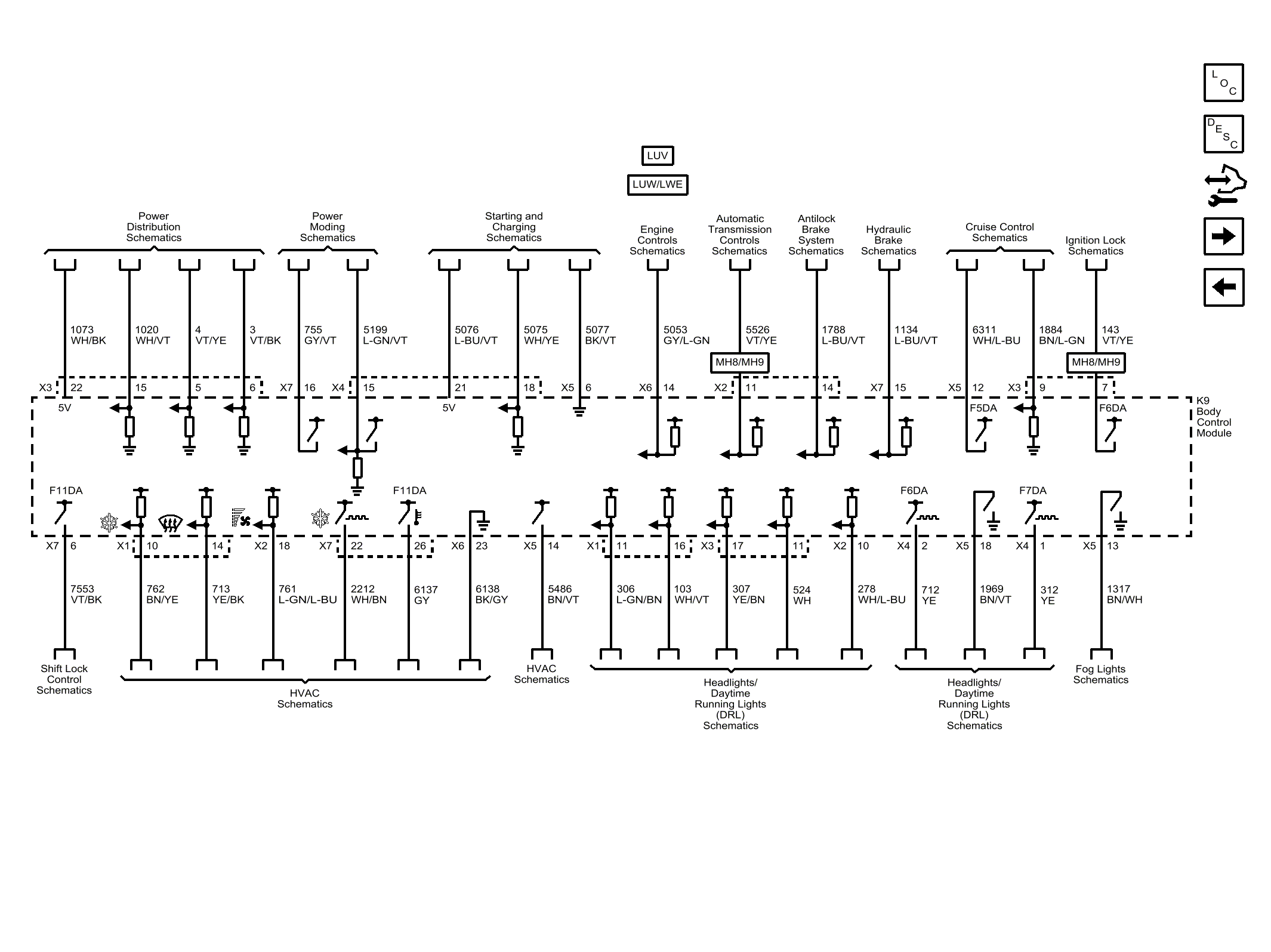

Home >> Chevrolet >> 2014 >> Sonic RS, 4D Hatchback, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> Subsystem References (2 of 5)
