Installation Procedure

    Fig 1: Battery Negative Cable And Current Sensor
    GM2027819Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery current sensor (2) onto the battery negative cable (1).

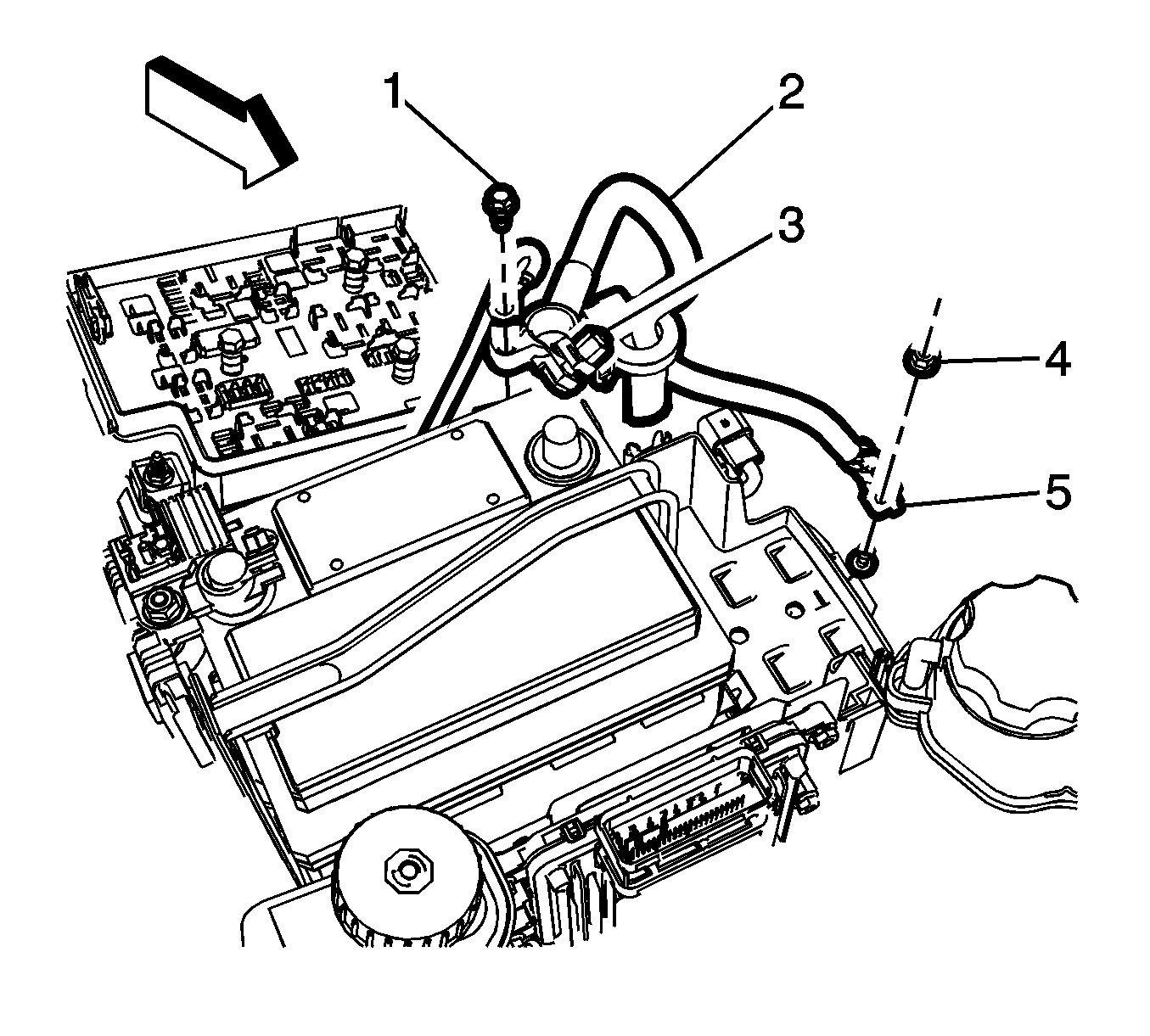

    2. Fig 2: Battery Current Sensor, Negative Cable & Mounting Components
    GM2507827Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  2. Install the battery negative cable frame ground terminal (5) and bolt (4). Tighten to 22 N.m (16 lb ft).
  3. Install the battery tray. Refer to Battery Tray Replacement .
  4. Clip the battery current sensor onto the battery tray.
  5. Connect the battery current sensor to the body harness connector.
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
