Installation Procedure

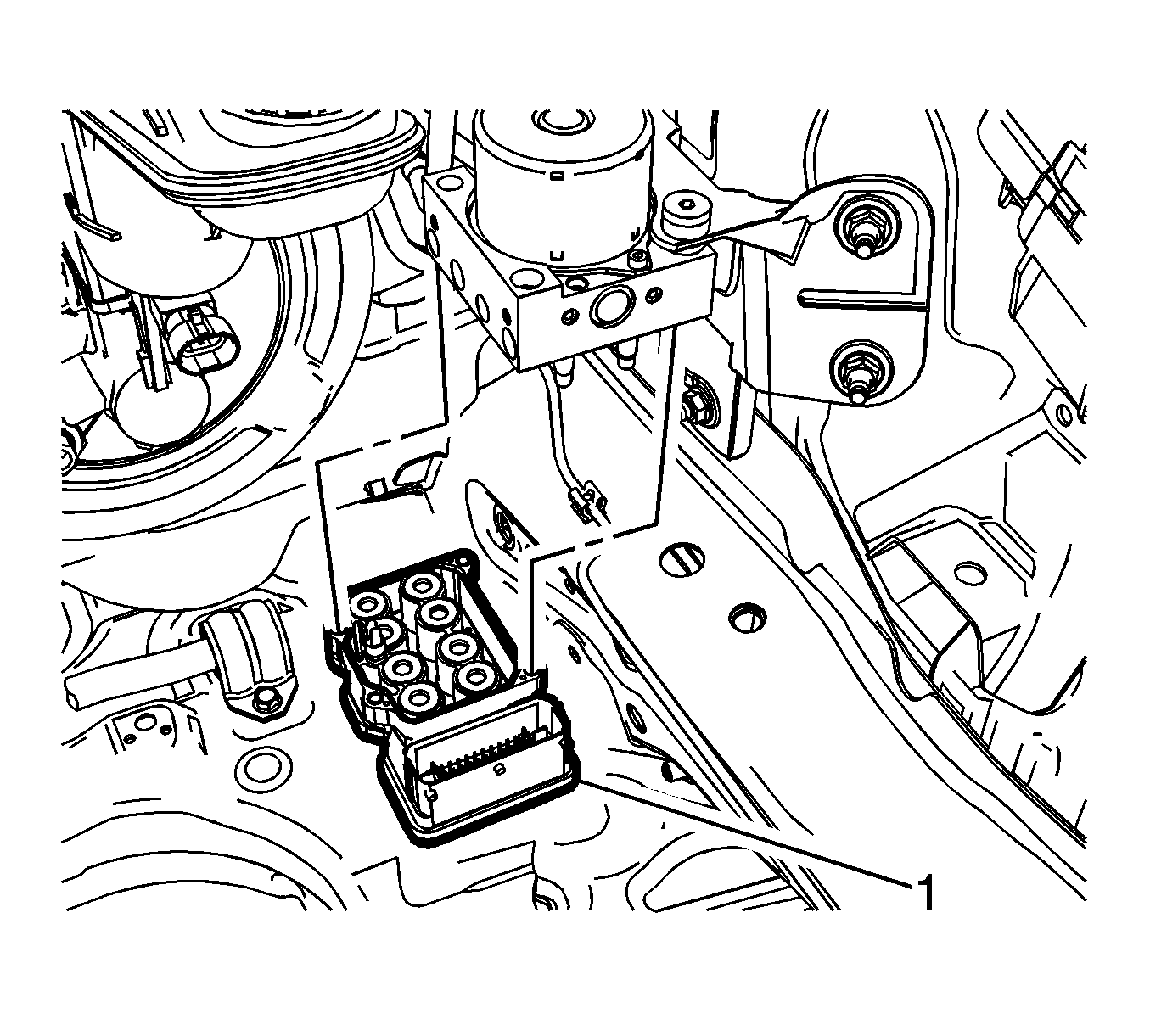

Fig 1: Electronic Brake Control Module

GM2535378

Courtesy of GENERAL MOTORS COMPANY

Install the EBCM (1) to the BPMV.

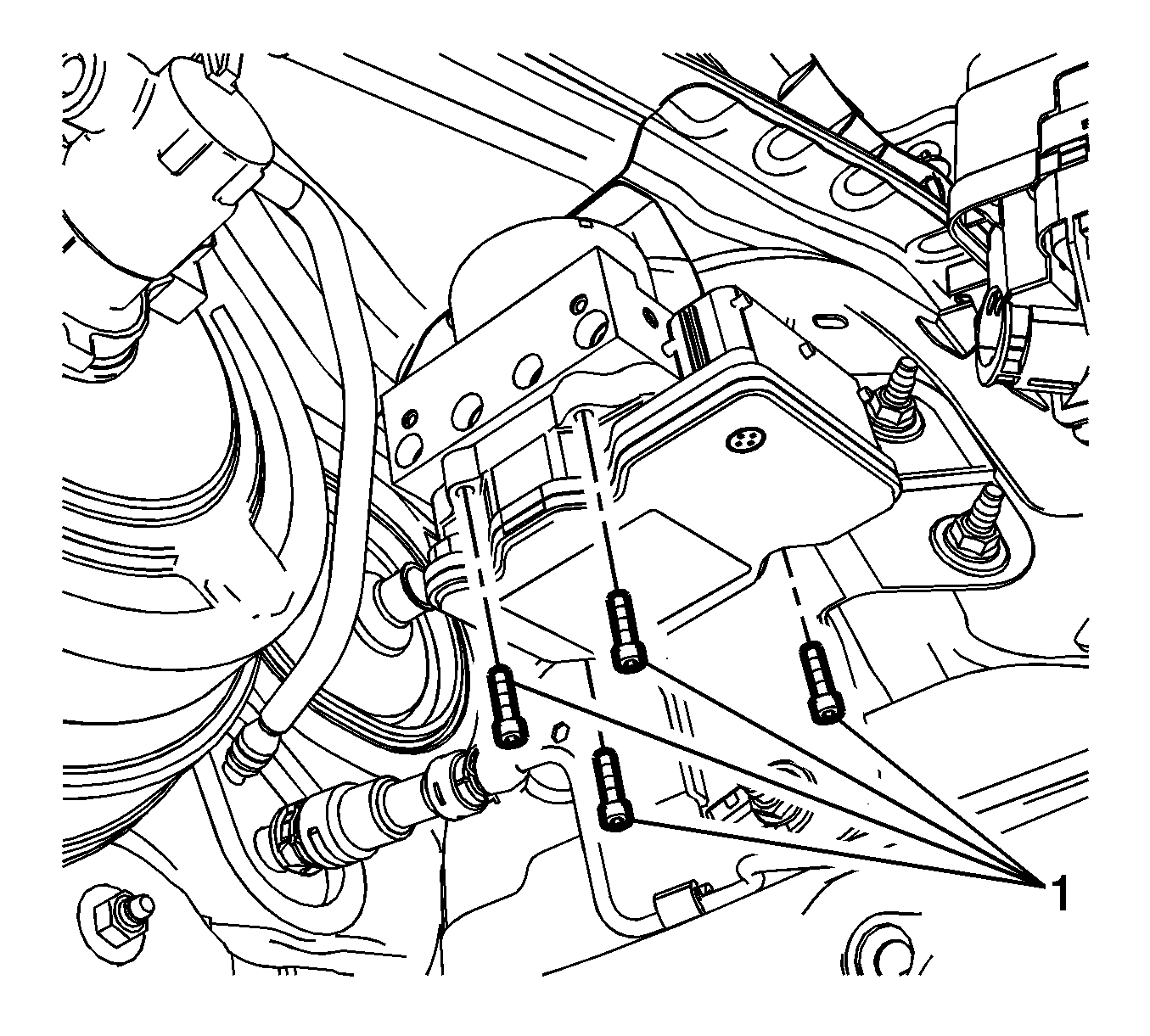

Fig 2: Electronic Brake Control Module Bolts

GM2535377

Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .

Install the EBCM bolts (1) and tighten to 3 N.m (26 lb in).
Connect the EBCM electrical connector.
Install the battery tray. Refer to Battery Tray Replacement .
Program the EBCM. Refer to Control Module References .
