Theft Deterrent Module Replacement

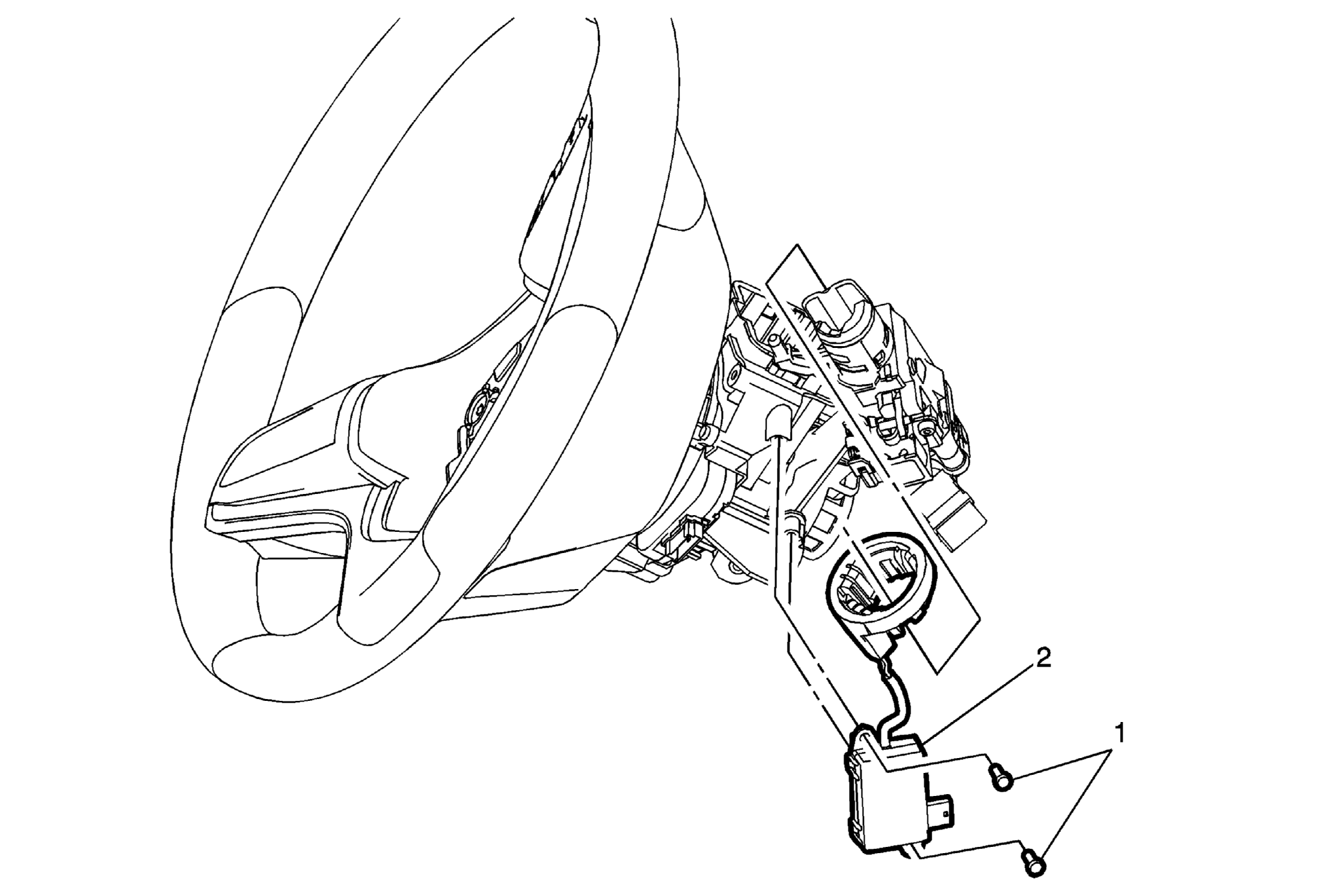

Fig 1: Theft Deterrent Module
GM2502272Courtesy of GENERAL MOTORS COMPANY
Theft Deterrent Module Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
  2. Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
1 Theft Deterrent Module Bolt/Screw (Qty: 2)
CAUTION: Refer to Fastener Caution .
2 Theft Deterrent Module

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for programming and set up procedures.
