Remote Control Door Lock Receiver Replacement (With UEU/UFL)

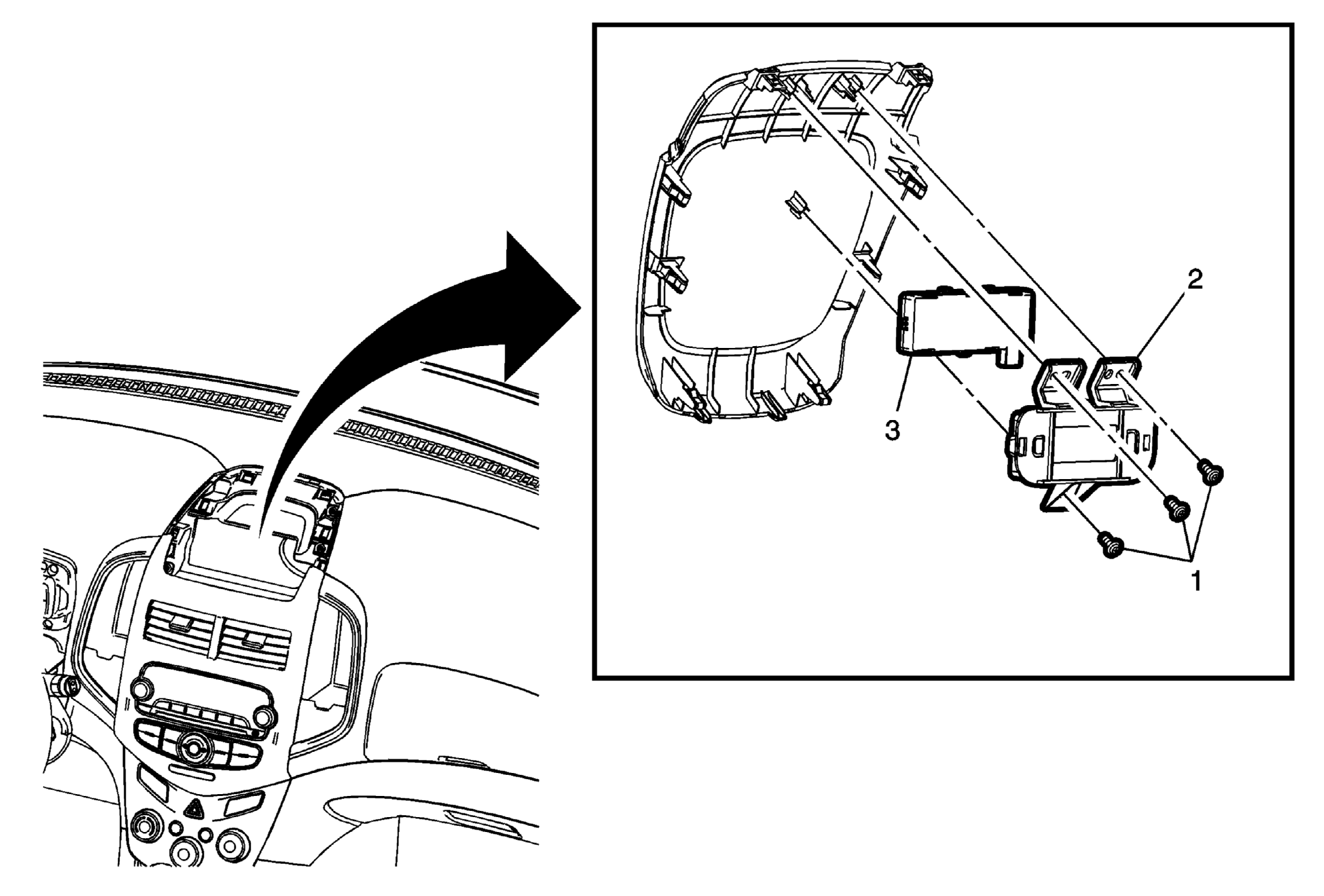

Fig 1: Remote Control Door Lock Receiver, Bracket & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Remote Control Door Lock Receiver Replacement

Callout	Component Name
Preliminary Procedure Remove the instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement .
1	Remote Control Door Lock Receiver Fastener (Qty: 3) CAUTION: Refer to Fastener Caution
2	Remote Control Door Lock Receiver Bracket
3	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures.
