Linear Interconnect Network (LIN) Bus 1, 2, 3, 4 and 11

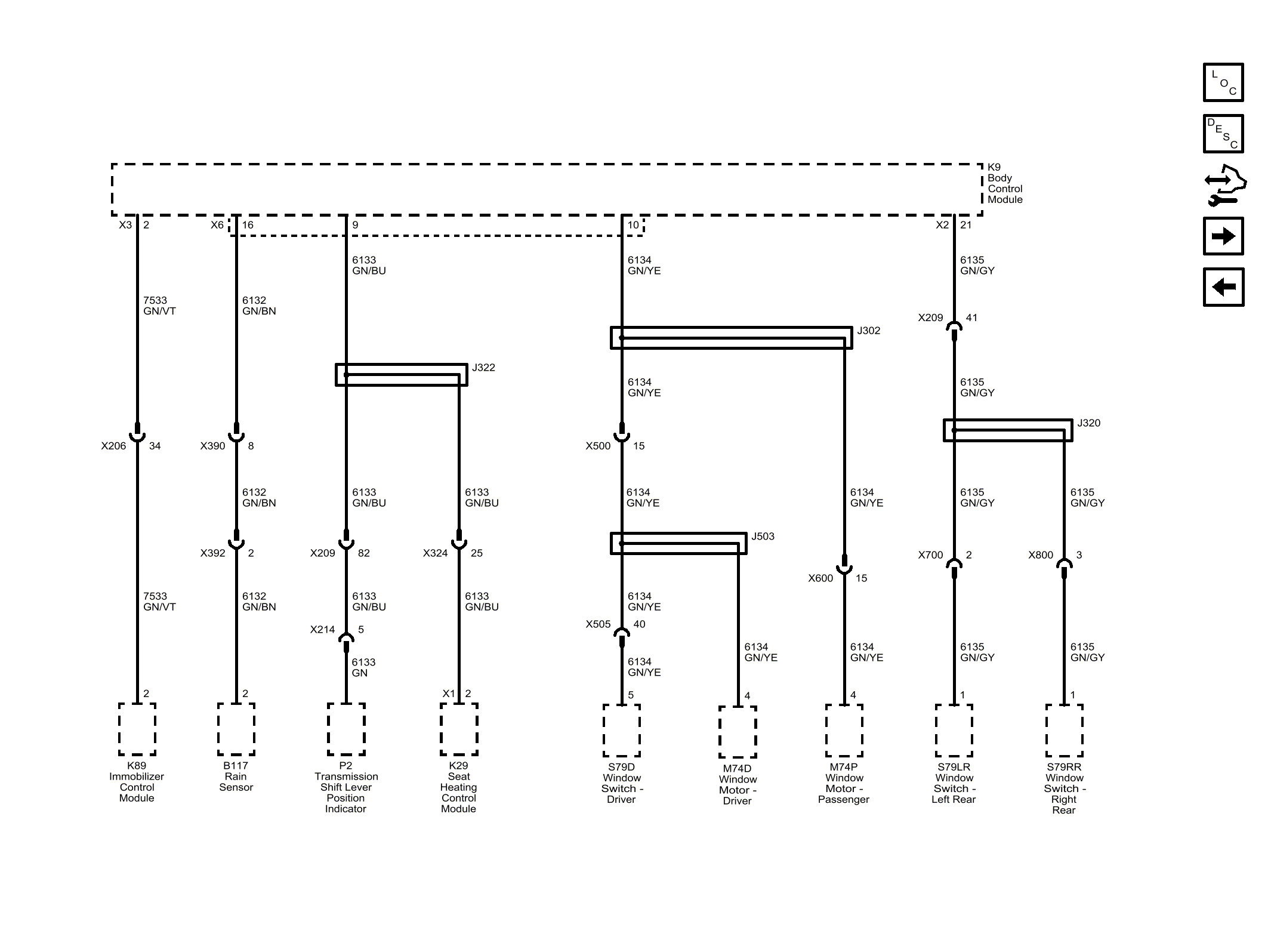

Fig 1: Linear Interconnect Network (LIN) Bus 1, 2, 3, 4 and 11 Wiring Schematic

GM3554200

Courtesy of GENERAL MOTORS COMPANY
