Front Floor Console Rear Trim Panel Replacement

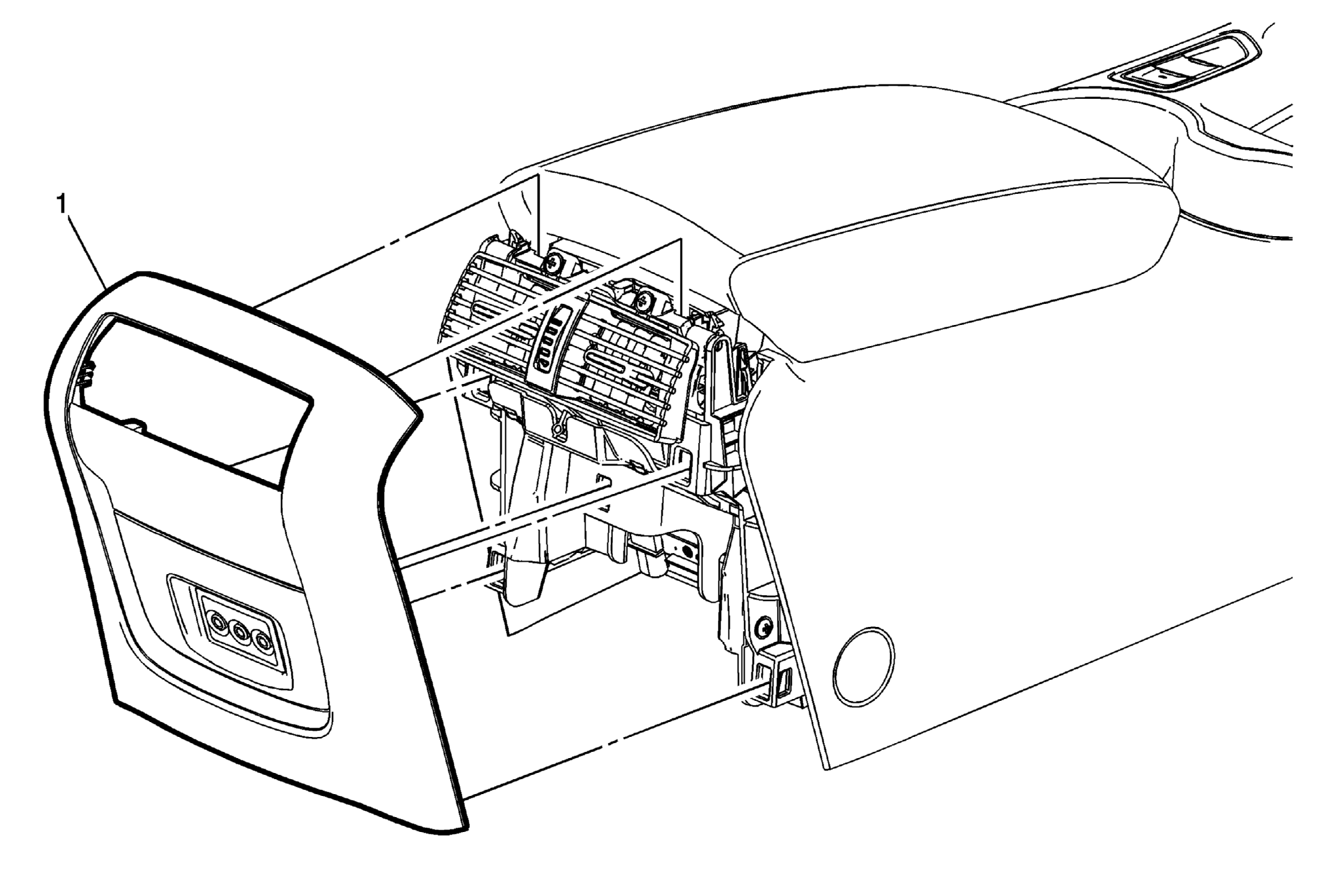

Courtesy of GENERAL MOTORS COMPANY Front Floor Console Rear Trim Panel Replacement
| Callout |
Component Name |
| 1 |
Front Floor Console Rear Trim Panel Procedures
- Use a flat bladed plastic trim tool to remove the trim panel from the console.
- Disconnect the electrical connection.
- Transfer components as necessary.
|
