Power, Ground, Serial Data, Alarm, Rear Sensors and Controls

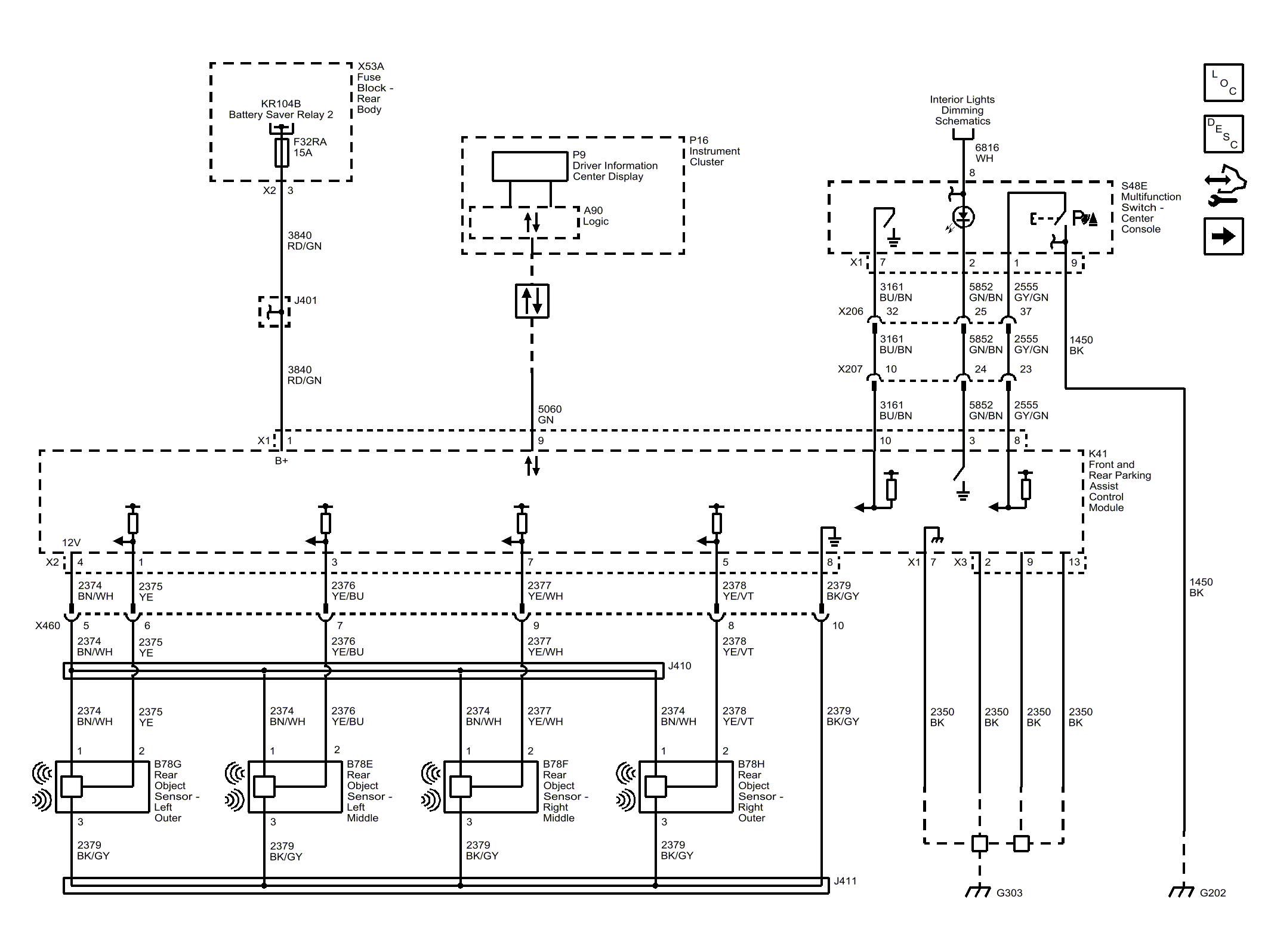

Fig 1: Power, Ground, Serial Data, Alarm, Rear Sensors and Controls Wiring Schematic

GM3554213

Courtesy of GENERAL MOTORS COMPANY
