Module Power, Ground, Serial Data, and MIL

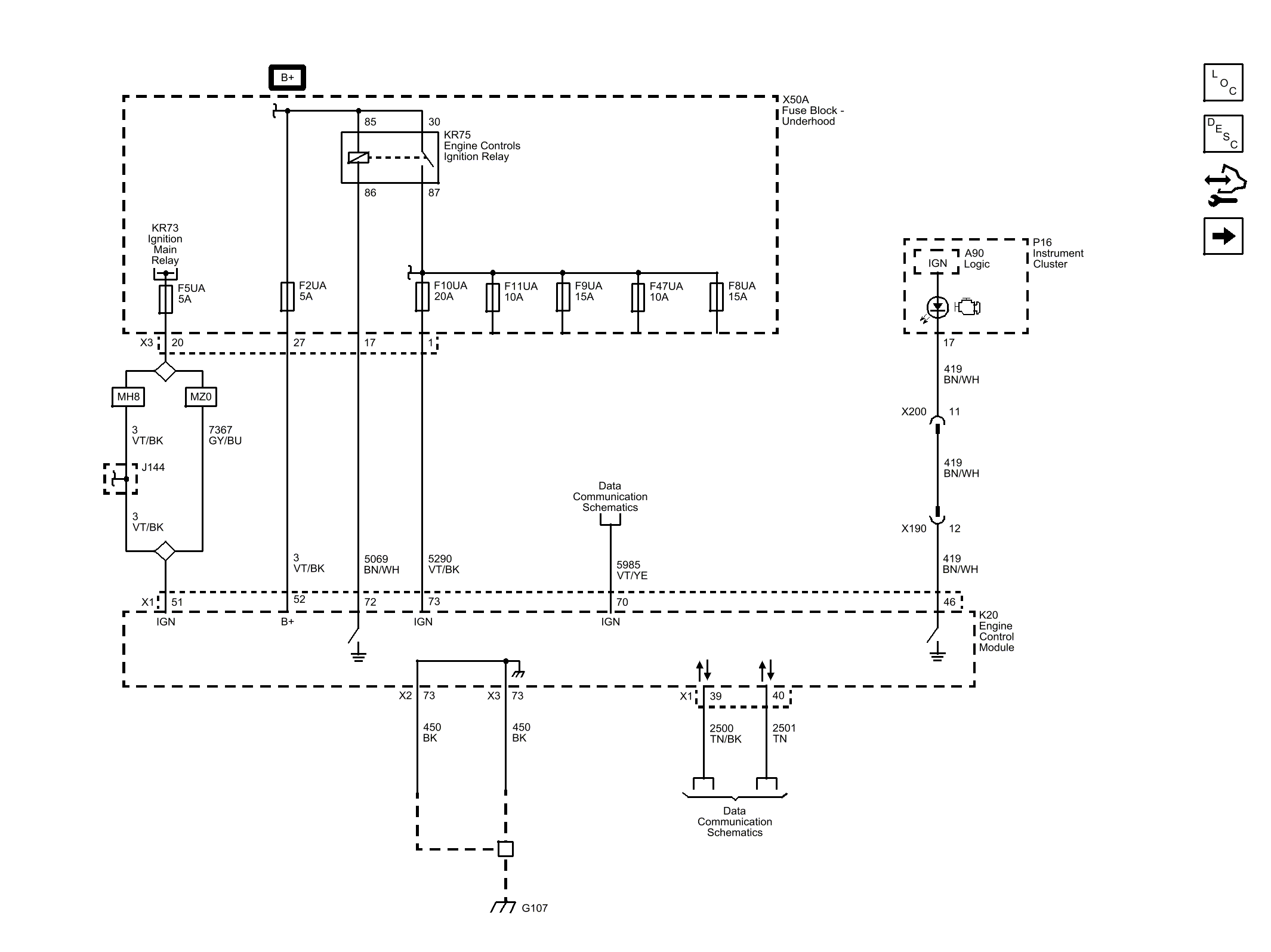

Fig 1: Module Power, Ground, Serial Data, and MIL Wiring Schematics

GM3254860

Courtesy of GENERAL MOTORS COMPANY
