Front Side Door Lock Striker Replacement

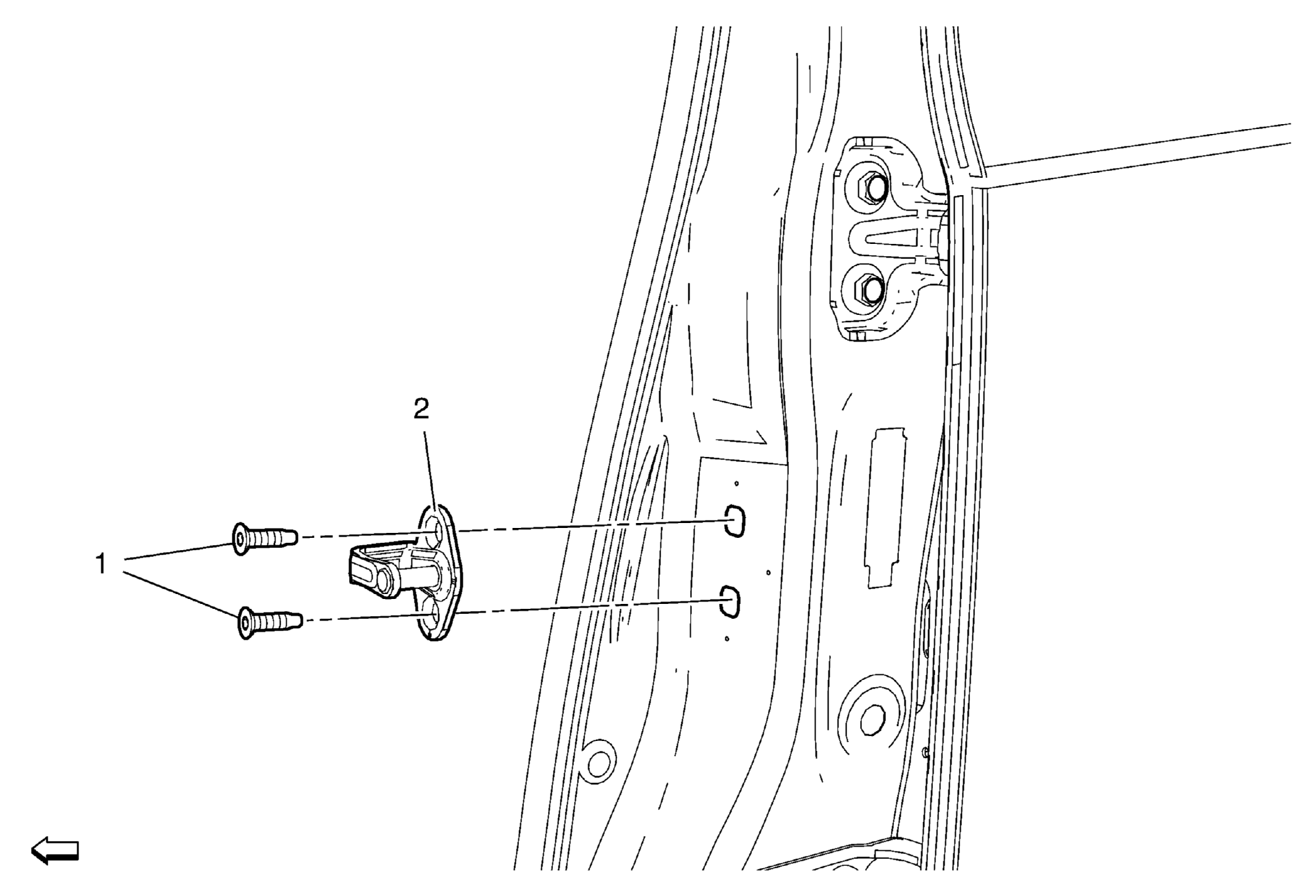

Fig 1: Front Side Door Lock Striker And Bolts
GM2371619Courtesy of GENERAL MOTORS COMPANY
Front Side Door Lock Striker Replacement

Callout Component Name
1 Front Side Door Lock Striker Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Front Side Door Lock Striker
