3rd Row Seat Shoulder Belt Buckle Replacement
3rd Row Seat Shoulder Belt Buckle Replacement

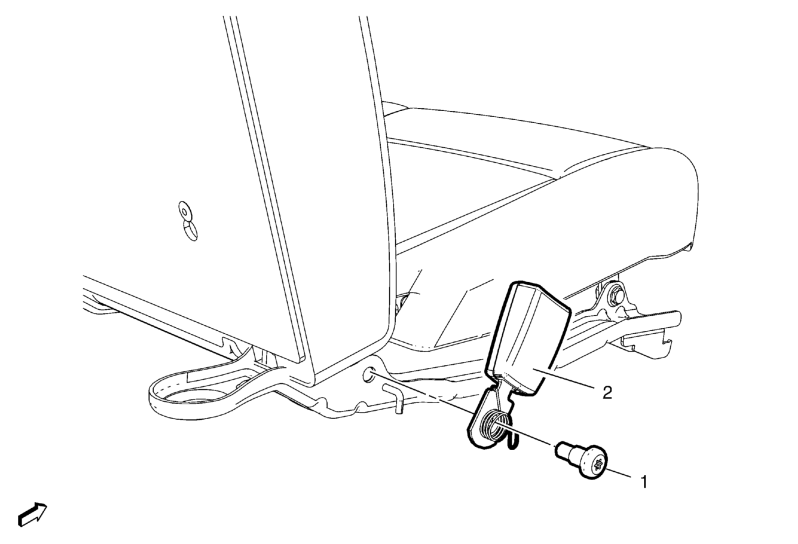

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear number 2 seat. Refer to 3rd Row Seat Removal and Installation . |
|
| 1 | Rear Seat Number 2 Shoulder Belt Buckle Bolt
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Number 2 Shoulder Belt Buckle |
