Rear Side Door Window Rear Guide Replacement
Rear Side Door Window Rear Guide Replacement

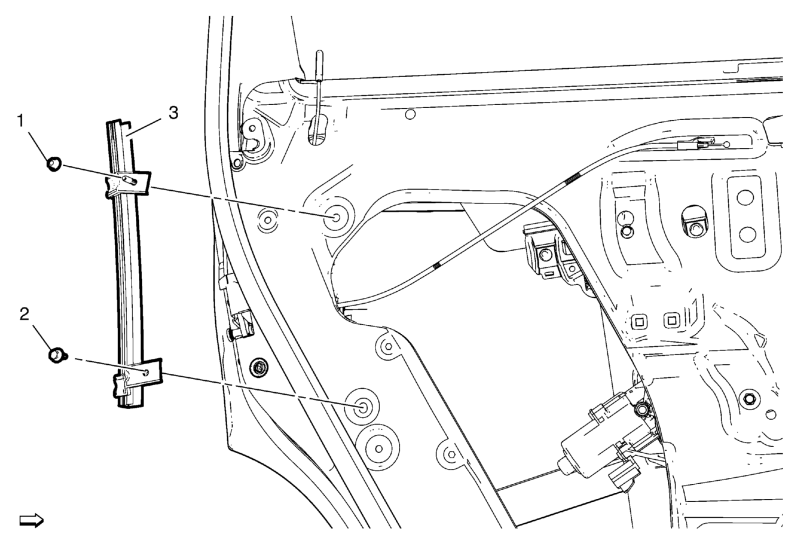

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement . |
|
| 1 | Rear Side Door Window Rear Guide Nut
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Rear Side Door Window Rear Guide Bolt Tighten 9 N.m (80 lb in) |
| 3 | Rear Side Door Window Rear Guide |
