Front Side Door Latch Replacement

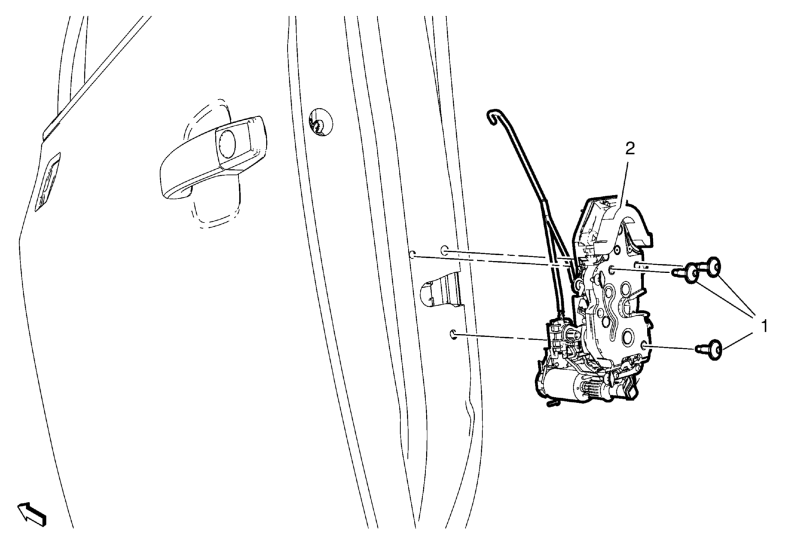

Courtesy of GENERAL MOTORS COMPANY Front Side Door Latch Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the front side door trim. Refer to Front Side Door Trim Replacement
.
- Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement
.
- Remove the front side door lock cover. Refer to Front Side Door Lock Cover Replacement .
|
| 1 |
Front Side Door Latch Screw (Qty: 3)
Procedure
- Remove and DISCARD the screw.
- Cut the thread.
NOTE:
Service may offer bolts that are not microencapsulated. If this is the case apply thread lock agent to the bolt.
Tighten
10 N.m (89 lb in) |
| 2 |
Front Side Door Latch Procedure
- Release the door lock cable retainers from the door.
- Disconnect the door lock electrical connector.
- Remove the door lock with the handle housing.
- Remove the handle and lock rods from the lock.
- Inspect the lock, lock cylinder and handle adjustments. Refer to Front Side Door Outside Handle Rod Adjustment
|
