Right Front of Engine Components (LTG)

Items
1: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LKW or LTG)Q12 Evaporative Emission Purge Solenoid Valve (LUK)
2: T8A Ignition Coil 1 T8A Ignition Coil 1 (LKW or LTG)T8A Ignition Coil 1 (LUK)
3: T8B Ignition Coil 2 T8B Ignition Coil 2 (LKW or LTG)T8B Ignition Coil 2 (LUK)
4: T8C Ignition Coil 3 T8C Ignition Coil 3 (LKW or LTG)T8C Ignition Coil 3 (LUK)
5: T8D Ignition Coil 4 T8D Ignition Coil 4 (LKW or LTG)T8D Ignition Coil 4 (LUK)
6: Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly X1 (M7W)Q8 Control Solenoid Valve Assembly X1 (MHH or MNH)Q8 Control Solenoid Valve Assembly X2 (M7W)Q8 Control Solenoid Valve Assembly X2 (MHH or MNH)Q8 Control Solenoid Valve Assembly X3 (M7W)Q8 Control Solenoid Valve Assembly X3 (MHH or MNH)Q8 Control Solenoid Valve Assembly X4 (M7W)Q8 Control Solenoid Valve Assembly X4 (MHH or MNH)
7: Q42 Turbocharger Wastegate Solenoid Valve (LTG) Q42 Turbocharger Wastegate Solenoid Valve (LTG)
8: Q40 Turbocharger Bypass Solenoid Valve (LTG) Q40 Turbocharger Bypass Solenoid Valve (LTG)
10: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 (LKW or LTG)B52B Heated Oxygen Sensor 2 (LUK)
11: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
12: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch

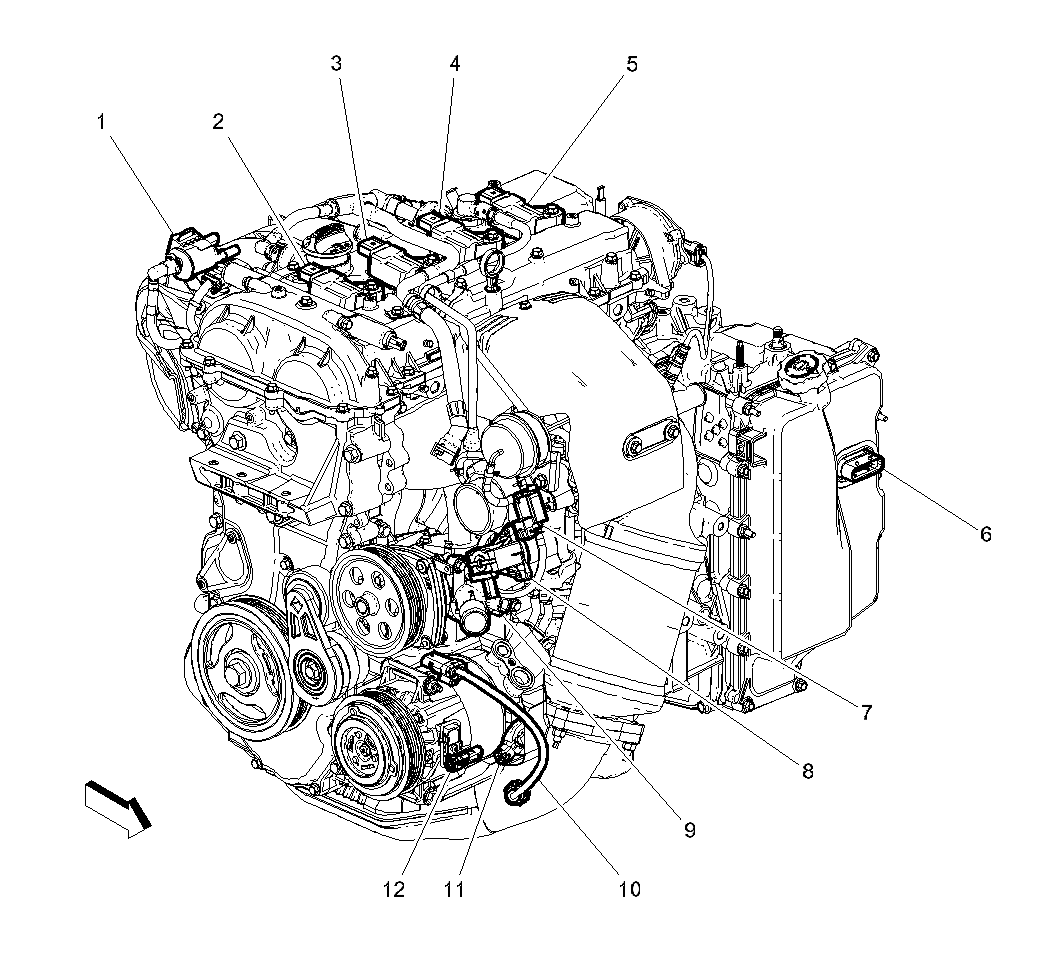

Fig 1: Right Front of Engine Components (LTG)

Courtesy of GENERAL MOTORS COMPANY
