Left Rear of Engine Components (LTG)

Left Rear of Engine Components (LTG)

Items
1:  X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5X50A Fuse Block - Underhood X6
2:  K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3 (LKW or LTG)K20 Engine Control Module X3 (LUK)
3:  B192 Throttle Inlet Absolute Pressure Sensor (LTG)
4:  B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake (LKW or LTG)B23F Camshaft Position Sensor - Intake (LUK)
5:  Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LKW or LTG)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LUK)
6:  B75C Multifunction Intake Air Sensor (LKW or LTG) B75C Multifunction Intake Air Sensor (LKW)B75C Multifunction Intake Air Sensor (LTG)
7:  Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LKW or LTG)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LUK)
8:  Q38 Throttle Body Q38 Throttle Body
9:  G13 Generator G13 Generator X1 (LKW or LTG)G13 Generator X2 (LKW or LTG)
10:  K43 Power Steering Control Module K43 Power Steering Control Module X1K43 Power Steering Control Module X2K43 Power Steering Control Module X3

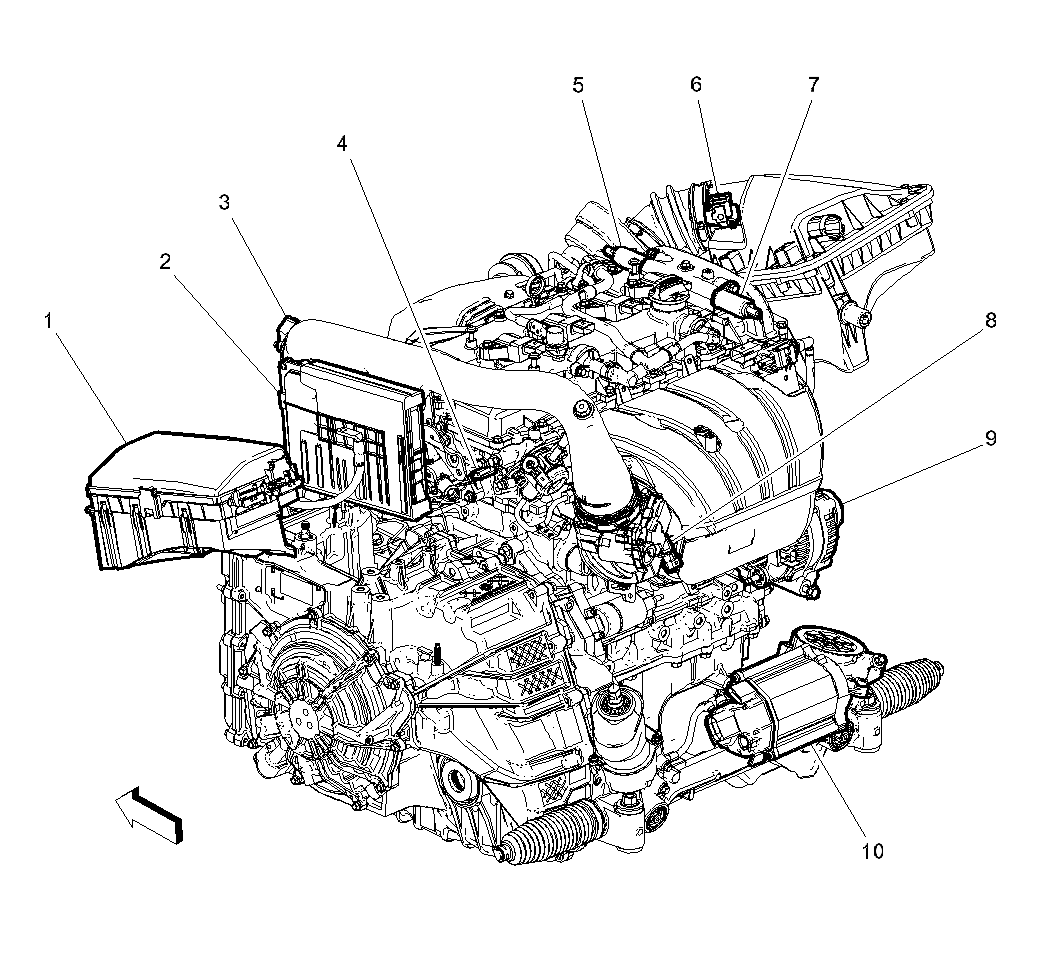

Fig 1: Left Rear of Engine Components (LTG)

Courtesy of GENERAL MOTORS COMPANY
