Remote Control Door Lock Receiver Replacement (Without HP6)

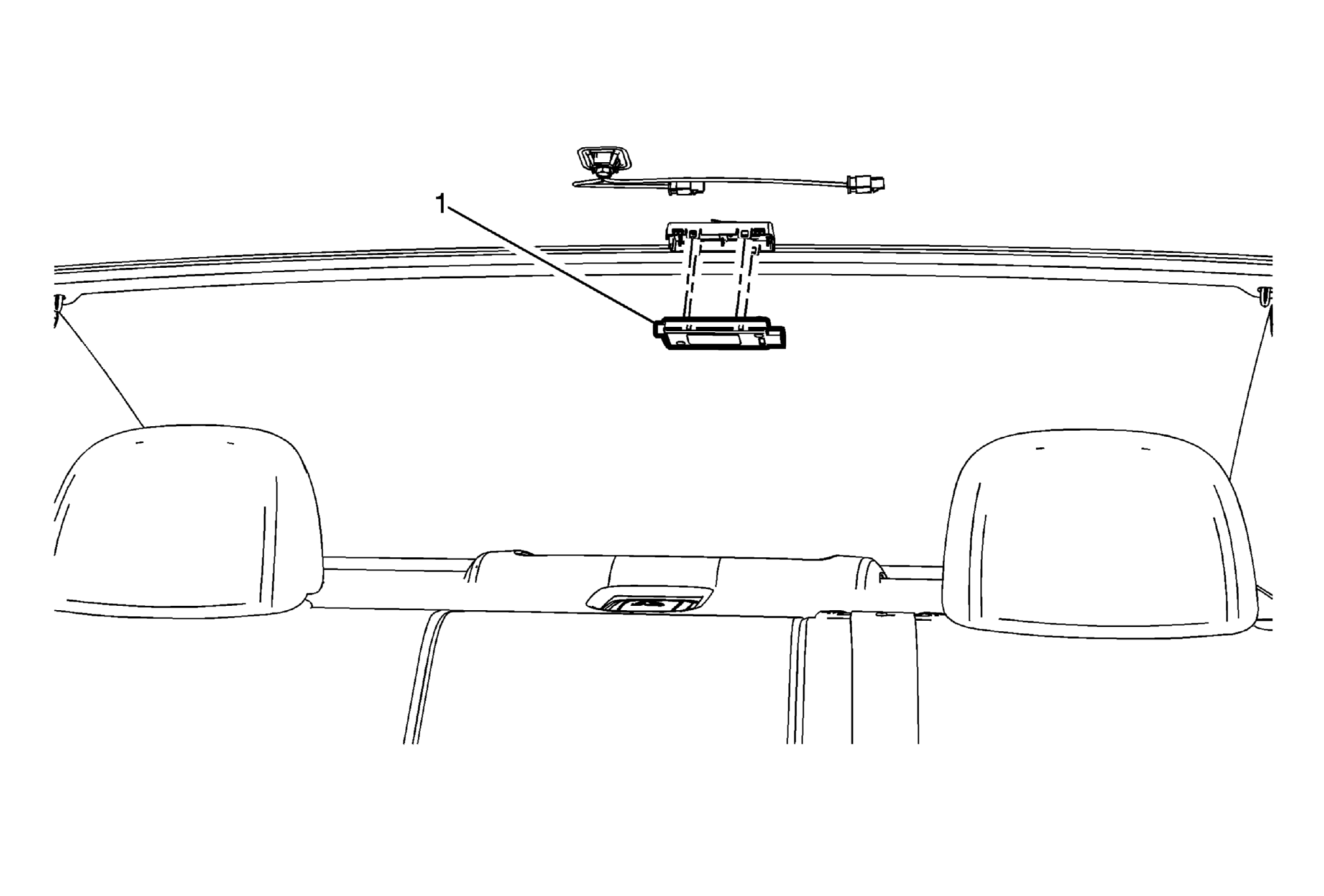

Fig 1: Remote Control Door Lock Receiver (Without HP6)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the rear of the headlining trim panel to gain access to the receiver. Refer to Headlining Trim Panel Replacement (Without Sunroof) , Headlining Trim Panel Replacement (With Sunroof) .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connectors. Unsnap the receiver from the bracket on the sheet metal. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Lower the rear of the headlining trim panel to gain access to the receiver. Refer to Headlining Trim Panel Replacement (Without Sunroof) , Headlining Trim Panel Replacement (With Sunroof) .

Remote Control Door Lock Receiver

Procedure
