Windshield Washer Solvent Container Replacement
WARNING: This page is about a different car, the 2014 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

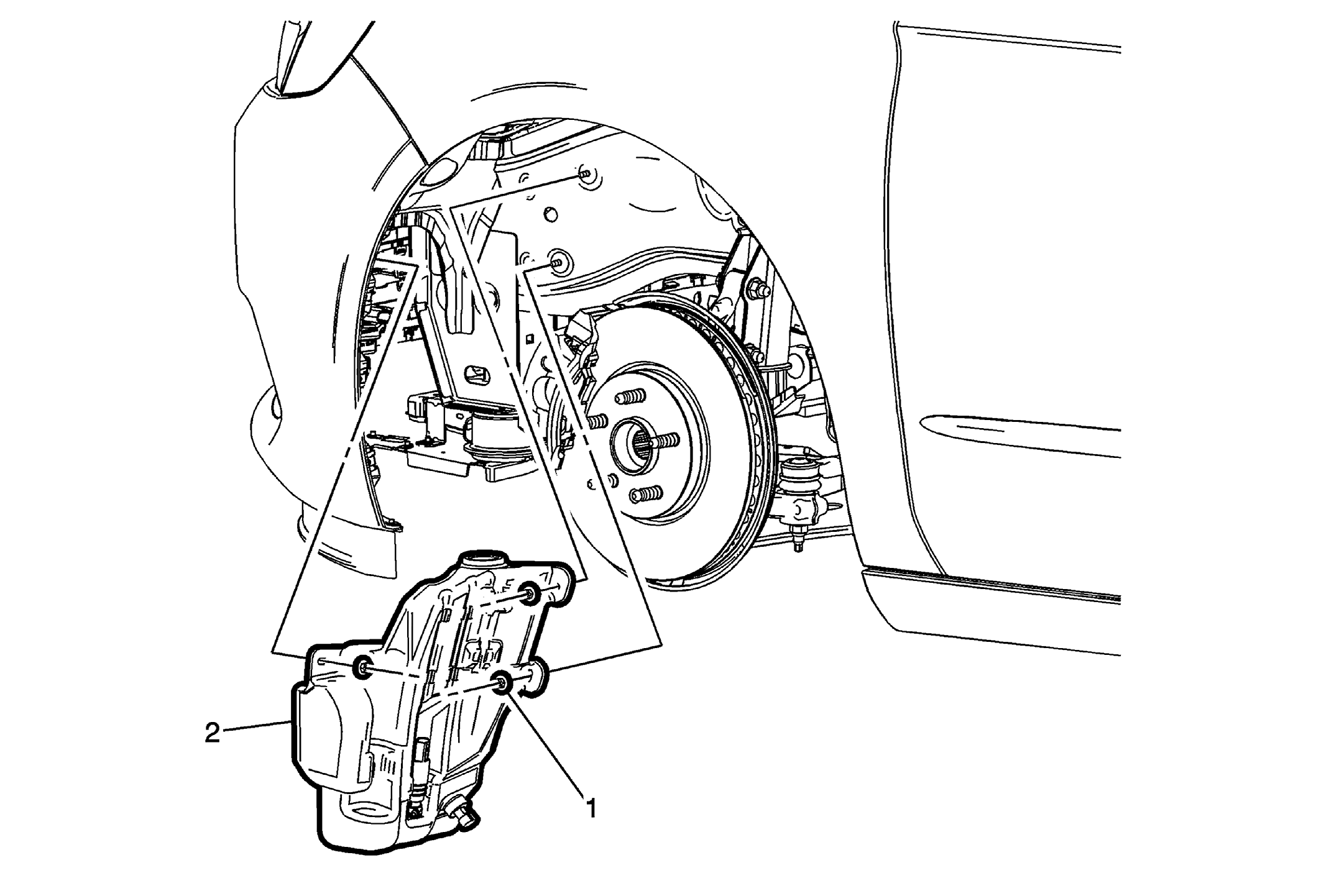

Courtesy of GENERAL MOTORS COMPANY Windshield Washer Solvent Container Replacement
| Callout |
Component Name |
|
Preliminary Procedure
- Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement .
- Reposition the left front wheelhouse liner. Only do those steps in the front wheelhouse liner replacement procedure that will remove the wheelhouse liner enough to gain access to the part. Refer to Front Wheelhouse Liner Replacement
.
|
| 1 |
Windshield Washer Solvent Container Nut (Qty: 3)
Tighten
9 N.m (80 lb in) |
| 2 |
Windshield Washer Solvent Container Procedure
- Place a clean suitable drain pan under the windshield washer container to recover the windshield washer solvent when the windshield washer hose is disconnected.
- Disconnect windshield washer nozzle hose.
- Disconnect the electrical connectors.
- Remove the windshield washer solvent container from the vehicle.
- Empty the windshield washer solvent into the clean suitable drain pan.
- Transfer parts as needed.
|
