Cruise Control Wiring Schematics: Controls

WARNING: This page is about a different car, the 2014 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

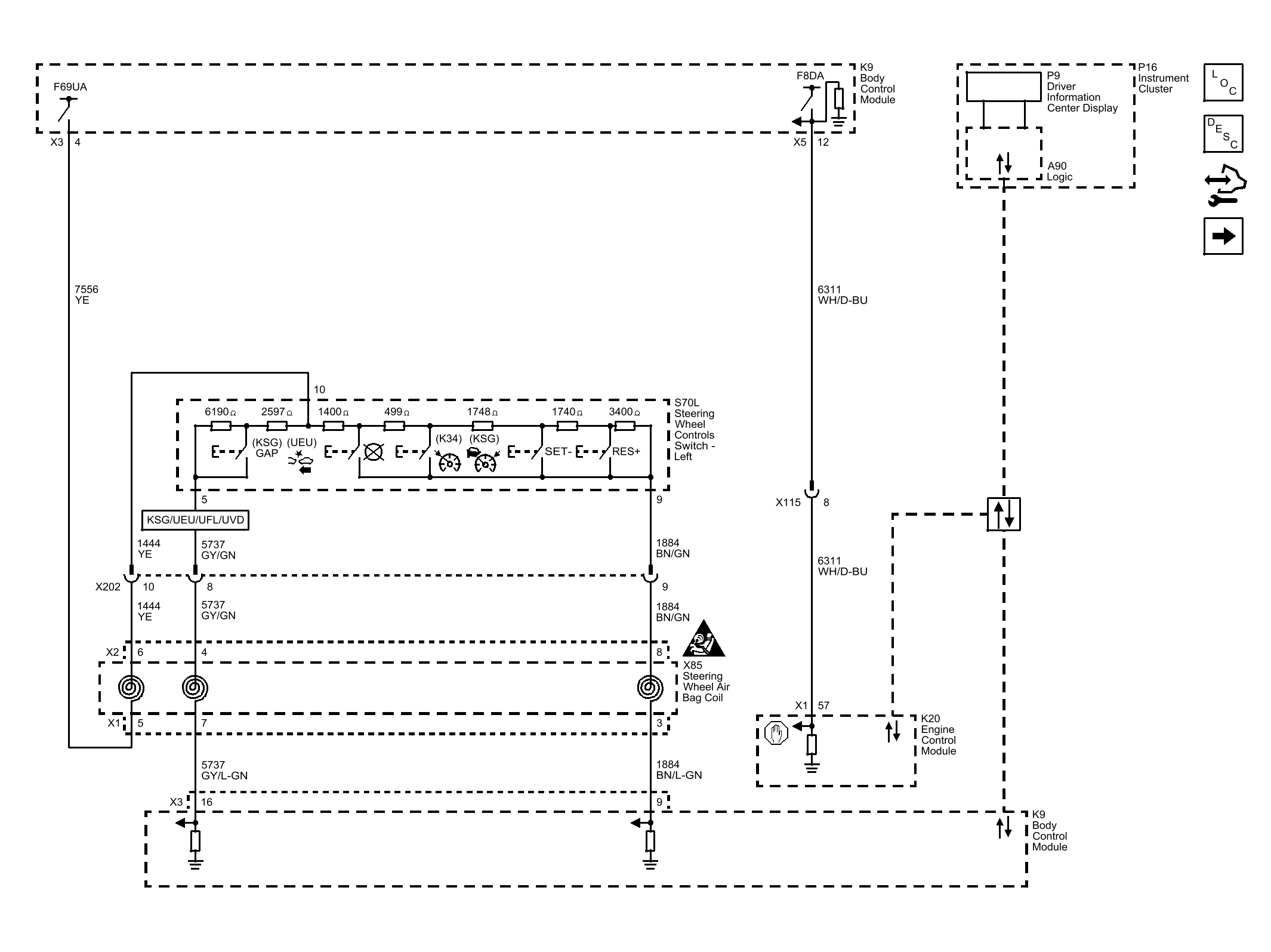

Fig 1: Cruise Control Wiring Schematic
GM2913720Courtesy of GENERAL MOTORS COMPANY
