Steering Wheel Heat Control Module Replacement
Steering Wheel Heat Control Module Replacement

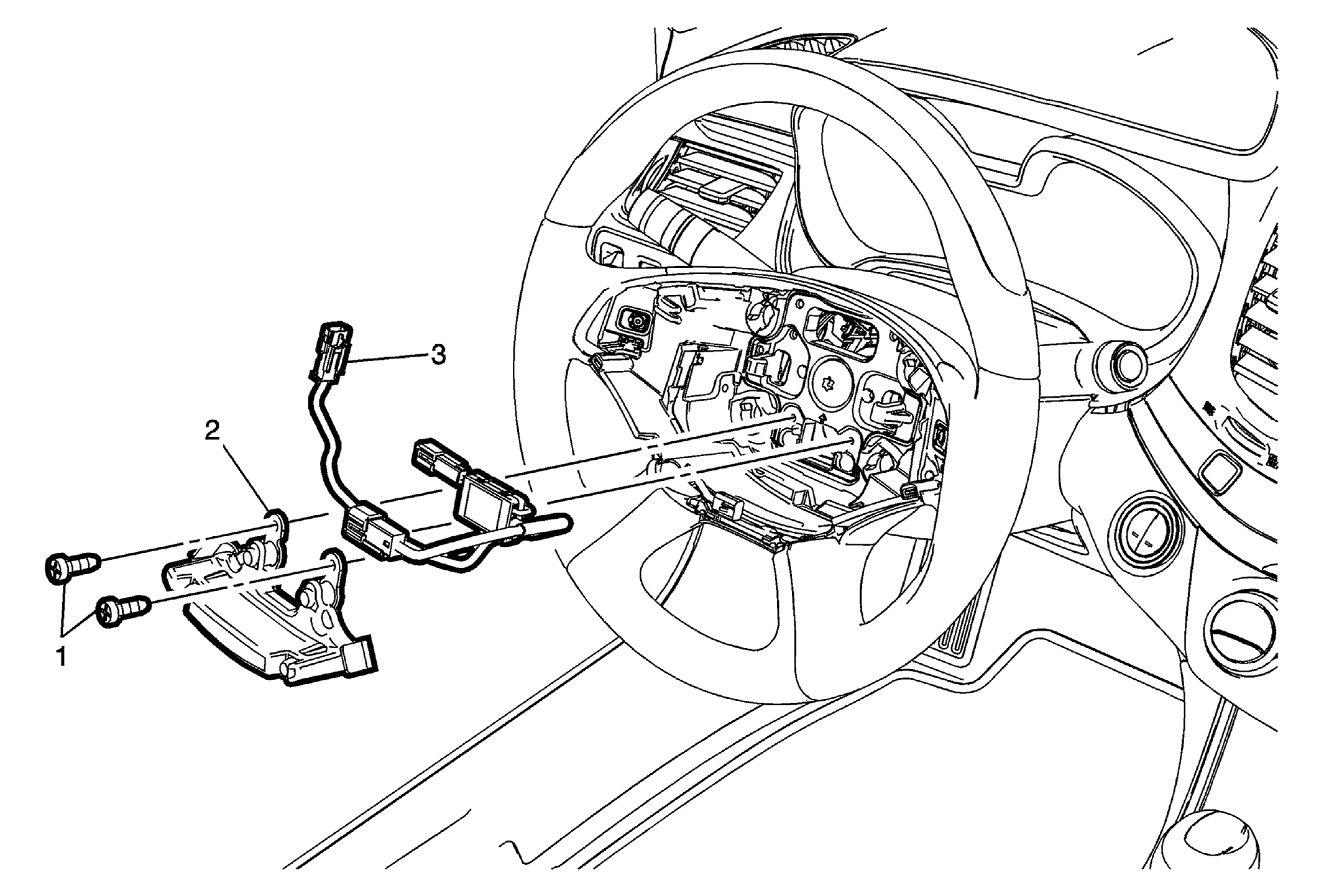

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the steering wheel spoke cover. Refer to Steering Wheel Spoke Cover Replacement . |
|
| 1 | Steering Wheel Mass Damper Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Steering Wheel Mass Damper |
| 3 | Steering Wheel Heat Control Module Procedure Disconnect the electrical connections. |
