Right Rear of Engine Components (LUK)

Items
1: T8D Ignition Coil 4 T8D Ignition Coil 4 (LFX)T8D Ignition Coil 4 (LKW)T8D Ignition Coil 4 (LUK)
2: T8C Ignition Coil 3 T8C Ignition Coil 3 (LFX)T8C Ignition Coil 3 (LKW)T8C Ignition Coil 3 (LUK)
3: T8B Ignition Coil 2 T8B Ignition Coil 2 (LFX)T8B Ignition Coil 2 (LKW)T8B Ignition Coil 2 (LUK)
4: T8A Ignition Coil 1 T8A Ignition Coil 1 (LFX)T8A Ignition Coil 1 (LKW)T8A Ignition Coil 1 (LUK)
5: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LKW)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LUK)
6: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LKW)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LUK)
7: Q29C Secondary Air Injection Solenoid Valve - Cylinder 1/2 (LUK with NU6) Q29C Secondary Air Injection Solenoid Valve - Cylinder 1/2 (LUK with NU6)
8: Q29D Secondary Air Injection Solenoid Valve - Cylinder 3/4 (LUK with NU6) Q29D Secondary Air Injection Solenoid Valve - Cylinder 3/4 (LUK with NU6)
9: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LKW)B52A Heated Oxygen Sensor 1 (LUK)
10: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 (LKW)B52B Heated Oxygen Sensor 2 (LUK)
11: G17 Heater Coolant Pump (HP6) G17 Heater Coolant Pump (HP6)
12: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LFX)B34 Engine Coolant Temperature Sensor (LKW)B34 Engine Coolant Temperature Sensor (LUK)
13: B23C Camshaft Position Sensor - Bank 2 Exhaust (LFX) B23C Camshaft Position Sensor - Bank 2 Exhaust (LFX)
14: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LFX)Q12 Evaporative Emission Purge Solenoid Valve (LKW)Q12 Evaporative Emission Purge Solenoid Valve (LUK)

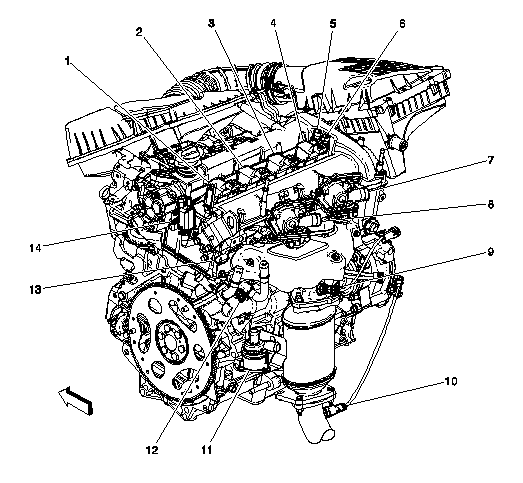

Fig 1: Right Rear of Engine Components (LUK)

Courtesy of GENERAL MOTORS COMPANY
