Right Rear of Engine Components (LKW)

Items
1: Q38 Throttle Body Q38 Throttle Body
2: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LFX)G18 High Pressure Fuel Pump (LKW)G18 High Pressure Fuel Pump (LUK)
3: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LFX)Q12 Evaporative Emission Purge Solenoid Valve (LKW)Q12 Evaporative Emission Purge Solenoid Valve (LUK)
4: Q25 Rocker Arm Actuator (LKW) Q25 Rocker Arm Actuator (LKW)
5: T8D Ignition Coil 4 T8D Ignition Coil 4 (LFX)T8D Ignition Coil 4 (LKW)T8D Ignition Coil 4 (LUK)
6: T8C Ignition Coil 3 T8C Ignition Coil 3 (LFX)T8C Ignition Coil 3 (LKW)T8C Ignition Coil 3 (LUK)
7: T8B Ignition Coil 2 T8B Ignition Coil 2 (LFX)T8B Ignition Coil 2 (LKW)T8B Ignition Coil 2 (LUK)
8: T8A Ignition Coil 1 T8A Ignition Coil 1 (LFX)T8A Ignition Coil 1 (LKW)T8A Ignition Coil 1 (LUK)
9: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LKW)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LUK)
10: B75C Multifunction Intake Air Sensor (LFX or LKW) B75C Multifunction Intake Air Sensor (LKW or LFX)
11: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LKW)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LUK)
12: B37C Engine Oil Pressure Sensor - Cylinder Head (LKW) B37C Engine Oil Pressure Sensor - Cylinder Head (LKW)
13: G13 Generator G13 Generator X1 (LFX)G13 Generator X1 (LKW)G13 Generator X2 (LFX)G13 Generator X2 (LKW)
14: B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LFX)B35 Engine Oil Level Switch (LKW)
15: G21 Secondary Air Injection Pump G21 Secondary Air Injection Pump (LFX or LKW with NU6)G21 Secondary Air Injection Pump (LUK with NU6)
16: M64 Starter Motor M64 Starter Motor X1 (LFX)M64 Starter Motor X1 (LKW)M64 Starter Motor X1 (LUK)M64 Starter Motor X2 (LFX)M64 Starter Motor X2 (LKW)M64 Starter Motor X2 (LUK)
17: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LFX or LKW)B74 Manifold Absolute Pressure Sensor (LUK)

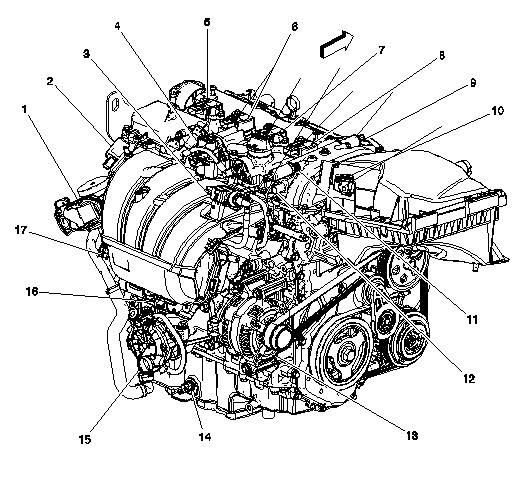

Fig 1: Right Rear of Engine Components (LKW)

Courtesy of GENERAL MOTORS COMPANY
