Fuel Tank Filler Pipe Replacement
Fuel Tank Filler Pipe Replacement

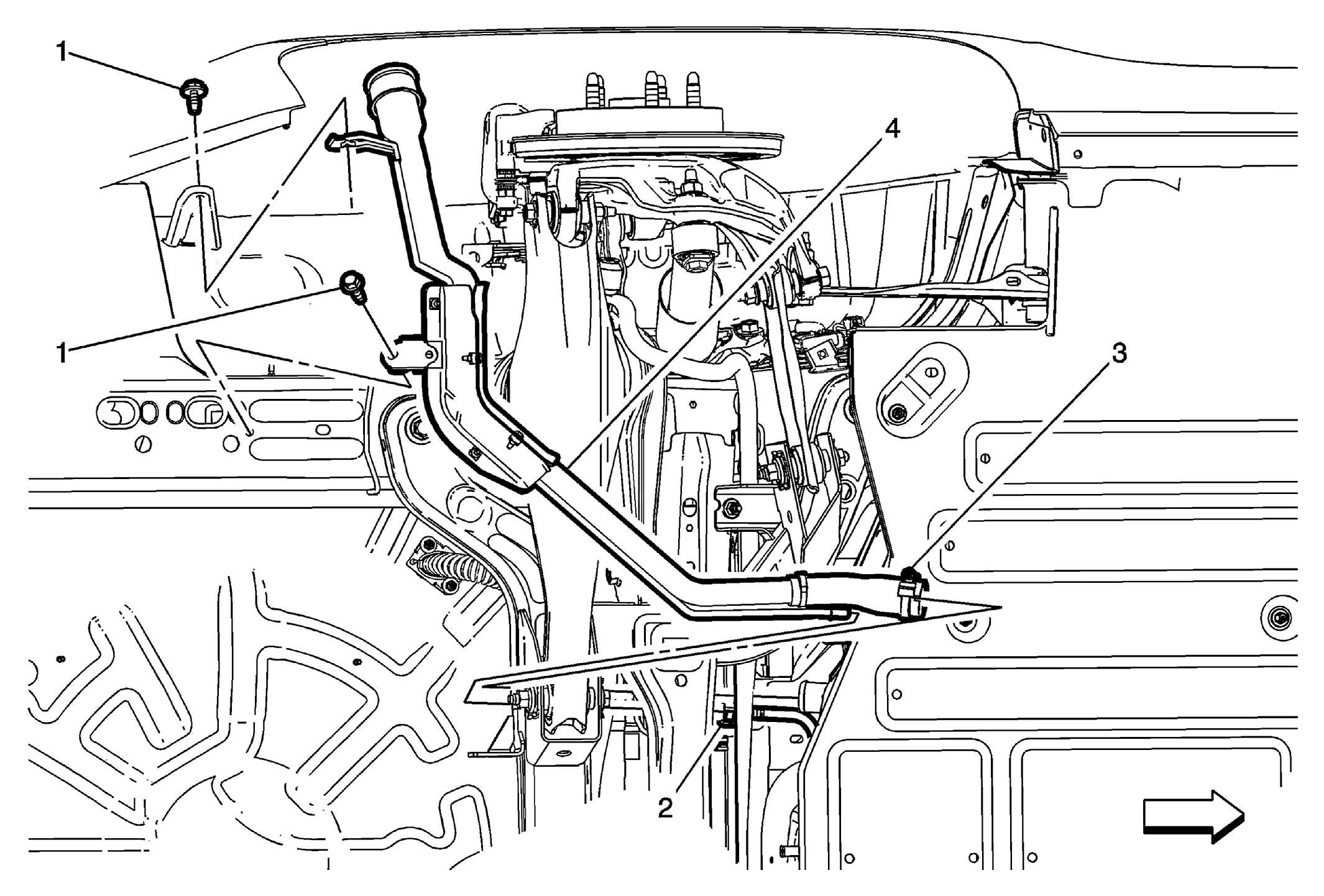

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the filler pipe housing. Refer to Fuel Tank Filler Pipe Housing Replacement . |
|
| 1 | Filler Pipe Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Rear Evaporative Emission Pipe Procedure Disconnect the quick connect fitting. Refer to Plastic Collar Quick Connect Fitting Service . |
| 3 | Hose Clamp |
| 4 | Fuel Tank Filler Pipe |
