Air Cleaner Inlet Duct Replacement

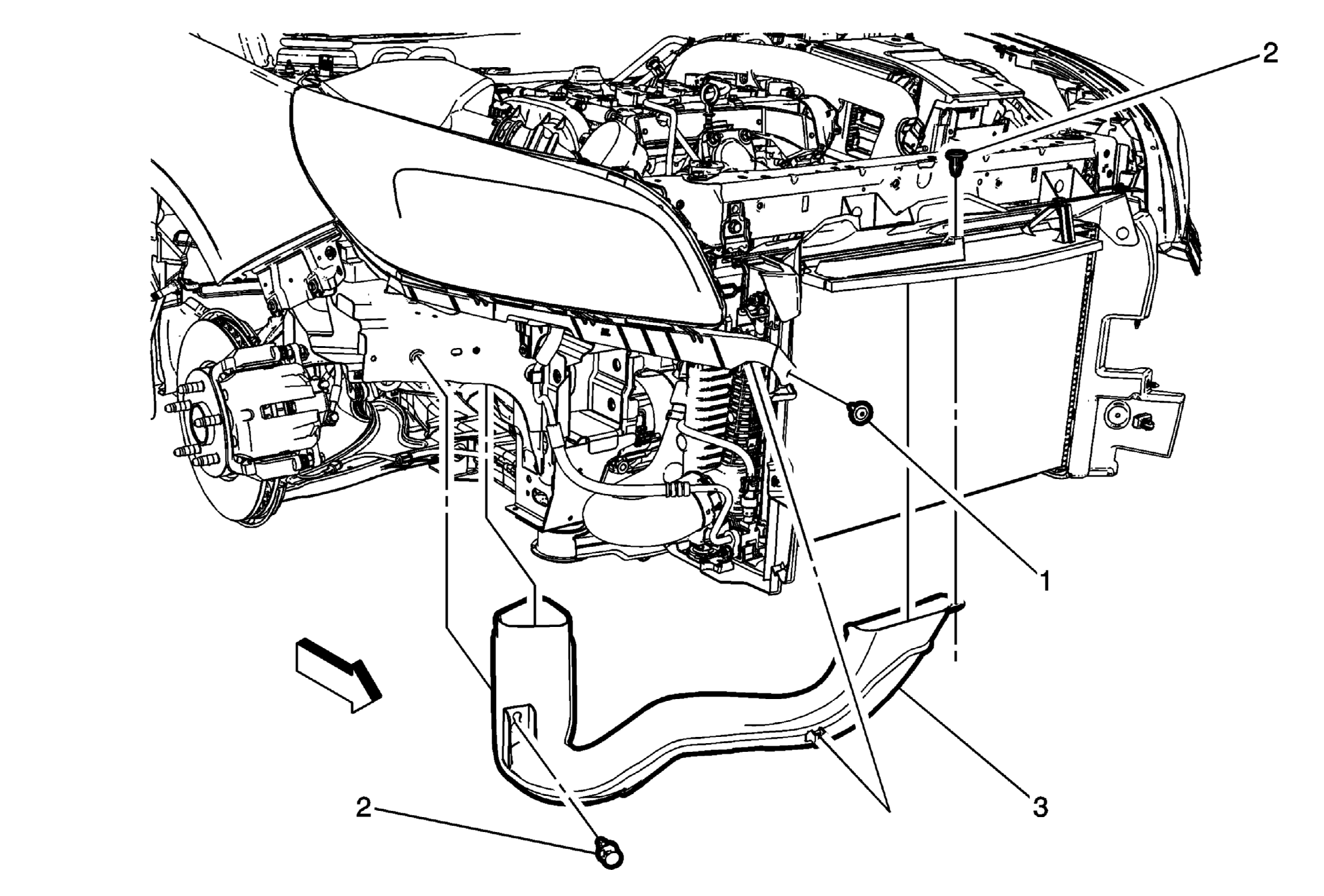

Fig 1: Air Cleaner Inlet Duct (LTG)
GM2868559Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Inlet Duct Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  2. Remove the right side front bumper fascia reinforcement. Refer to Front Bumper Fascia Reinforcement Replacement - Right Side .
1 Air Cleaner Inlet Duct Fastener (If Equipped)
CAUTION:

Refer to Fastener Caution .

2 Air Cleaner Inlet Duct Retainer (Qty: 2)
3 Air Cleaner Inlet Duct
NOTE:

Remove the front intake air duct and deflector together as an assembly. Separate after the assembly is removed from the vehicle.
