Installation Procedure

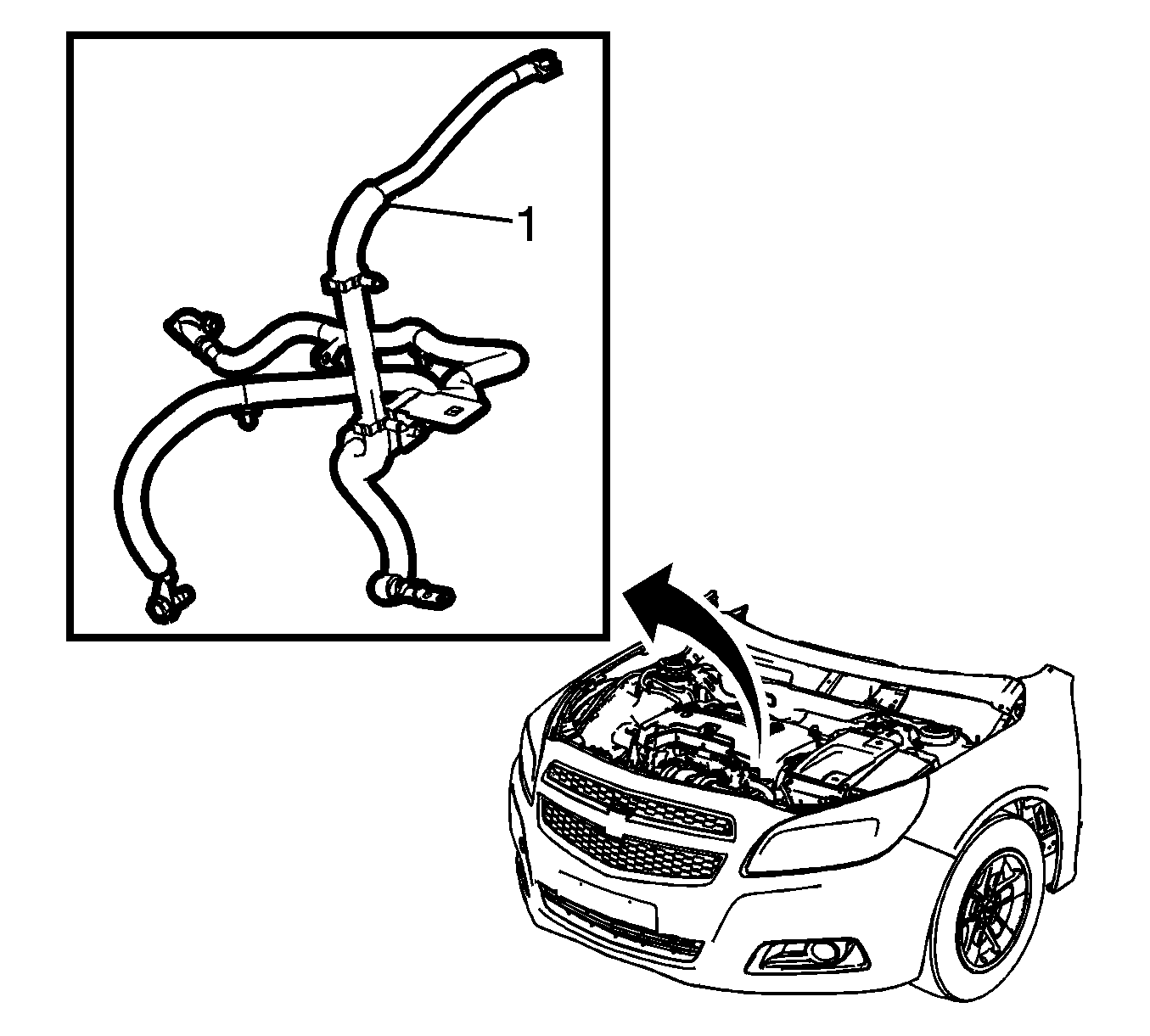

Fig 1: Battery Positive And Negative Cable

Courtesy of GENERAL MOTORS COMPANY

Install the positive and negative cable to the engine compartment noting the routing.
Raise the vehicle.

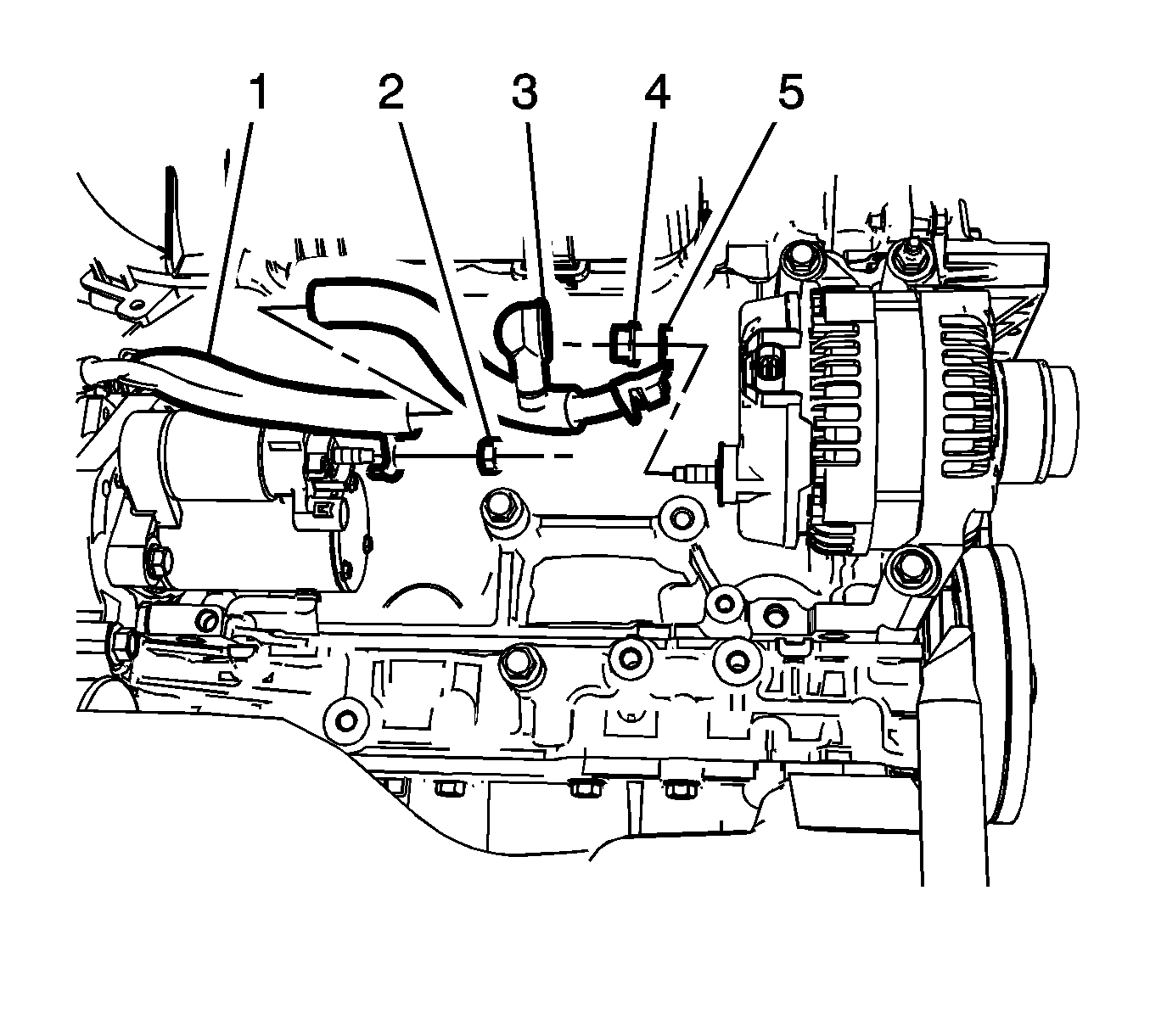

Fig 2: Starter Solenoid Fastener

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the battery positive cable terminal (5) and fastener (4) to the back of the generator. Tighten to 15 (11 lb ft).
Install the protective boot (3) to the positive cable stud on the back of the generator.
Install the battery positive cable (1) to the starter solenoid and tighten the fastener (2) to 10 (89 lb in).
Lower the vehicle.

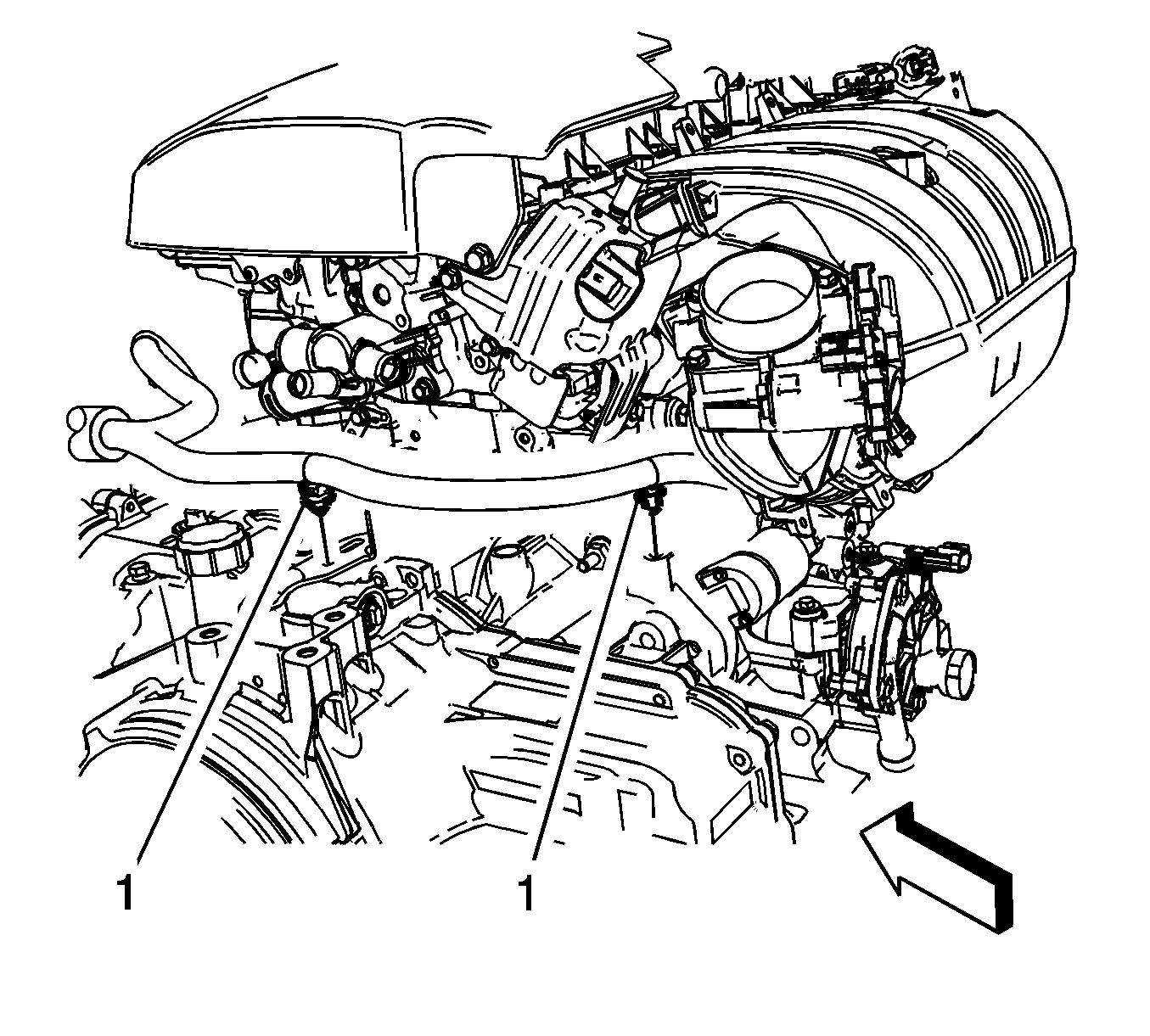

Fig 3: Battery Positive And Negative Cable Retainers

Courtesy of GENERAL MOTORS COMPANY

Install the battery positive and negative cable retainers (1), to the transmission shift cable bracket.

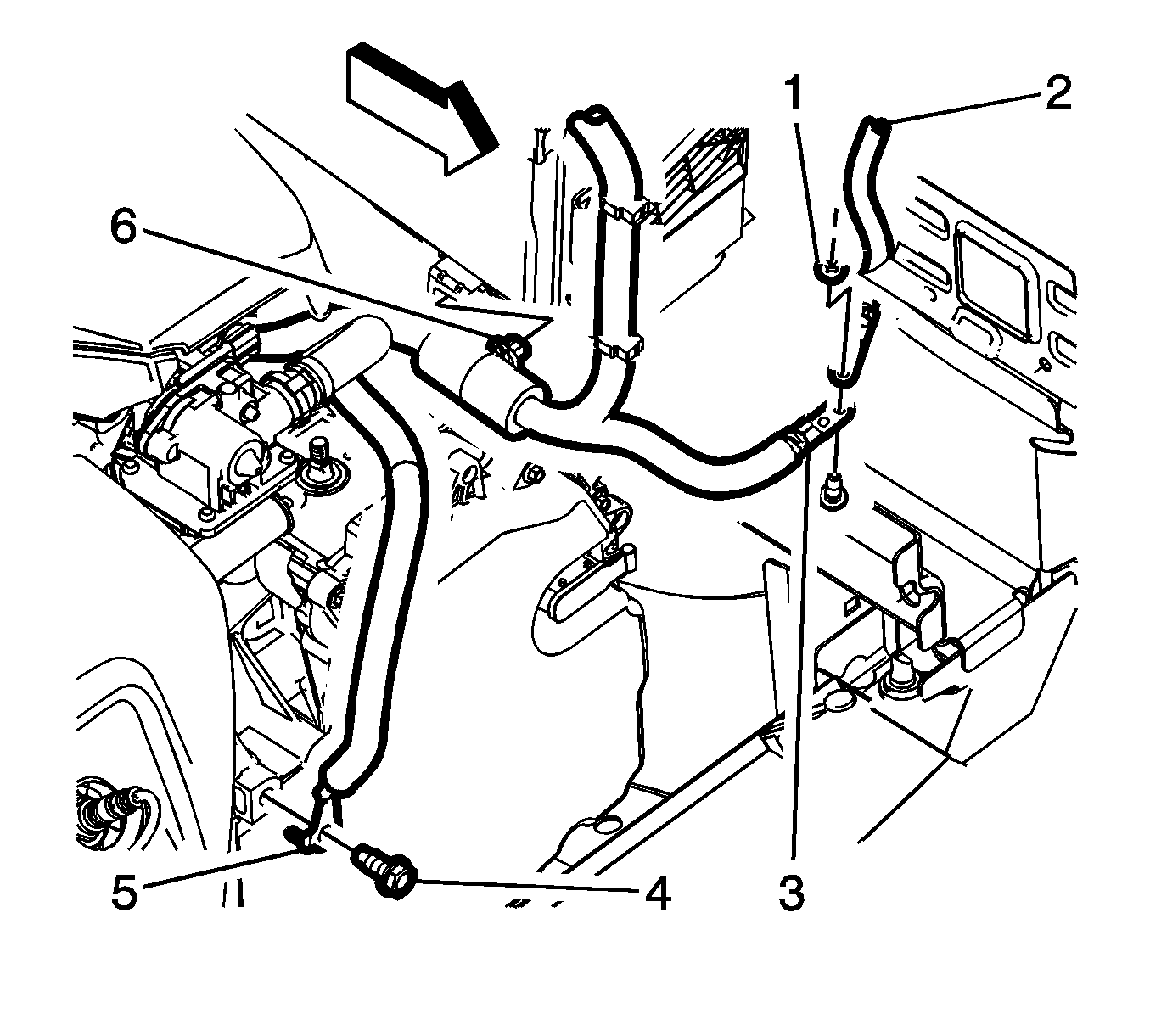

Fig 4: Battery Negative Fastener

Courtesy of GENERAL MOTORS COMPANY

Install the battery positive and negative cable retainer (6), to the battery tray bracket
.Install the battery negative cable terminal (5), to the transmission, and tighten the fastener (4) to 25 (18 lb ft).
Install the battery positive and negative cable ground terminal (3) and the battery negative cable (2) to the frame stud. Tighten the fastener (1) to 12 (106 lb in).

Fig 5: Positive Battery Cable Terminal, Nut And Fuse Block Cover

Courtesy of GENERAL MOTORS COMPANY

Install the battery positive cable terminal and fastener (2), to the battery fuse block. Tighten to 12 N.m (106 lb in).
Close the battery fuse block cover (1).
Install the secondary air injection pump, if equipped. Refer to Secondary Air Injection Pump Replacement .
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
