Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  3. Remove the secondary air injection pump inlet hose, if equipped. Refer to Secondary Air Injection Pump Inlet Hose Replacement .
  4. Remove the drive belt. Refer to Drive Belt Replacement .
  5. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    6. Fig 1: Protective Boot And Battery Positive Cable Fastener
    GM2814562Courtesy of GENERAL MOTORS COMPANY
  6. Remove the protective boot (1) and the battery positive cable fastener (2).
  7. Remove the battery positive cable terminal (3) and the engine harness connector (4) .
    8. Fig 2: Lower Generator Mounting Fastener
    GM2814561Courtesy of GENERAL MOTORS COMPANY
  8. Remove the lower generator mounting fastener (2).
    9. Fig 3: Upper Generator Mounting Fasteners
    GM2814560Courtesy of GENERAL MOTORS COMPANY
  9. Remove the upper generator mounting fasteners (1) and secondary air injection pump inlet hose bracket, if equipped.

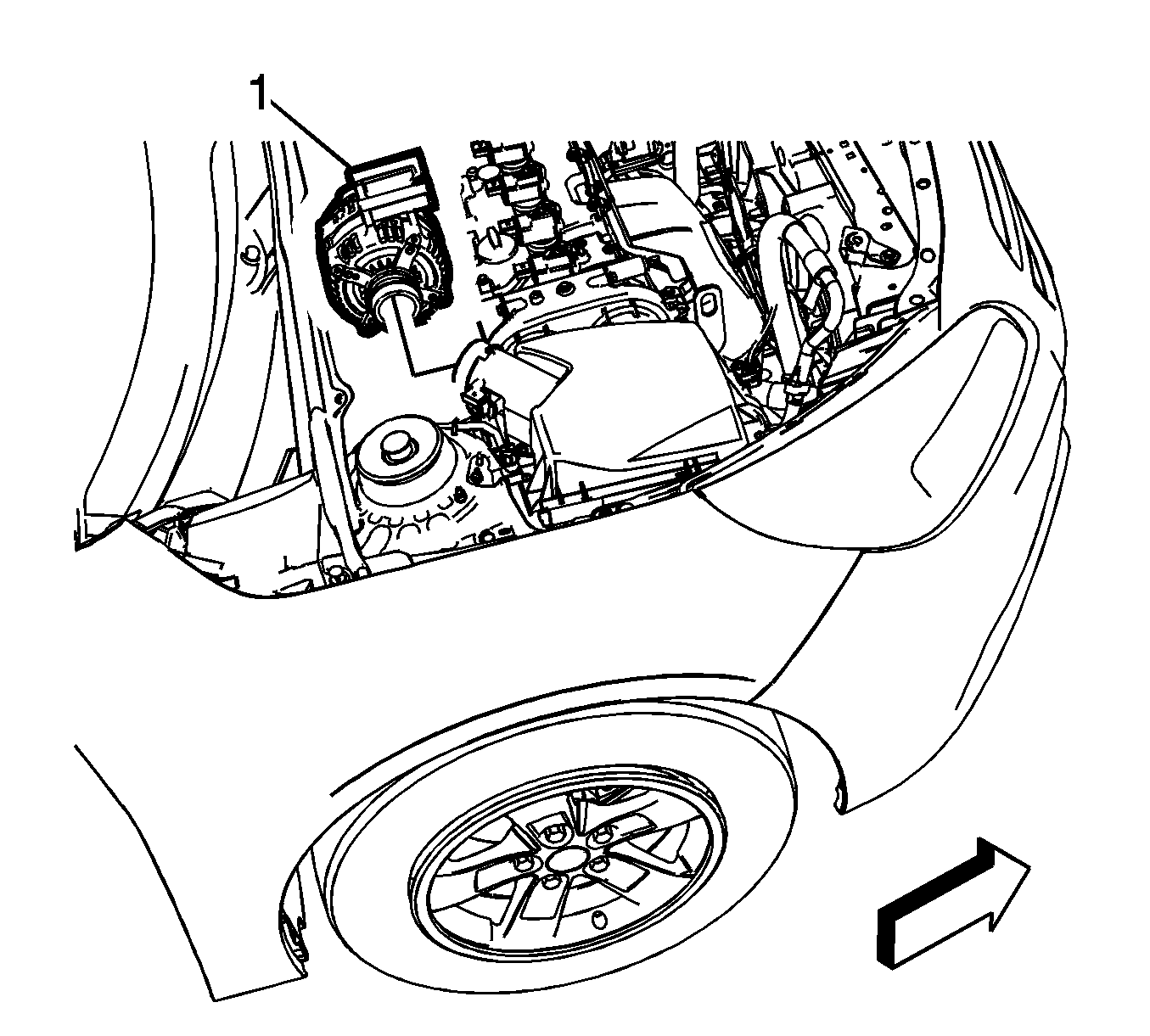

    10. Fig 4: Generator
    GM2814558Courtesy of GENERAL MOTORS COMPANY
  10. Remove the generator (1) from the engine compartment.
