Installation Procedure

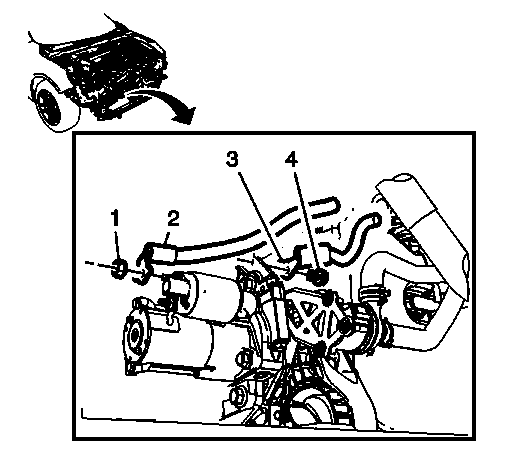

Fig 1: Battery Positive Cable

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the negative battery cable ground terminal (3) to the engine block and tighten the fastener (4) to 25 N.m (18 lb ft).
Install the battery positive cable terminal (2) to the starter solenoid and tighten the fastener (1) to 10 N.m (89 lb in).

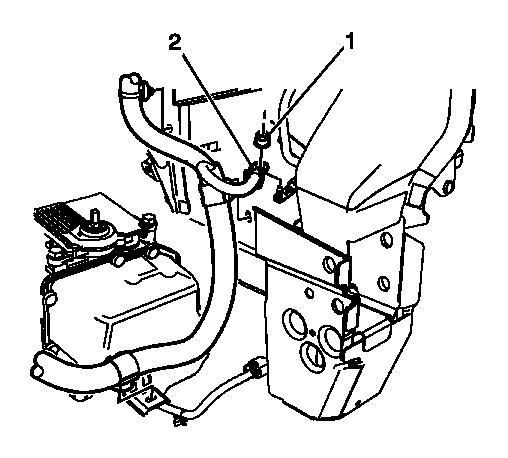

Fig 2: Battery Negative Nut And Terminal

Courtesy of GENERAL MOTORS COMPANY

Install the battery negative cable terminal (2) to the frame rail stud and tighten the fastener (1) to 12 (106 lb in).

Fig 3: Positive Battery Cable Terminal, Nut And Fuse Block Cover

Courtesy of GENERAL MOTORS COMPANY

Install the positive battery cable terminal and fastener (2) to the battery fuse block. Tighten to 12 N.m (106 lb in).
Close the battery fuse block cover (1) and install the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
