Installation Procedure

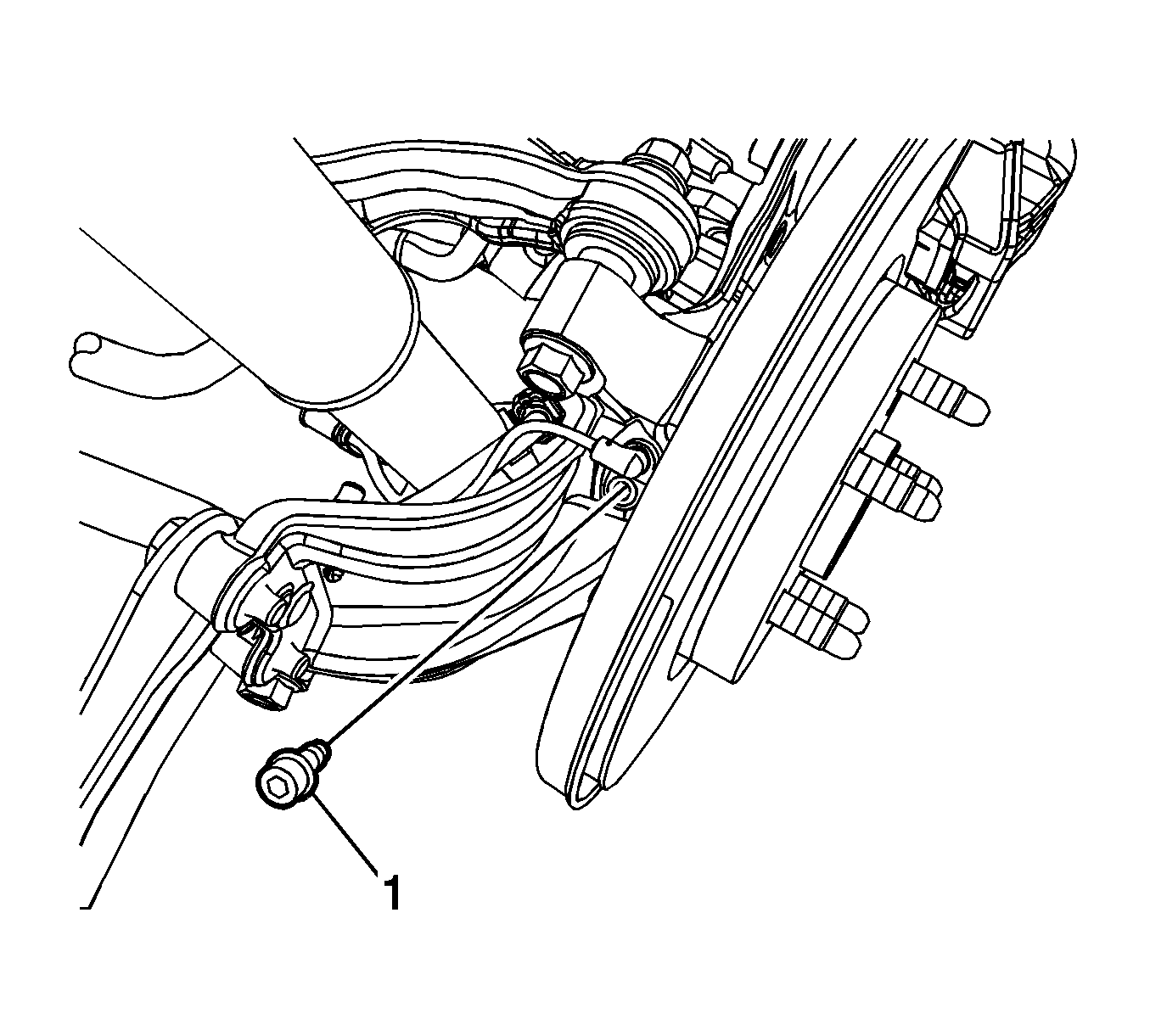

    Fig 1: Wheel Speed Sensor Bolt
    GM2330166Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor to the rear suspension knuckle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).

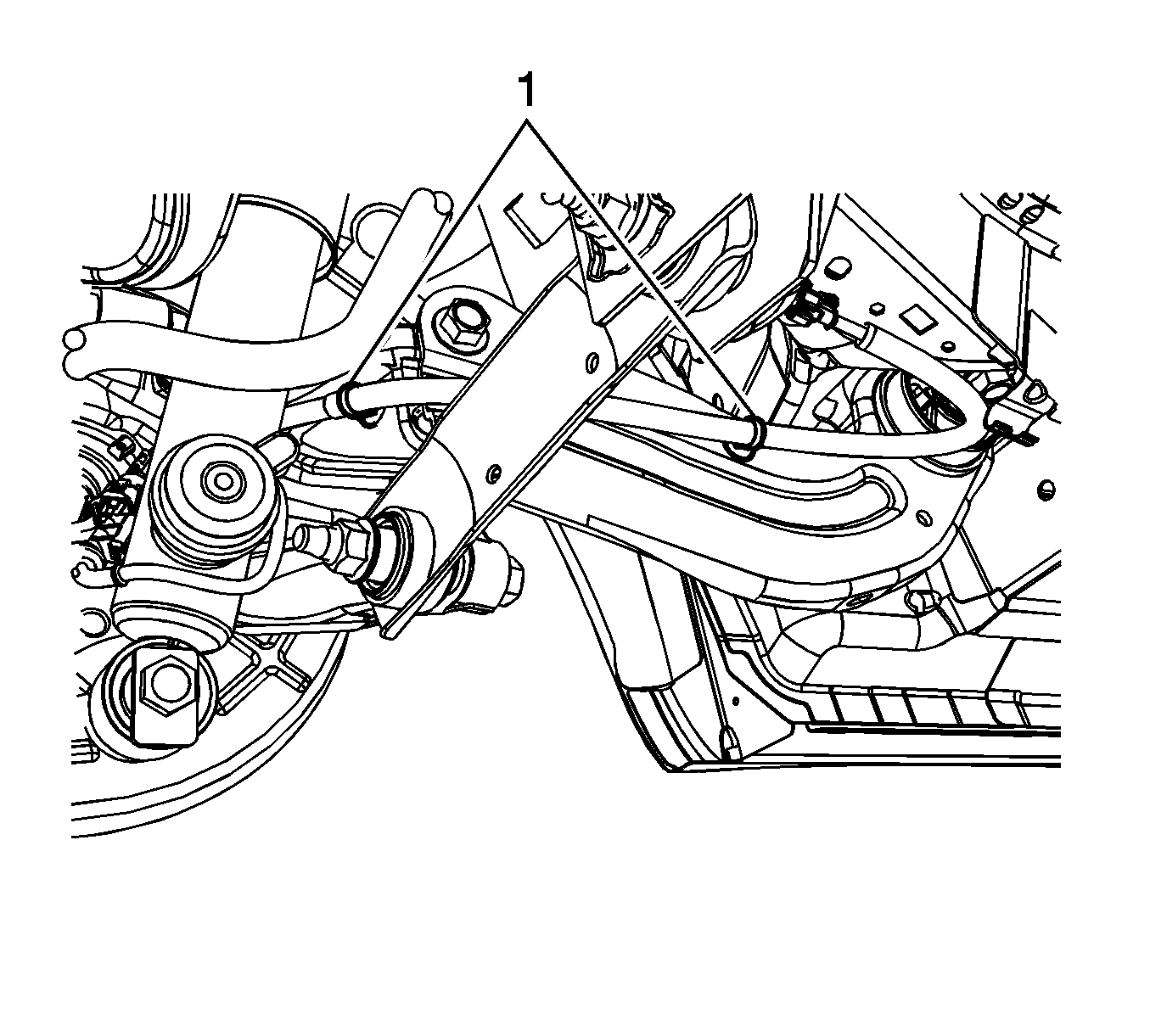

    3. Fig 2: Wheel Speed Sensor Harness Clips And Rear Suspension Bracket
    GM2330165Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel speed sensor harness clips (1) to the rear suspension bracket.

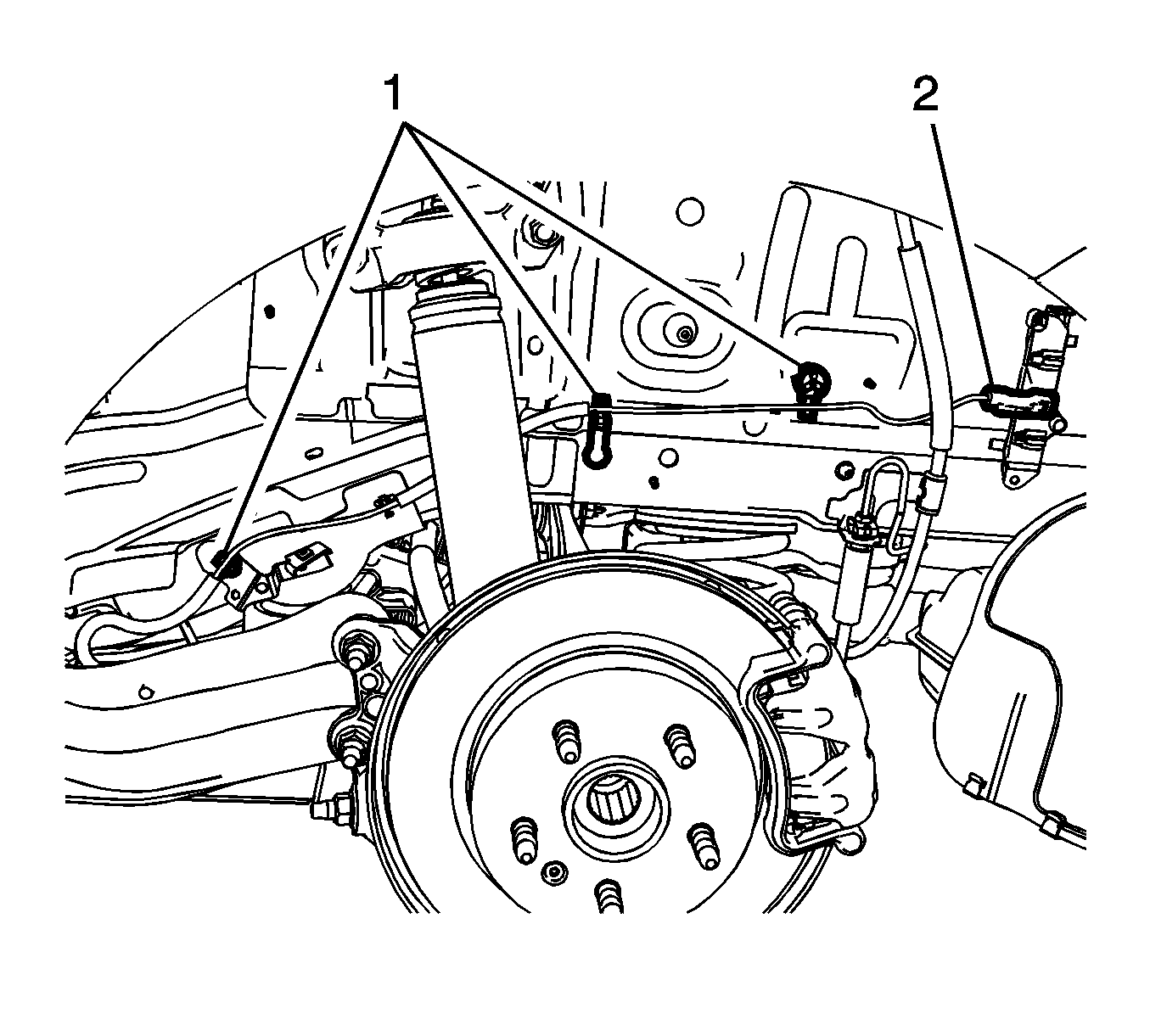

    4. Fig 3: Wheel Speed Sensor Harness Clips
    GM2867831Courtesy of GENERAL MOTORS COMPANY
  4. Install the wheel speed sensor harness clips (1) to the wheelhouse panel.
  5. Connect the wheel speed sensor harness electrical connector (2) and install the connector retainer to the bracket on the wheelhouse panel.
  6. Install the rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .
  7. Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Perform the Diagnostic System Check - Vehicle .
