Driver Seat Adjuster Memory Switch Replacement

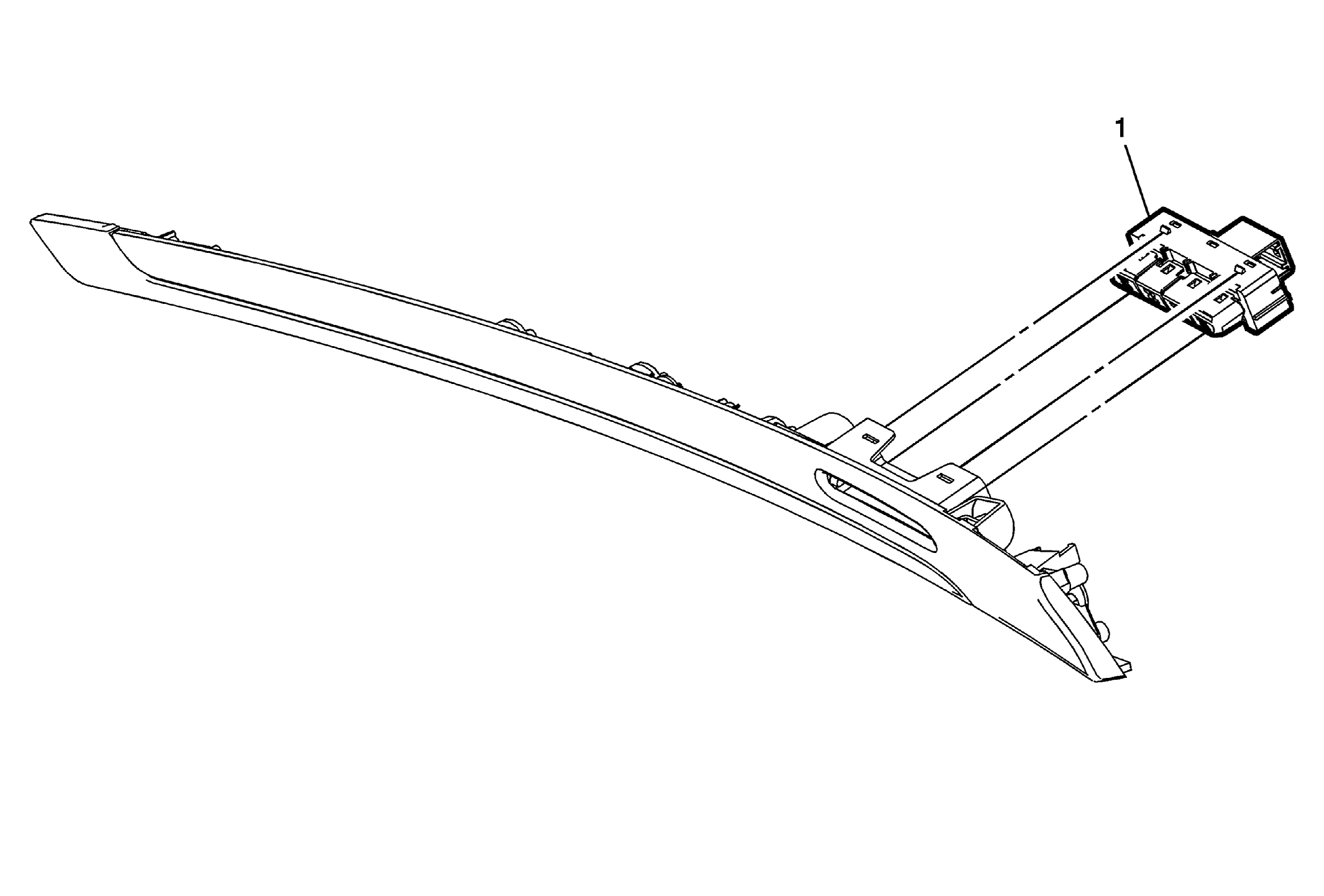

Fig 1: Driver Seat Adjuster Memory Switch
GM3553711Courtesy of GENERAL MOTORS COMPANY
Driver Seat Adjuster Memory Switch Replacement

Callout Component Name

Preliminary Procedure

  1. Remove front side door trim. Refer to Front Side Door Trim Replacement .
  2. Remove the front side door trim panel finish panel applique. Refer to Front Side Door Trim Panel Finish Panel Applique Replacement .
1 Driver Seat Adjuster Memory Switch

Procedure

  1. Disconnect the electrical connector.
  2. Release the integral tabs on the top and bottom of the switch and remove from the front side door trim panel finish panel applique.
